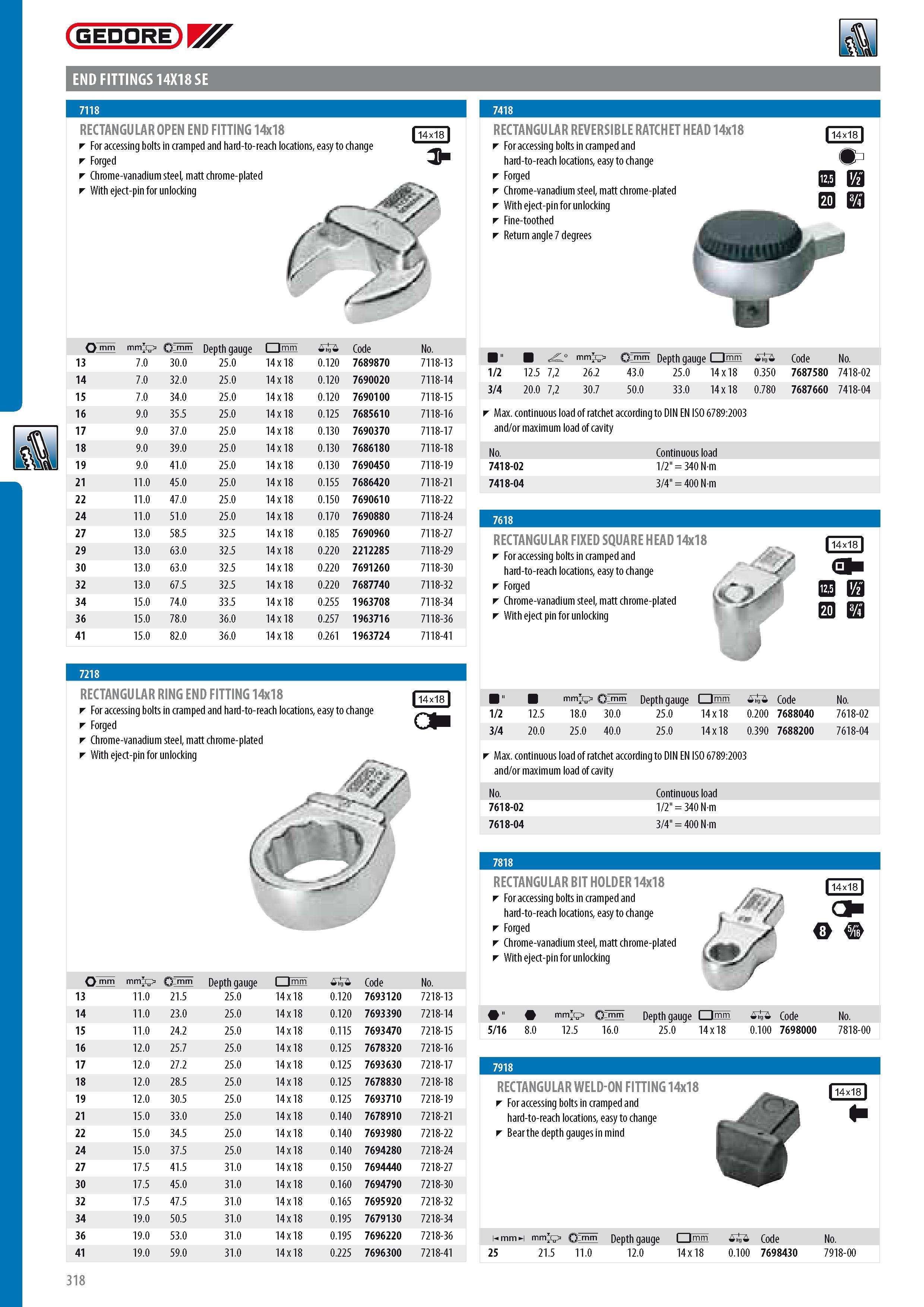

GEDORE END FITTINGS 14X18 SE RECTANGULAR OPEN END FITTING 14x18 For accessing bolts in cramped and hard-to-reach locations easy to change Forged Chrome-vanadium steel matt chrome-plated With eject-pin for unlocking 114x18 RECTANGULAR REVERSIBLE RATCHET HEAD 14x18 For accessing bolts in cramped and hard-to-reach locations easy to change Forged Chrome-vanadium steel matt chrome-plated With eject-pin for unlocking Fine-toothed Return angle 7 degrees 4 2 O d ED M mm 4 &mm Depth gauge 1 lmm 0 Code No. 13 7.0 30.0 25.0 14 x 18 0.120 7689870 7118-13 14 7.0 32.0 25.0 14 x 18 0.120 7690020 7118-14 15 7.0 34.0 25.0 14 x 18 0.120 7690100 7118-15 16 9.0 35.5 25.0 14 x 18 0.125 7685610 7118-16 17 9.0 37.0 25.0 14 x 18 0.130 7690370 7118-17 18 9.0 39.0 25.0 14 x 18 0.130 7686180 7118-18 19 9.0 41.0 25.0 14 x 18 0.130 7690450 7118-19 21 11.0 45.0 25.0 14 x 18 0.155 7686420 7118-21 22 11.0 47.0 25.0 14 x 18 0.150 7690610 7118-22 24 11.0 51.0 25.0 14 x 18 0.170 7690880 7118-24 27 13.0 58.5 32.5 14 x 18 0.185 7690960 7118-27 29 13.0 63.0 32.5 14 x 18 0.220 2212285 7118-29 30 13.0 63.0 32.5 14 x 18 0.220 7691260 7118-30 32 13.0 67.5 32.5 14 x 18 0.220 7687740 7118-32 34 15.0 74.0 33.5 14 x 18 0.255 1963708 7118-34 36 15.0 78.0 36.0 14 x 18 0.257 1963716 7118-36 41 15.0 82.0 36.0 14 x 18 0.261 1963724 7118-41 " A 1 2 12.5 72 3 4 20.0 72 4 26.2 30.7 43.0 50.0 Depth gauge I lmm 25.0 14 x 18 33.0 14 x 18 No. 7418-02 7418-04 Continuous load 1 2" 340 Nm 3 4" 400 Nm RECTANGULAR FIXED SQUARE HEAD 14x18 For accessing bolts in cramped and hard-to-reach locations easy to change Forged Chrome-vanadium steel matt chrome-plated With eject pin for unlocking 0 0.350 0.780 Code No. 7687580 7418-02 7687660 7418-04 Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and or maximum load of cavity 114x18 G (2) d ED M 7118 7418 7618 RECTANGULAR RING END FITTING 14x18 For accessing bolts in cramped and hard-to-reach locations easy to change Forged Chrome-vanadium steel matt chrome-plated With eject-pin for unlocking 4 4 m 4 &mm Depth gauge 1 lmm 0 Code No. 13 11.0 21.5 25.0 14 x 18 0.120 7693120 7218-13 14 11.0 23.0 25.0 14 x 18 0.120 7693390 7218-14 15 11.0 24.2 25.0 14 x 18 0.115 7693470 7218-15 16 12.0 25.7 25.0 14 x 18 0.125 7678320 7218-16 17 12.0 27.2 25.0 14 x 18 0.125 7693630 7218-17 18 12.0 28.5 25.0 14 x 18 0.125 7678830 7218-18 19 12.0 30.5 25.0 14 x 18 0.125 7693710 7218-19 21 15.0 33.0 25.0 14 x 18 0.140 7678910 7218-21 22 15.0 34.5 25.0 14 x 18 0.140 7693980 7218-22 24 15.0 37.5 25.0 14 x 18 0.140 7694280 7218-24 27 17.5 41.5 .0 31 14 x 18 0.150 7694440 7218-27 30 17.5 45.0 31.0 14 x 18 0.160 7694790 7218-30 32 17.5 47.5 31.0 14 x 18 0.165 7695920 7218-32 34 19.0 50.5 31.0 14 x 18 0.195 7679130 7218-34 36 19.0 53.0 31.0 14 x 18 0.195 7696220 7218-36 41 19.0 59.0 31.0 14 x 18 0.225 7696300 7218-41 " 4 &mm Depth gauge 1 lmm 0 Code No. 1 2 12.5 18.0 30.0 25.0 14 x 18 0.200 7688040 7618-02 3 4 20.0 25.0 40.0 25.0 14 x 18 0.390 7688200 7618-04 Max. continuous load of ratchet according to DIN EN ISO 6789:2003 and or maximum load of cavity No. 7618-02 7618-04 Continuous load 1 2" 340 Nm 3 4" 400 Nm RECTANGULAR BIT HOLDER 14x18 For accessing bolts in cramped and hard-to-reach locations easy to change Forged Chrome-vanadium steel matt chrome-plated With eject-pin for unlocking 4 6 h j " 4 &mm Depth gauge 1 lmm -i0 Code No. 5 16 8.0 12.5 16.0 25.0 14 x 18 0.100 7698000 7818-00 7918 RECTANGULAR WELD-ON FITTING 14x18 For accessing bolts in cramped and hard-to-reach locations easy to change Bear the depth gauges in mind 114x18 25 4 21.5 j-jr 11.0 Depth gauge 12.0 I lmm 14 x 18 0 Code No. 0.100 7698430 7918-00 7218 7818 318
