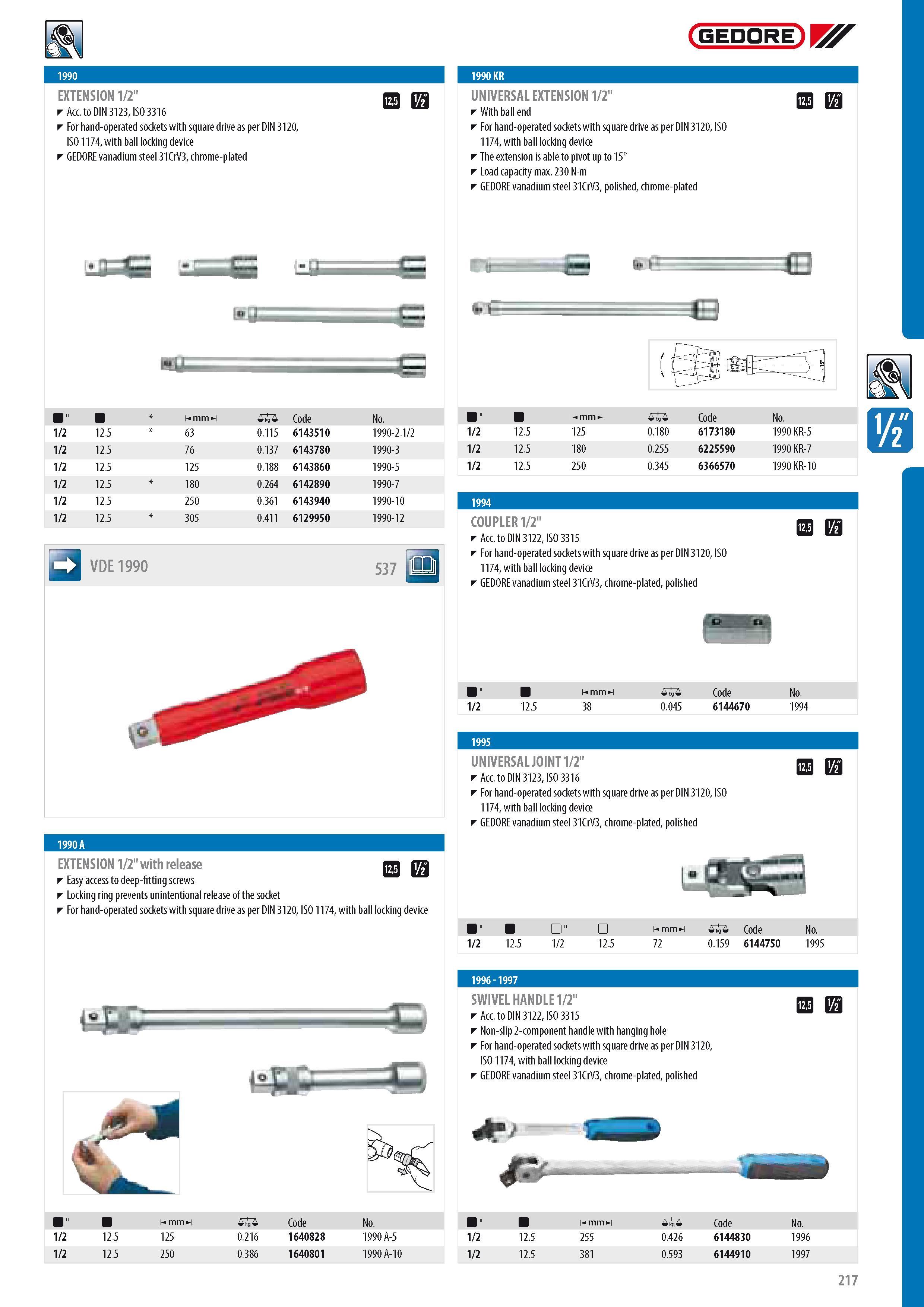

219 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.217

Каталог GEDORE 2014 Слесарный инструмент Стр. 217 0219 ENG Lab2u

GEDORE EXTENSION 1 2" Acc. to DIN 3123 ISO 3316 For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 chrome-plated o d UNIVERSAL EXTENSION 1 2" With ball end For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device The extension is able to pivot up to 15 Load capacity max. 230 Nm GEDORE vanadium steel 31CrV3 polished chrome-plated o d 11 m mm ml 0 Code No. 11 m mm ml 0 Code No. 1 2 12.5 63 0.115 6143510 1990-2.1 2 1 2 12.5 125 0.180 6173180 1990 KR-5 1 2 12.5 76 0.137 6143780 1990-3 1 2 12.5 180 0.255 6225590 1990 KR-7 1 2 12.5 125 0.188 6143860 1990-5 1 2 12.5 250 0.345 6366570 1990 KR-10 1 2 12.5 180 0.264 6142890 1990-7 1 2 12.5 250 0.361 6143940 1990-10 1994 1 2 12.5 305 0.411 6129950 1990-12 COUPLER 1 2" VDE1990 d Acc. to DIN 3122 ISO 3315 For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 chrome-plated polished o d 11 m -i0 Code No. 1 2 12.5 38 0.045 6144670 1994 1995 UNIVERSAL JOINT 1 2" Acc. to DIN 3123 ISO 3316 For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 chrome-plated polished o d o d EXTENSION 1 2" with release Easy access to deep-fitting screws Locking ring prevents unintentional release of the socket For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device 11 " m mm ml -i0 Code No. 1 2 12.5 1 2 12.5 72 0.159 6144750 1995 1996 - 1997 SWIVEL HANDLE 1 2" Acc. to DIN 3122 ISO 3315 Non-slip 2-component handle with hanging hole For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 chrome-plated polished o d " m 0 Code No. " m mm m 0 Code No. 1 2 12.5 125 0.216 1640828 1990 A-5 1 2 12.5 255 0.426 6144830 1996 1 2 12.5 250 0.386 1640801 1990 A-10 1 2 12.5 81 3 0.593 6144910 1997 1990 KR 1990 217
