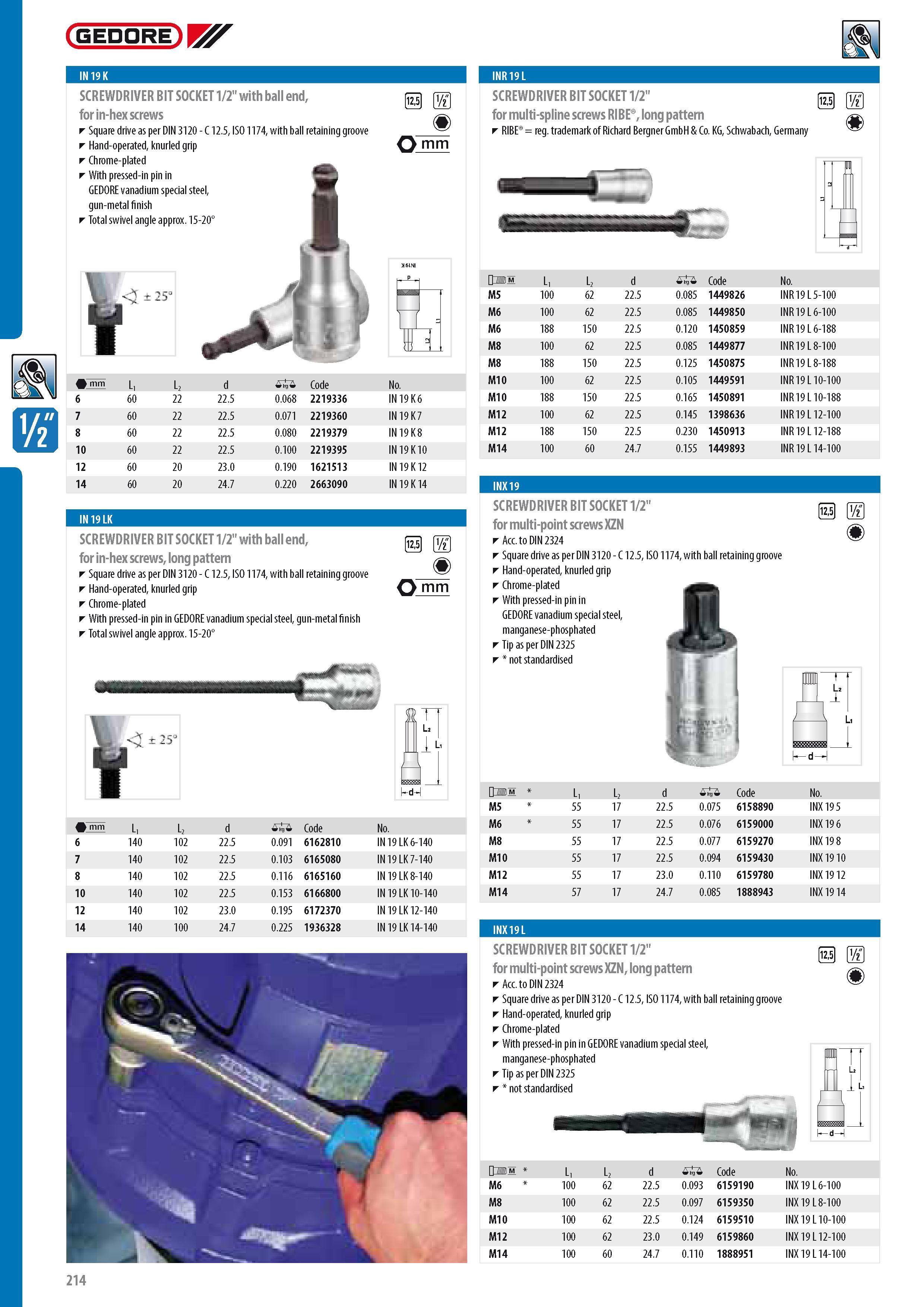

SCREWDRIVER BIT SOCKET 1 2" with ball end for in-hex screws Square drive as per DIN 3120 - C 12.5 ISO 1174 with ball retaining groove Hand-operated knurled grip Chrome-plated With pressed-in pin in GEDORE vanadium special steel gun-metal finish Total swivel angle approx. 15-20 O T Q mm mm L1 L2 d 0 Code No. 6 60 22 22.5 0.068 2219336 IN 19 K 6 7 60 22 22.5 0.071 2219360 IN 19 K 7 8 60 22 22.5 0.080 2219379 IN 19 K 8 10 60 22 22.5 0.100 2219395 IN 19K 10 12 60 20 23.0 0.190 1621513 IN 19 K 12 14 60 20 24.7 0.220 2663090 IN 19 K 14 SCREWDRIVER BIT SOCKET 1 2" with ball end for in-hex screws long pattern Square drive as per DIN 3120 - C 12.5 ISO 1174 with ball retaining groove Hand-operated knurled grip Chrome-plated With pressed-in pin in GEDORE vanadium special steel gun-metal finish Total swivel angle approx. 15-20 (D Q mm kcH mm L1 L2 d 0 Code No. 6 140 102 22.5 0.091 6162810 IN 19 LK 6-140 7 140 102 22.5 0.103 6165080 IN 19LK7-140 8 140 102 22.5 0.116 6165160 IN 19 LK 8-140 10 140 2 0 22.5 0.153 6166800 IN 19 LK 10-140 12 140 102 23.0 0.195 6172370 IN 19 LK 12-140 14 140 100 24.7 0.225 1936328 IN 19 LK 14-140 SCREWDRIVER BIT SOCKET 1 2" for multi-spline screws RIBE long pattern RIBE reg. trademark of Richard Bergner GmbH & Co. KG Schwabach Germany O T m L1 L2 d 0 Code No. 100 62 22.5 0.085 1449826 INR 9L5-100 100 62 22.5 0.085 1449850 INR 9 L 6-100 188 150 22.5 0.120 1450859 INR 9 L 6-188 100 62 22.5 0.085 1449877 INR 9 L 8-100 188 150 22.5 0.125 1450875 INR 9 L 8-188 100 62 22.5 0.105 1449591 INR 9 L 10-100 188 150 22.5 0.165 1450891 INR 9 L 10-188 100 62 22.5 0.145 1398636 INR 9L12-100 188 150 22.5 0.230 1450913 INR 9L12-188 100 60 24.7 0.155 1449893 INR 9L14-100 M5 M6 M6 M8 M8 M10 M10 M12 M12 M14 SCREWDRIVER BIT SOCKET 1 2" for multi-point screws XZN Acc. to DIN 2324 Square drive as per DIN 3120 - C 12.5 ISO 1174 with ball retaining groove Hand-operated knurled grip Chrome-plated With pressed-in pin in GEDORE vanadium special steel manganese-phosphated Tip as per DIN 2325 not standardised O T a Lz L1 L2 d 0 Code No. 55 17 22.5 0.075 6158890 INX 19 5 55 17 22.5 0.076 6159000 INX 19 6 55 17 22.5 0.077 6159270 INX 19 8 55 17 22.5 0.094 6159430 INX 19 10 55 17 23.0 0.110 6159780 INX 19 12 57 17 24.7 0.085 1888943 INX 19 14 + M5 M6 M8 M10 M12 M14 SCREWDRIVER BIT SOCKET 1 2" for multi-point screws XZN long pattern Acc. to DIN 2324 Square drive as per DIN 3120 - C 12.5 ISO 1174 with ball retaining groove Hand-operated knurled grip Chrome-plated With pressed-in pin in GEDORE vanadium special steel manganese-phosphated Tip as per DIN 2325 not standardised O T 1.2 1l I cM ' L1 L2 d 0 Code No. M6 100 62 22.5 0.093 6159190 INX 9 L 6-100 M8 100 62 22.5 0.097 6159350 INX 9 L 8-100 M10 100 62 22.5 0.124 6159510 INX 9 L 10-100 M12 100 62 23.0 0.149 6159860 INX 19 L 12-100 M14 100 60 24.7 0.110 1888951 INX 9L14-100 IN 19 K INR 19 L IN 19 LK 214
