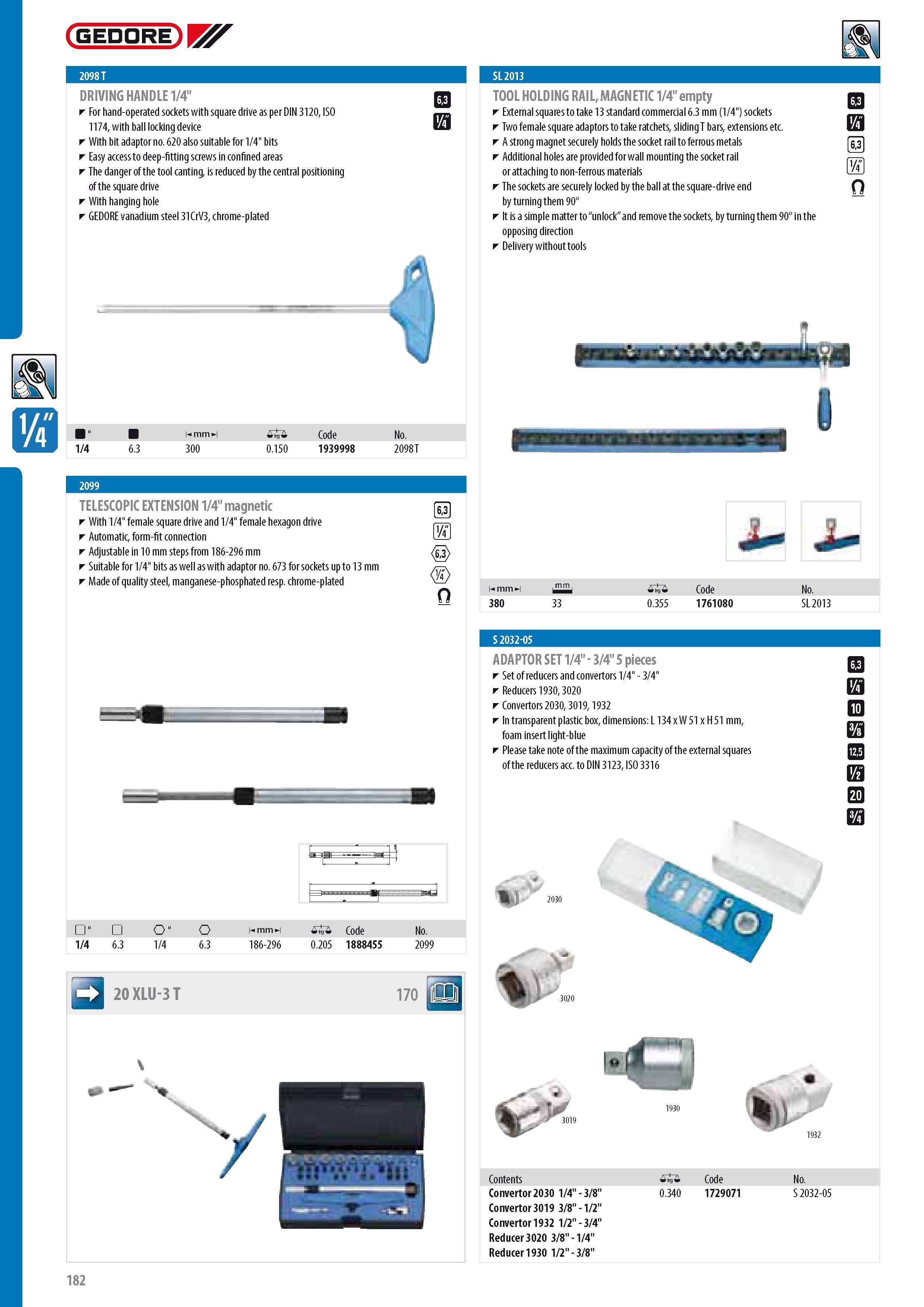

184 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.182

Каталог GEDORE 2014 Слесарный инструмент Стр. 182 0184 ENG Lab2u

GEDORE DRIVING HANDLE 1 4" For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device With bit adaptor no. 620 also suitable for 1 4" bits Easy access to deep-fitting screws in confined areas The danger of the tool canting is reduced by the central positioning of the square drive With hanging hole GEDORE vanadium steel 31CrV3 chrome-plated m b " m mm ml -i0 Code No. 1 4 6.3 300 0.150 1939998 2098 T 2099 TELESCOPIC EXTENSION 1 4" magnetic With 1 4" female square drive and 1 4" female hexagon drive Automatic form-fit connection Adjustable in 10 mm steps from 186-296 mm Suitable for 1 4" bits as well as with adaptor no. 673 for sockets up to 13 mm Made of quality steel manganese-phosphated resp. chrome-plated M R E Y 0 " 1 4 6.3 O" 1 4 O 6.3 m mm ml 186-296 0 Code No. 0.205 1888455 2099 J 20 XLU-3T TOOL HOLDING RAIL MAGNETIC 1 4" empty External squares to take 13 standard commercial 6.3 mm (1 4") sockets Two female square adaptors to take ratchets sliding T bars extensions etc. A strong magnet securely holds the socket rail to ferrous metals Additional holes are provided for wall mounting the socket rail or attaching to non-ferrous materials The sockets are securely locked by the ball at the square-drive end by turning them 90 It is a simple matter to "unlockand remove the sockets by turning them 90 in the opposing direction Delivery without tools m b M R 0 m . mm -i0 Code No. 380 33 0.355 1761080 SL2013 S2032-05 ADAPTOR SET 1 4" - 3 4" 5 pieces Set of reducers and convertors 1 4" - 3 4" Reducers 1930 3020 Convertors 2030 3019 1932 In transparent plastic box dimensions L 134 x W 51 x H 51 mm foam insert light-blue Please take note of the maximum capacity of the external squares of the reducers acc. to DIN 3123 ISO 3316 i m b n c o d p e i. V Contents Convertor 2030 1 4" - 3 8" Convertor 3019 3 8" - 1 2" Convertor 1932 1 2" - 3 4" Reducer 3020 3 8"- 1 4" Reducer 1930 1 2"- 3 8" 0 0.340 Code 1729071 No. S 2032-05 2030 3020 1930 3019 1932 182
