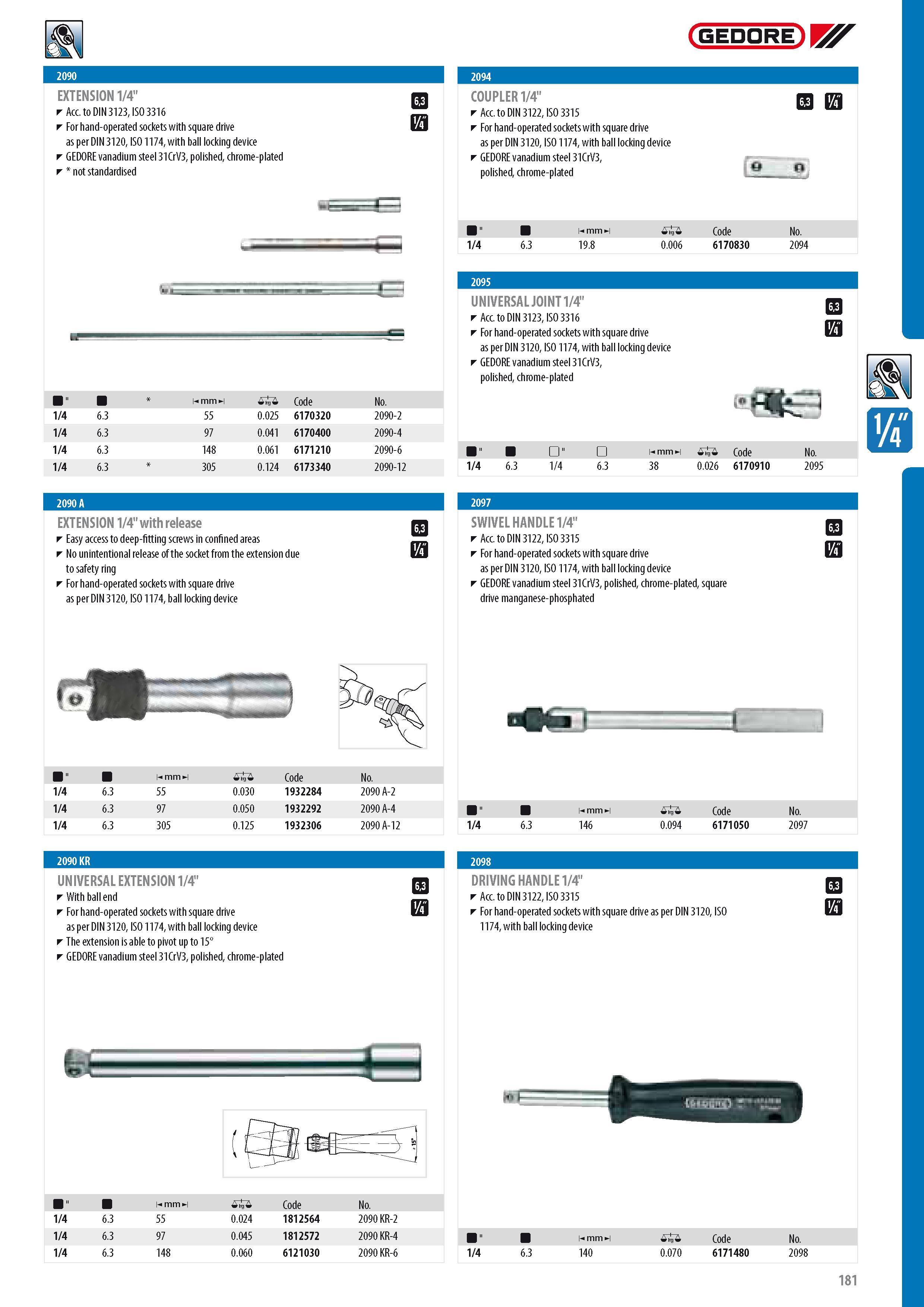

GEDORE EXTENSION 1 4" Acc. to DIN 3123 ISO 3316 For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 polished chrome-plated not standardised m b COUPLER 1 4" Acc. to DIN 3122 ISO 3315 For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 polished chrome-plated m b " m mm ml 0 Code No. 1 4 6.3 19.8 0.006 6170830 2094 2095 UNIVERSAL JOINT 1 4" Acc. to DIN 3123 ISO 3316 For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 polished chrome-plated m b " m mm m 0 Code No. 1 4 6.3 55 0.025 6170320 2090-2 1 4 .3 6. 97 0.041 6170400 2090-4 1 4 6.3 148 0.061 6171210 2090-6 " " m mm ml 1 4 6.3 305 0.124 6173340 2090-12 1 4 .3 6. 1 4 .3 6. 38 ms 0.026 61 7091 0 No. 2095 b EXTENSION 1 4" with release Easy access to deep-fitting screws in confined areas No unintentional release of the socket from the extension due to safety ring For hand-operated sockets with square drive as per DIN 3120 ISO 1174 ball locking device m b SWIVEL HANDLE 1 4" Acc. to DIN 3122 ISO 3315 For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device GEDORE vanadium steel 31CrV3 polished chrome-plated square drive manganese-phosphated m b 2090 2094 2097 " m mm ml 0 Code No. 1 4 6.3 55 0.030 1932284 2090 A-2 1 4 6.3 97 0.050 1932292 2090 A-4 " m 0 Code No. 1 4 6.3 305 0.125 1932306 2090 A-12 1 4 6.3 146 0.094 6171050 2097 UNIVERSAL EXTENSION 1 4" With ball end For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device The extension is able to pivot up to 15 GEDORE vanadium steel 31CrV3 polished chrome-plated m b DRIVING HANDLE 1 4" Acc. to DIN 3122 ISO 3315 For hand-operated sockets with square drive as per DIN 3120 ISO 1174 with ball locking device m b " m 0 Code No. 1 4 .3 6. 55 0.024 1812564 2090 KR-2 1 4 .3 6. 97 0.045 1812572 2090 KR-4 " m -i0 Code No. 1 4 .3 6. 148 0.060 6121030 2090 KR-6 1 4 .3 6. 140 0.070 6171480 2098 2090 KR 2098 181
