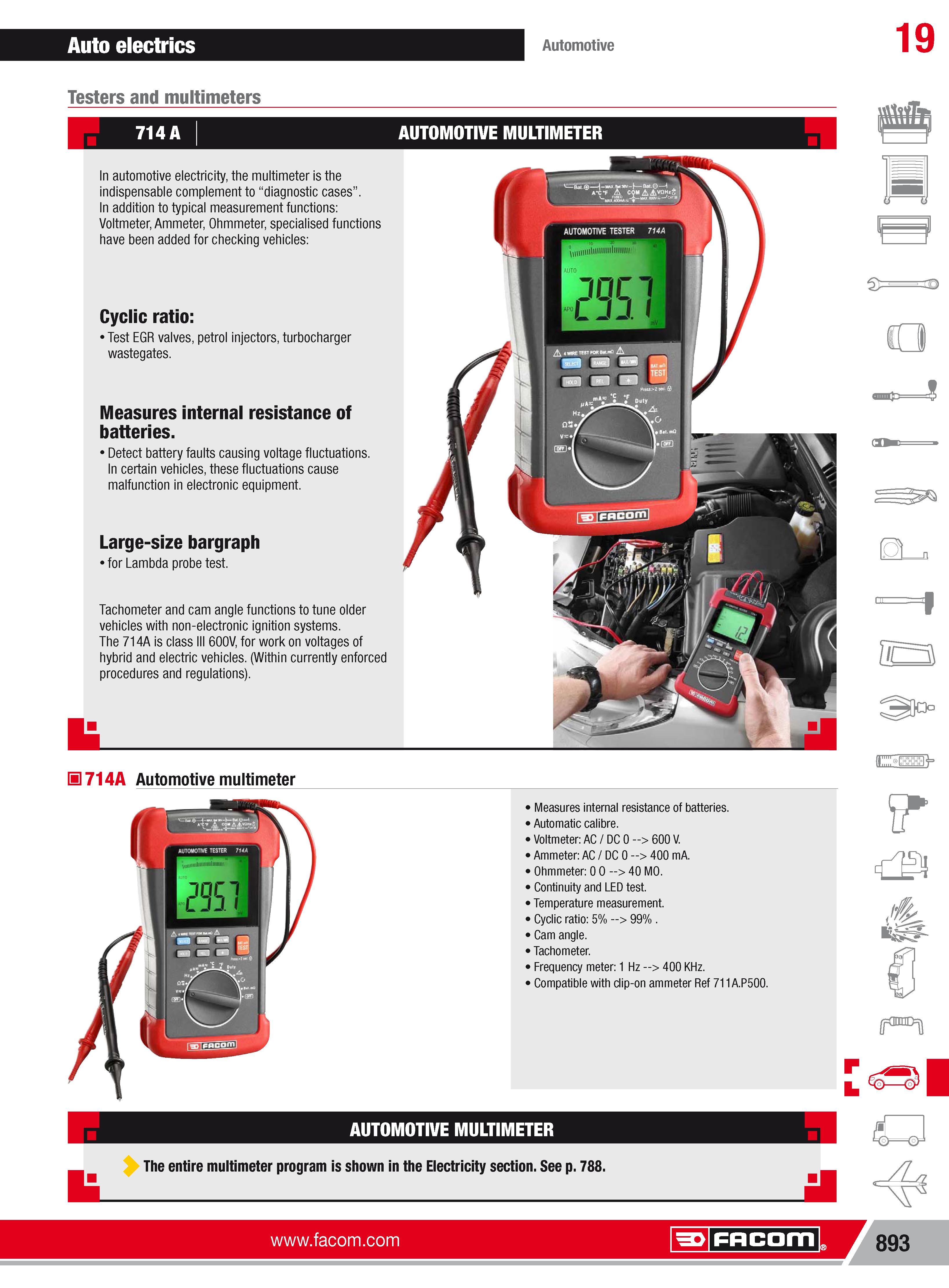

919 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.893

Каталог FACOM 2013 Инструмент Оборудование Стр. 893 0919 ENG Lab2u

Auto electrics Automotive 19 Testers and multimeters 714 A In automotive electricity the multimeter is the indispensable complement to diagnostic cases. In addition to typical measurement functions Voltmeter Ammeter Ohmmeter specialised functions have been added for checking vehicles Cyclic ratio Test EGR valves petrol injectors turbocharger wastegates. Measures internal resistance of batteries. Detect battery faults causing voltage fluctuations. In certain vehicles these fluctuations cause malfunction in electronic equipment. Large-size bargraph for Lambda probe test. Tachometer and cam angle functions to tune older vehicles with non-electronic ignition systems. The 714A is class 600V for work on voltages of hybrid and electric vehicles. (Within currently enforced procedures and regulations). AUTOMOTIVE MULTIMETER H714A Automotive multimeter Measures internal resistance of batteries. Automatic calibre. Voltmeter AC DCO 600 V. Ammeter AC DCO 400 mA. Ohmmeter 0 0 40 MO. Continuity and LED test. Temperature measurement. Cyclic ratio 5% 99% Cam angle. Tachometer. Frequency meter 1 Hz 400 KHz. Compatible with clip-on ammeter Ref 711A.P500. 3 c r. AUTOMOTIVE MULTIMETER The entire multimeter program is shown in the Electricity section. See p. 788. Facom 893
