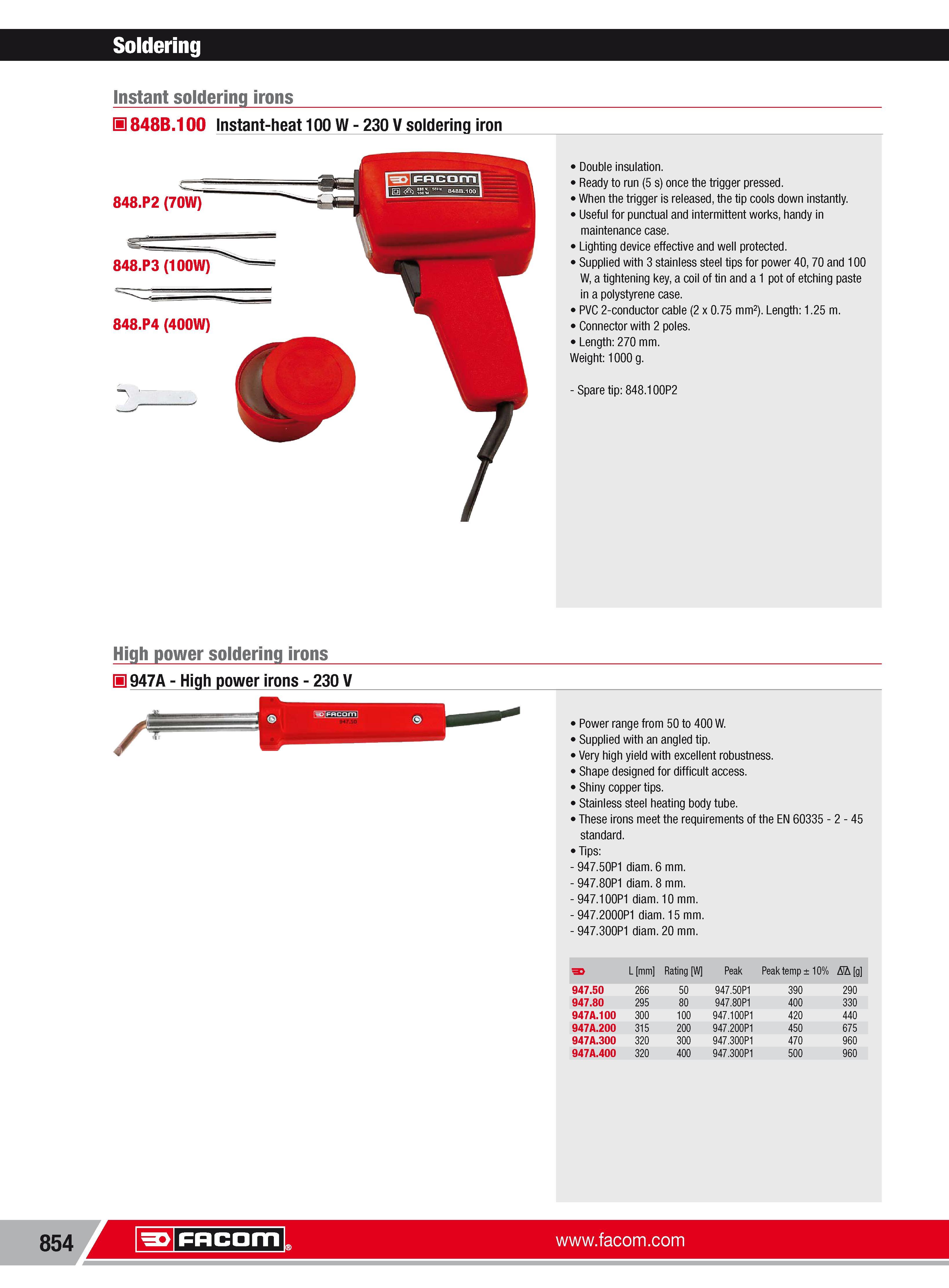

Soldering Instant soldering irons H 848B.100 Instant-heat 100 W 230 V soldering iron 848.P2 (70W) Double insulation. Ready to run (5 s) once the trigger pressed. When the trigger is released the tip cools down instantly. Useful for punctual and intermittent works handy in maintenance case. Lighting device effective and well protected. Supplied with 3 stainless steel tips for power 4070 and 100 W a tightening key a coil of tin and a 1 pot of etching paste in a polystyrene case. PVC 2-conductor cable (2 x 0.75 mm2). Length 1.25 m. Connector with 2 poles. Length 270 mm. Weight 1000 g. Spare tip 848.100P2 High power soldering irons H 947A High power irons 230 V Power range from 50 to 400 W. Supplied with an angled tip. Very high yield with excellent robustness. Shape designed for difficult access. Shiny copper tips. Stainless steel heating body tube. These irons meet the requirements of the EN 60335 2 -45 standard. Tips 947.50P1 diam. 6 mm. 947.80P1 diam. 8 mm. 947.100P1 diam. 10 mm. 947.2000P1 diam. 15 mm. 947.300P1 diam. 20 mm. L mm Rating W Peak Peaktemp10% AlA g 947.50 266 50 947.50P1 390 290 947.80 295 80 947.80P1 400 330 947A.100 300 100 947.100P1 420 440 947A.200 315 200 947.200P1 450 675 947A.300 320 300 947.300P1 470 960 854 947A.400 320 400 947.300P1 500 960 Facom
