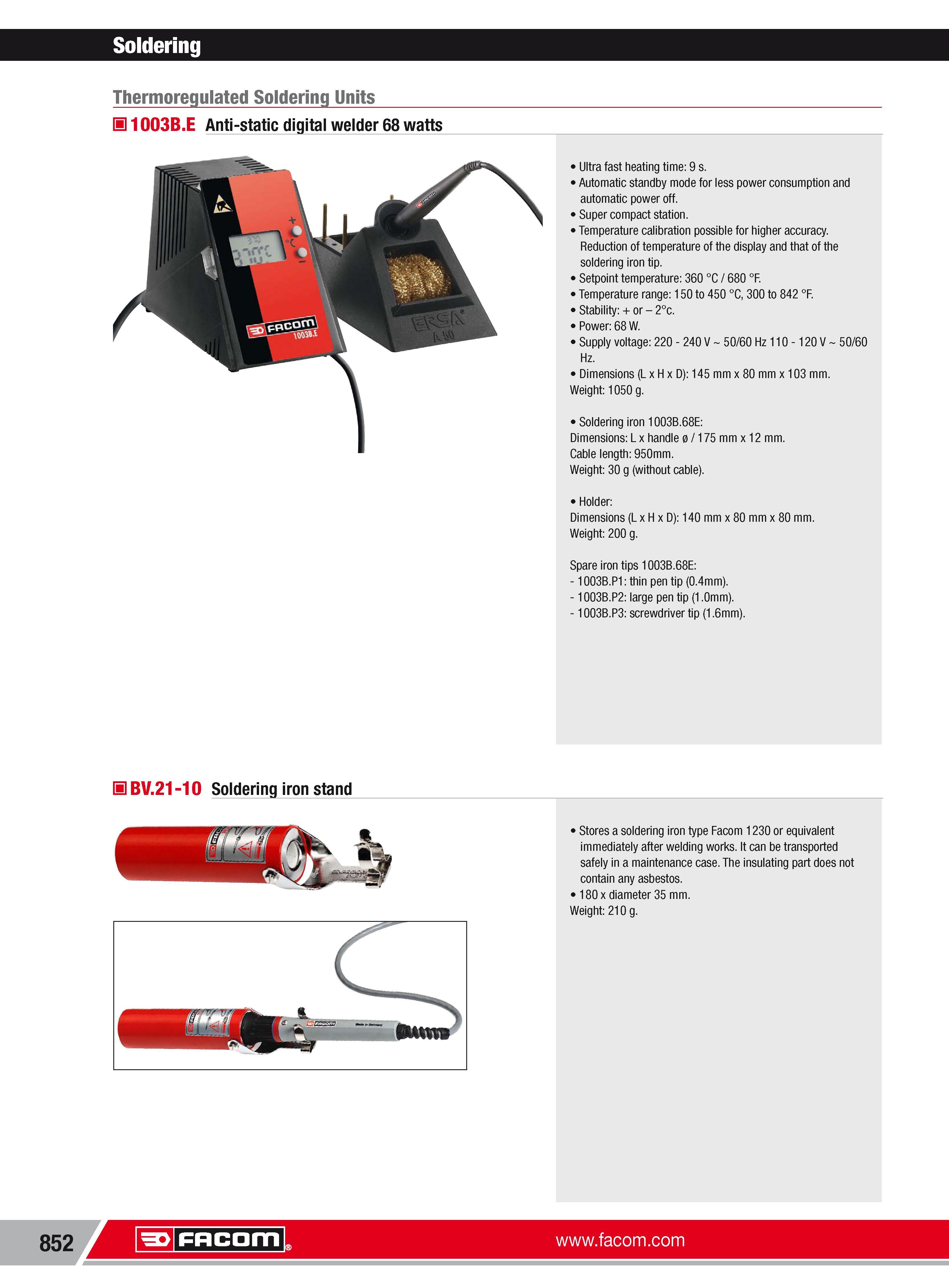

Soldering Thermoregulated Soldering Units H 1003B.E Anti-static digital welder 68 watts Ultra fast heating time 9 s. Automatic standby mode for less power consumption and automatic power off. Supercompactstation. Temperature calibration possible for higher accuracy. Reduction of temperature of the display and that of the soldering iron tip. Setpoint temperature 360 C 680 F. Temperature range 150 to 450 C 300 to 842 F. Stability + or- 2c. Power 68 W. Supply voltage 220 240 V 50 60 Hz110-120 V 50 60 Hz. Dimensions (LxHxD) 145mmx80mmx103mm. Weight 1050 g. Soldering iron 1003B.68E Dimensions L x handle 0 175mmx12 mm. Cable length 950mm. Weight 30 g (without cable). Holder Dimensions (LxHxD) 140mmx80mmx80mm. Weight 200 g. Spare iron tips 1003B.68E 1003B.P1 thin pen tip (0.4mm). 1003B.P2 large pen tip (1.0mm). 1003B.P3 screwdriver tip (1.6mm). H BV.21-10 Soldering iron stand Stores a soldering iron type Facom 1230 or equivalent immediately after welding works. It can be transported safely in a maintenance case. The insulating part does not contain any asbestos. 180xdiameter 35 mm. Weight 210 g. 852 Facom
