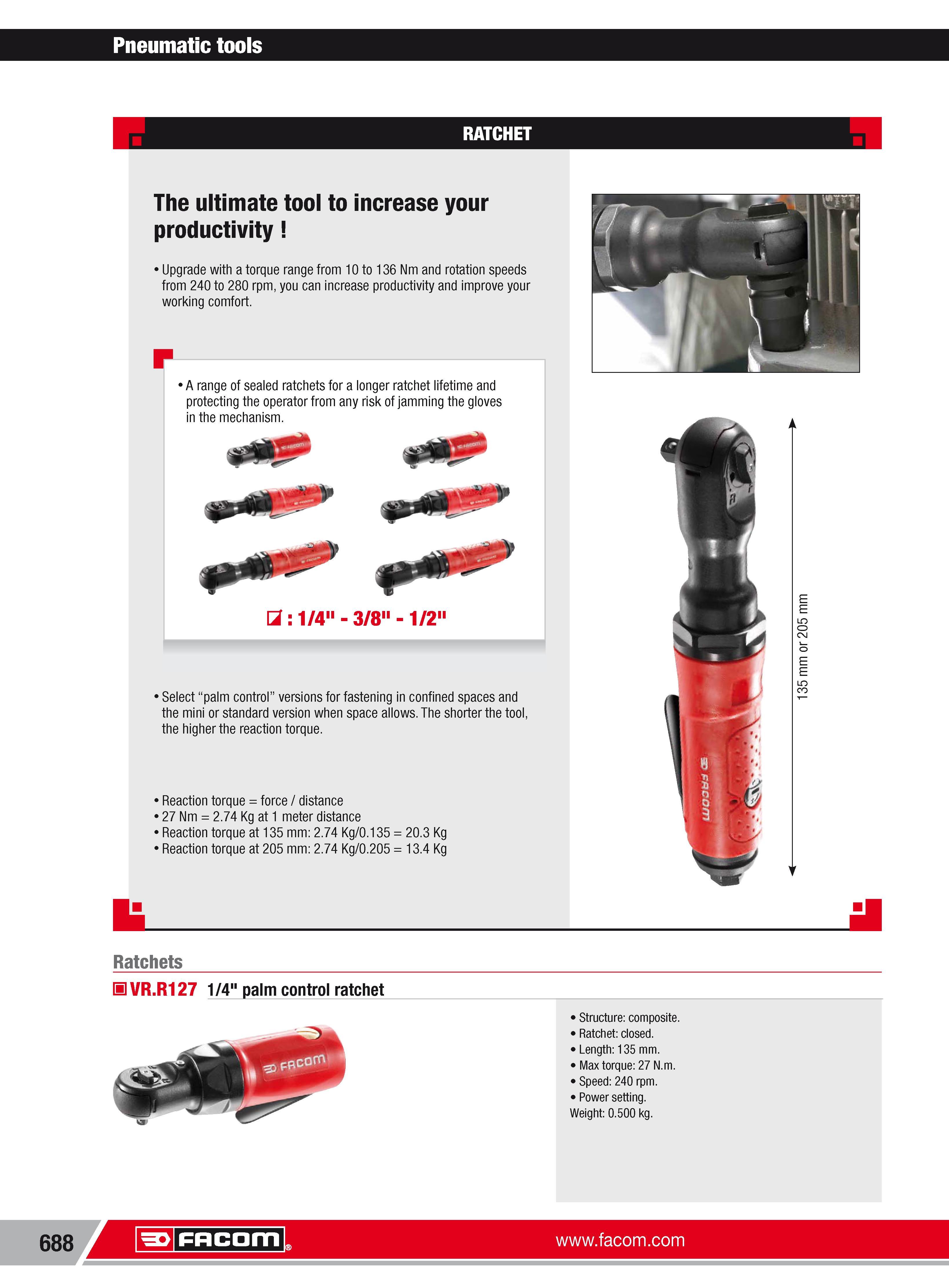

Pneumatic tools RATCHET The ultimate tool to increase your productivity Upgrade with a torque range from 10to136Nm and rotation speeds from 240 to 280 rpm you can increase productivity and improve your working comfort. A range of sealed ratchets for a longer ratchet lifetime and protecting the operatorfrom any risk ofjamming the gloves in the mechanism. a 1/4" 3/8" 1/2" Select palm control versions for fastening in confined spaces and the mini or standard version when space allows. The shorter the tool the higher the reaction torque. Reaction torque force distance 27Nm 2.74 Kg at 1 meter distance Reaction torque at 135 mm 2.74 Kg 0.135 20.3 Kg Reaction torque at 205 mm 2.74 Kg 0.205 13.4 Kg Ratchets DVR.R127 1/4" palm control ratchet Structure composite. Ratchet closed. Length 135 mm. Maxtorque 27 N.m. Speed 240 rpm. Power setting. Weight 0.500 kg. 688 Facom 135 mm or205 mm
