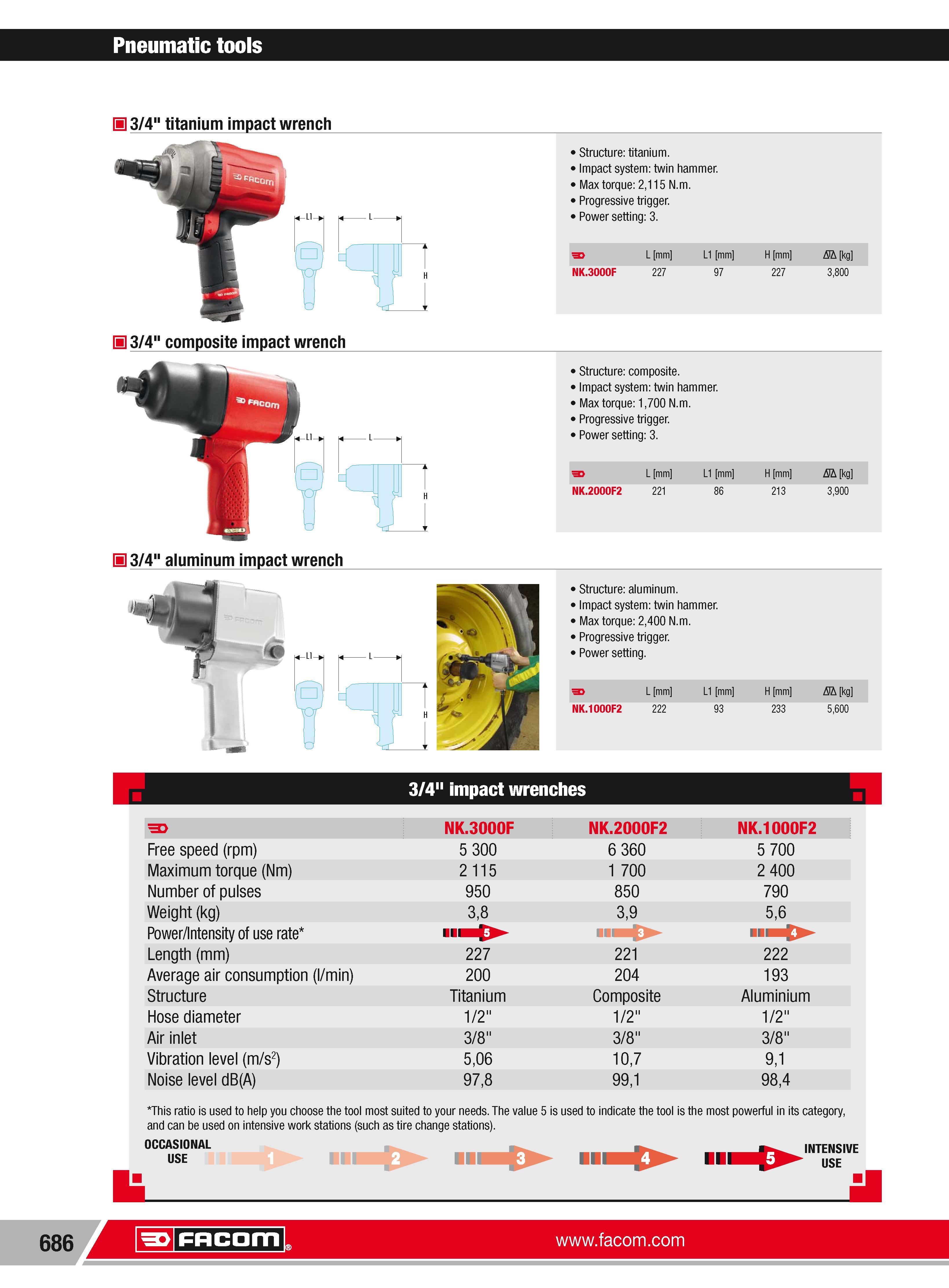

Pneumatic tools 3/4" titanium impact wrench 3/4" composite impact wrench Structure titanium. impact system twin hammer. Maxtorque 2115 N.m. Progressive trigger. Power setting 3. L mm L1 mm H mm Nh kg NK.3000F 227 97 227 3800 3/4" aluminum impact wrench Structure composite. Impact system twin hammer. Maxtorque 1700 N.m. Progressive trigger. Power setting 3. L mm L1 mm H mm Nh kg NK.2000F2 221 86 213 3900 MM Structure aluminum. Impact system twin hammer. Maxtorque 2400 N.m. Progressive trigger. Power setting. L mm L1 mm H mm Nh kg NK.1000F2 222 93 233 5600 686 3/4" impact wrenches F NK.3000F NK.2000F2 NK.1000F2 Free speed (rpm) 5 300 6 360 5 700 Maximum torque (Nm) 2 115 1 700 2 400 Number of pulses 950 850 790 Weight (kg) 38 39 56 Power Intensity of use rate Length (mm) 227 221 222 Average air consumption (l min) 200 204 193 Structure Titanium Composite Aluminium Hose diameter 1 2 1 2 1 2 Air inlet 3 8 3 8 3 8 Vibration level (m s2) 506 107 91 Noise level dB(A) 978 991 984 This ratio is used to help you choose the tool most suited to your needs. The value 5 is used to indicate the tool is the most powerful in its category and can be used on intensive work stations (such as tire change stations). OCCASIONAL INTENSIVE USE use Facom
