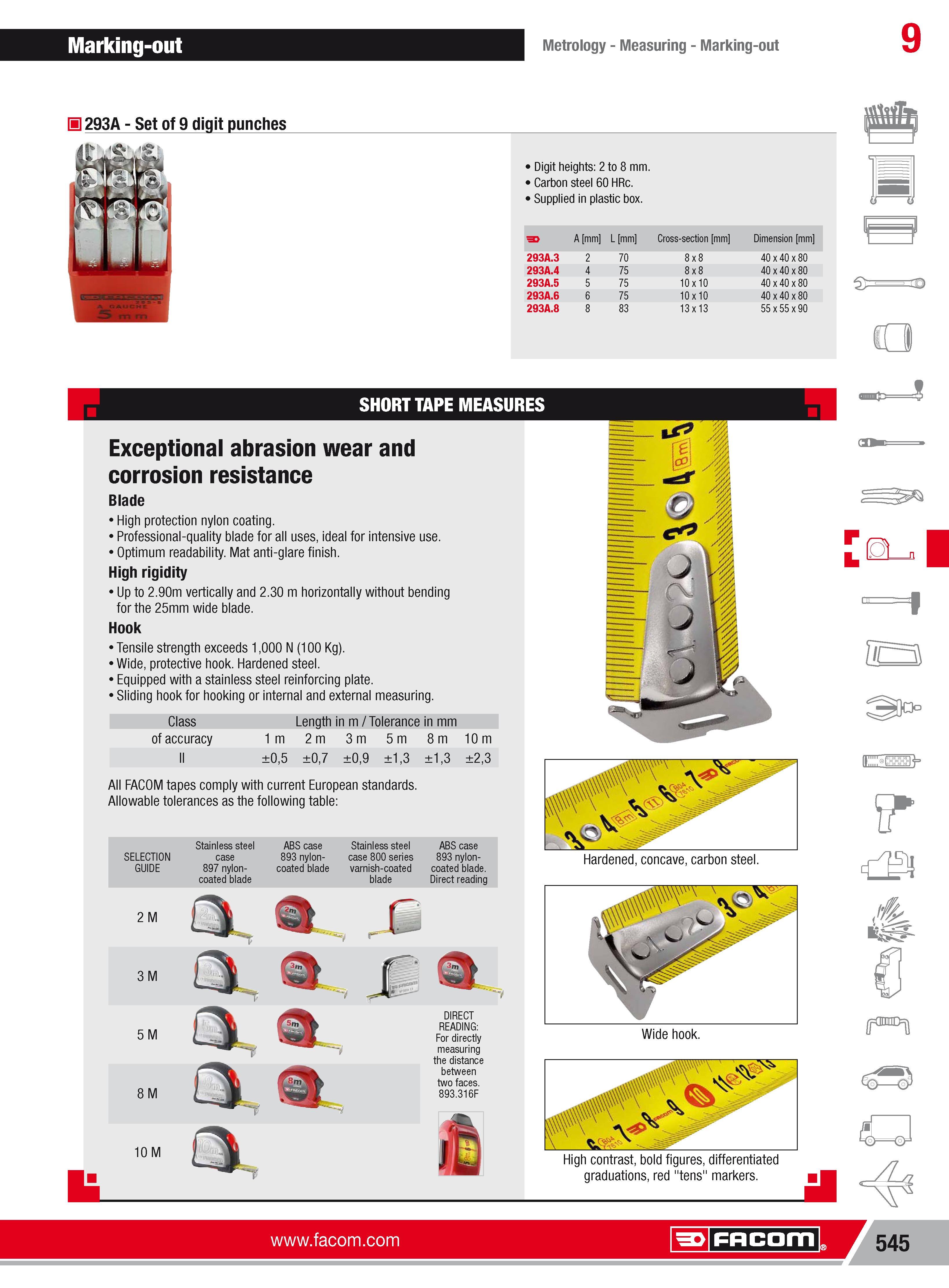

571 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.545

Каталог FACOM 2013 Инструмент Оборудование Стр. 545 0571 ENG Lab2u

Marking-out Metrology Measuring Marking-out 9 H 293A Set of 9 digit punches Digit heights 2to8 mm. Carbon steel 60 HRc. Supplied in plastic box. 3 A mm L mm Cross-section mm Dimension mm 293A.3 2 70 8x8 40x40x 80 293A.4 4 75 8x8 40x40x 80 293A.5 5 75 10x10 40x40x 80 293A.6 6 75 10x10 40x40x 80 293A.8 8 83 13x13 55x55x 90 s SHORT TAPE MEASURES Exceptional abrasion wear and corrosion resistance Blade High protection nylon coating. Professional-quality blade for all uses ideal for intensive use. Optimum readability. Mat anti-glare finish. High rigidity Up to 2.90m vertically and 2.30 m horizontally without bending for the 25mm wide blade. Hook Tensile strength exceeds 1000 N (100 Kg). Wide protective hook. Hardened steel. Equipped with a stainless steel reinforcing plate. Sliding hookfor hooking or internal and external measuring. Class Length in m Tolerance in mm ofaccuracy 1m 2m 3m 5m 8m 10m II 05 07 09 13 13 23 All FACOM tapes comply with current European standards. Allowable tolerances as the following table Stainless steel ABS case Stainless steel ABS case SELECTION case 893 nylon- case 800 series 893 nylon- GUIDE 897 nylon- coated blade varnish-coated coated blade. coated blade blade Direct reading DIRECT READING For directly measuring the distance between two faces. 893.316F Facom y A A A "M Hardened concave carbon steel. Wide hook. High contrast bold figures differentiated graduations red "tens" markers. Facom cr r. 545
