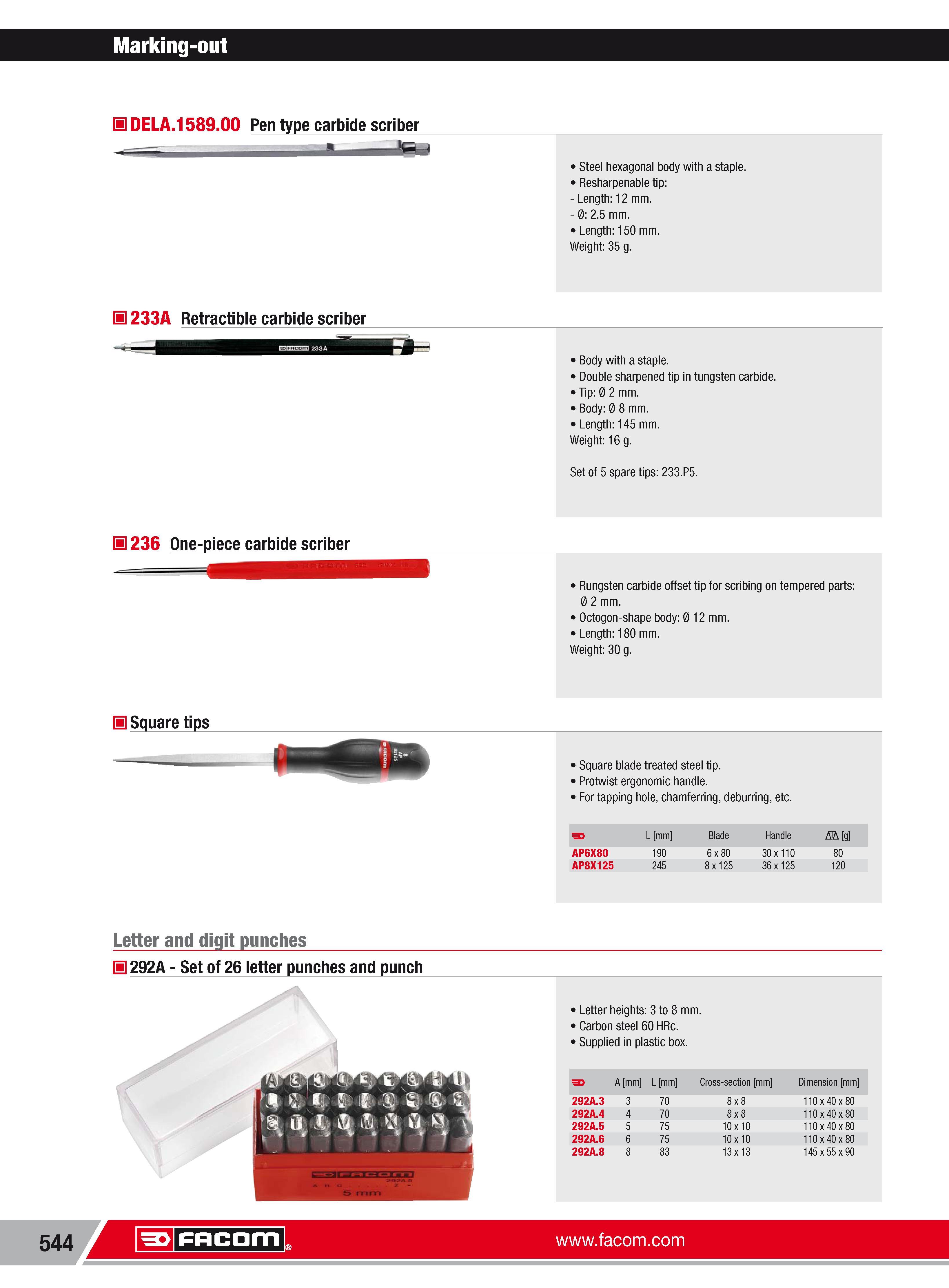

570 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.544

Каталог FACOM 2013 Инструмент Оборудование Стр. 544 0570 ENG Lab2u

Marking-out H DELA.1589.00 Pen type carbide scriber H 233A Retractible carbide scriber Steel hexagonal body with a staple. Resharpenable tip Length 12 mm. 0 2.5 mm. Length 150 mm. Weight 35 g. H 236 One-piece carbide scriber Body with a staple. Double sharpened tip in tungsten carbide. Tip 0 2 mm. Body 0 8 mm. Length 145 mm. Weight 16g. Set of 5 spare tips 233.P5. Rungsten carbide offset tip for scribing on tempered parts 0 2 mm. Octogon-shape body 0 12 mm. Length 180 mm. Weight 30 g. H Square tips Square blade treated steel tip. Protwist ergonomic handle. For tapping hole chamferring deburring etc. L mm Blade Handle M g AP6X80 190 6x80 30x110 80 AP8X125 245 8x125 36x125 120 Letter and digit punches H 292A Set of 26 letter punches and punch Letter heights 3to8 mm. Carbon steel 60 HRc. Supplied in plastic box. A mm L mm Cross-section mm Dimension mm 292A.3 3 70 8x8 110x40x80 292A.4 4 70 8x8 110x40x80 292A.5 5 75 10x10 110x40x80 292A.6 6 75 10x10 110x40x80 292A.8 8 83 13x13 145x55x90 544 Facom
