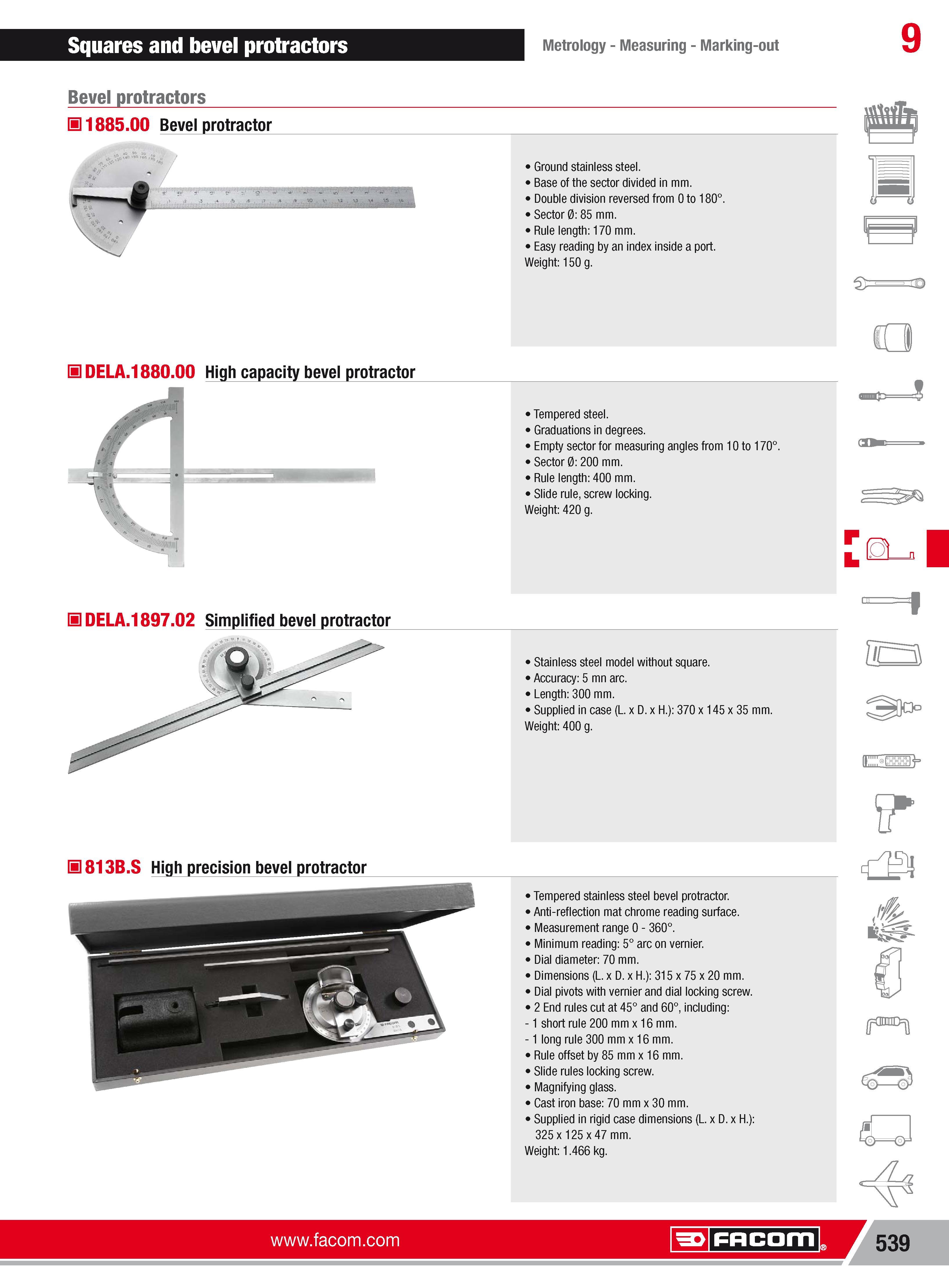

565 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.539

Каталог FACOM 2013 Инструмент Оборудование Стр. 539 0565 ENG Lab2u

Squares and bevel protractors Metrology Measuring Marking-out 9 Bevel protractors H 1885.00 Bevel protractor H DELA.1880.00 High capacity bevel protractor Ground stainless steel. Base of the sector divided in mm. Double division reversed from 0 to 180. Sector 0:85 mm. Rule length 170 mm. Easy reading by an index inside a port. Weight 150 g. 4 Tempered steel. Graduations in degrees. Empty sector for measuring angles from 10to170. Sector 0:200 mm. Rule length 400 mm. Slide rule screw locking. Weight 420 g. 3 r HDELA.1897.02 Simplified bevel protractor Stainless steel model without square. Accuracy 5 mn arc. Length 300 mm. Supplied in case (L.xD.x H.) 370x 145x 35 mm. Weight 400 g. 1 iQ H813B.S High precision bevel protractor Tempered stainless steel bevel protractor. Anti-reflection mat chrome reading surface. Measurement range 0 360. Minimum reading 5 arc on vernier. Dial diameter 70 mm. Dimensions (L. xD.x H.) 315x75x20 mm. Dial pivots with vernier and dial locking screw. 2 End rules cut at 45 and 60 including -1 short rule 200 mmx16 mm. -1 long rule 300 mmx16 mm. Rule offset by85mmx16 mm. Slide rules locking screw. Magnifying glass. Cast iron base 70 mm x 30 mm. Supplied in rigid case dimensions (L.xD.x H.) 325x 125x47 mm. Weight 1.466 kg. Facom 539
