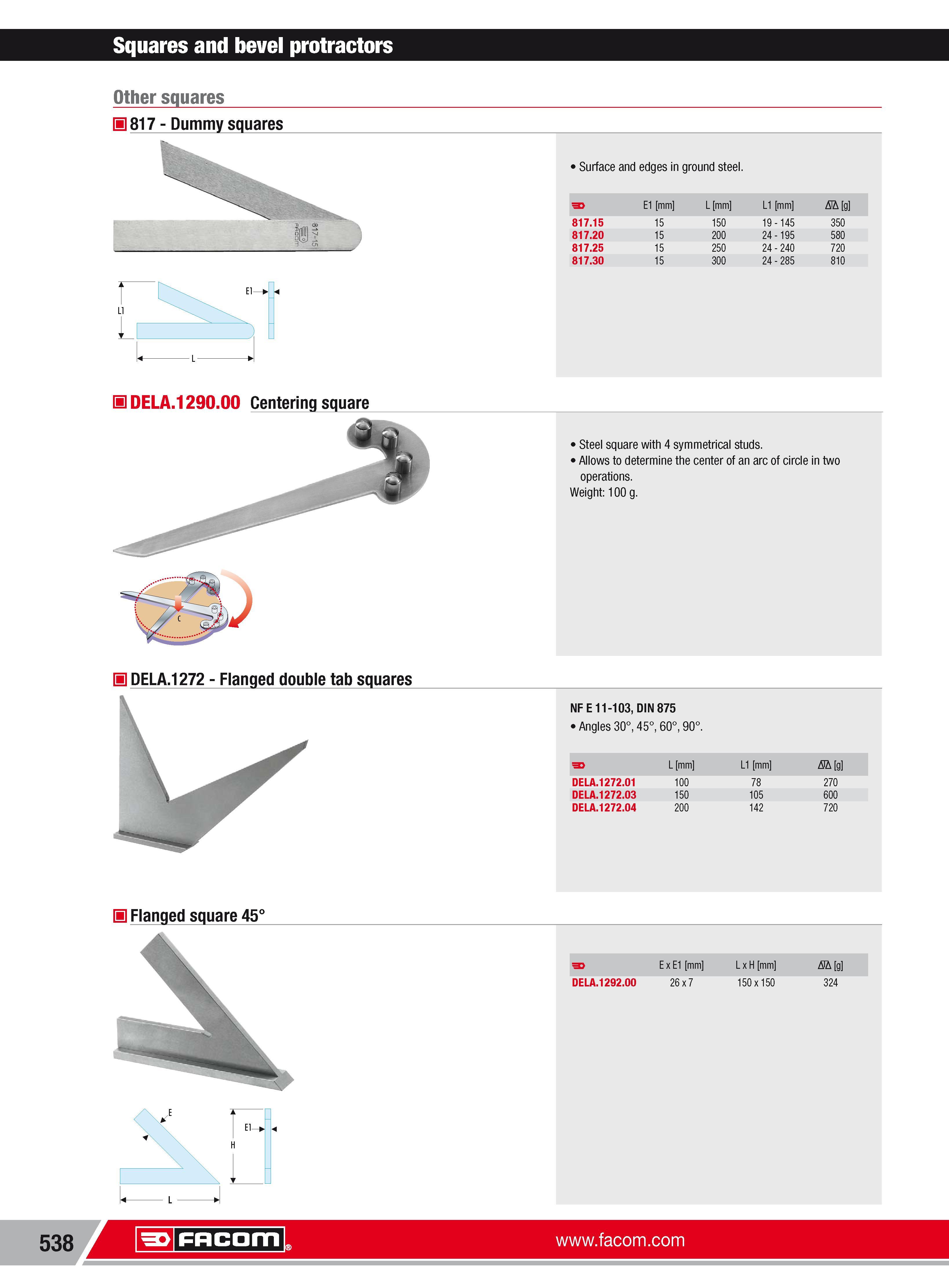

Squares and bevel protractors Other squares 817 Dummy squares Surface and edges in ground steel. E1 mm L mm L1 mm Nh g 817.15 15 150 19-145 350 817.20 15 200 24-195 580 817.25 15 250 24 240 720 817.30 15 300 OO Cn 810 11 DELA.1290.00 Centering square Steel square with 4 symmetrical studs. Allows to determine the center of an arc of circle in two operations. Weight 100 g. H DELA.1272 Flanged double tab squares NF E11-103 DIN 875 Angles 30 45 60 90. L mm L1 mm Nh g DELA.1272.01 100 78 270 DELA.1272.03 150 105 600 DELA.1272.04 200 142 720 H Flanged square 45 DELA.1292.00 ExE1 mm 26x7 L x H mm 150x150 Nh g 324 E1 H Facom
