| Обновлено 2020-05-02 09:23:18 |
|
Слесарно-монтажный ручной инструмент / Hand tools FACOM | Каталог FACOM 2013 Ручной инструмент и оборудование (Всего 1108 стр.) |
|||||

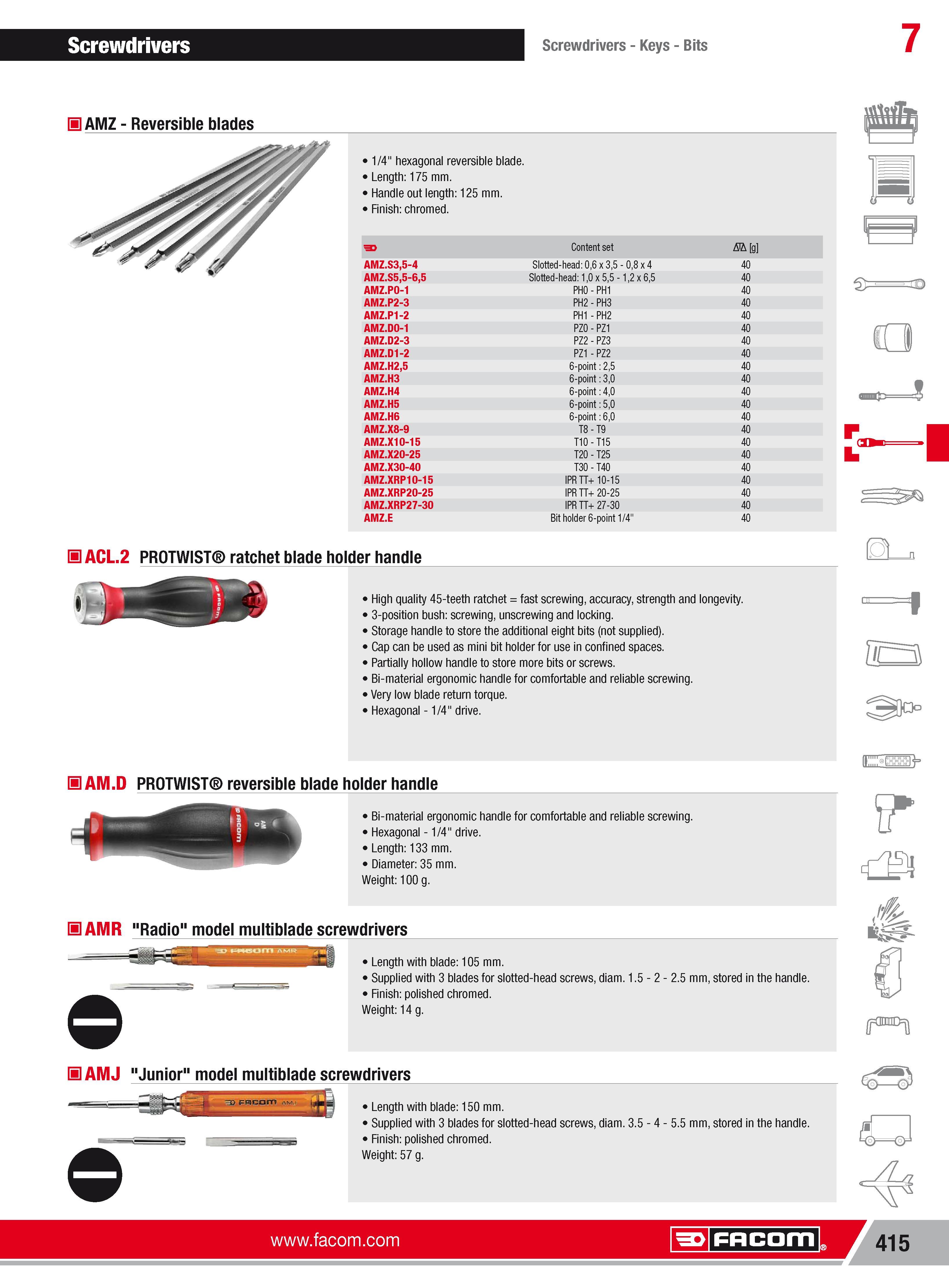

441 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.415 |
|||||
Каталог FACOM 2013 Инструмент Оборудование Стр. 415 0441 ENG Lab2u Screwdrivers Screwdrivers Keys Bits 7 AMZ Reversible blades 1/4" hexagonal reversible blade. Length 175 mm. Handle out length 125 mm. Finish chromed. AMZ.S35-4 AMZ.S55-65 Content set Slotted-head 06 x 35 -08x4 Slotted-head 10x55-12x 65 H ACL.2 PROTWIST ratchet blade holder handle M g 40 40 High quality 45-teeth ratchet fast screwing accuracy strength and longevity. 3-position bush screwing unscrewing and locking. Storage handle to store the additional eight bits (not supplied). Cap can be used as mini bit holder for use in confined spaces. Partially hollow handle to store more bits or screws. Bi-material ergonomic handle for comfortable and reliable screwing. Very low blade return torque. Hexagonal -1/4" drive. AMZ.PO-1 PH0 PH1 40 AMZ.P2-3 PH2 PH3 40 AMZ.P1-2 PH1 PH2 40 AMZ.D0-1 PZO PZ1 40 AMZ.D2-3 PZ2 PZ3 40 AMZ.D1-2 PZ1 PZ2 40 AMZ.H25 6-point 25 40 AMZ.H3 6-point 30 40 AMZ.H4 6-point 40 40 AMZ.H5 6-point 50 40 AMZ.H6 6-point 60 40 AMZ.X8-9 T8 T9 40 AMZ.X10-15 T10 T15 40 AMZ.X20-25 T20 T25 40 AMZ.X30-40 T30 T40 40 AMZ.XRP10-15 IPR TT+ 10-15 40 AMZ.XRP20-25 IPR TT+ 20-25 40 AMZ.XRP27-30 IPR TT+ 27-30 40 AMZ.E Bit holder 6-point 1/4" 40 3 r H AM.D PROTWIST reversible blade holder handle ri lL 1 1 0 3 ) Bi-material ergonomic handle for comfortable and reliable screwing. Hexagonal -1/4" drive. Length 133 mm. Diameter 35 mm. Weight 100 g. H AMR "Radio" model multiblade screwdrivers Length with blade 105 mm. Supplied with 3 blades for slotted-head screws diam. 1.5-2- 2.5 mm stored in the handle. Finish polished chromed. Weight 14 g. H AMJ "Junior" model multiblade screwdrivers Length with blade 150 mm. Supplied with 3 blades for slotted-head screws diam. 3.5-4- 5.5 mm stored in the handle. Finish polished chromed. Weight 57 g. Facom 415 |
|||||
