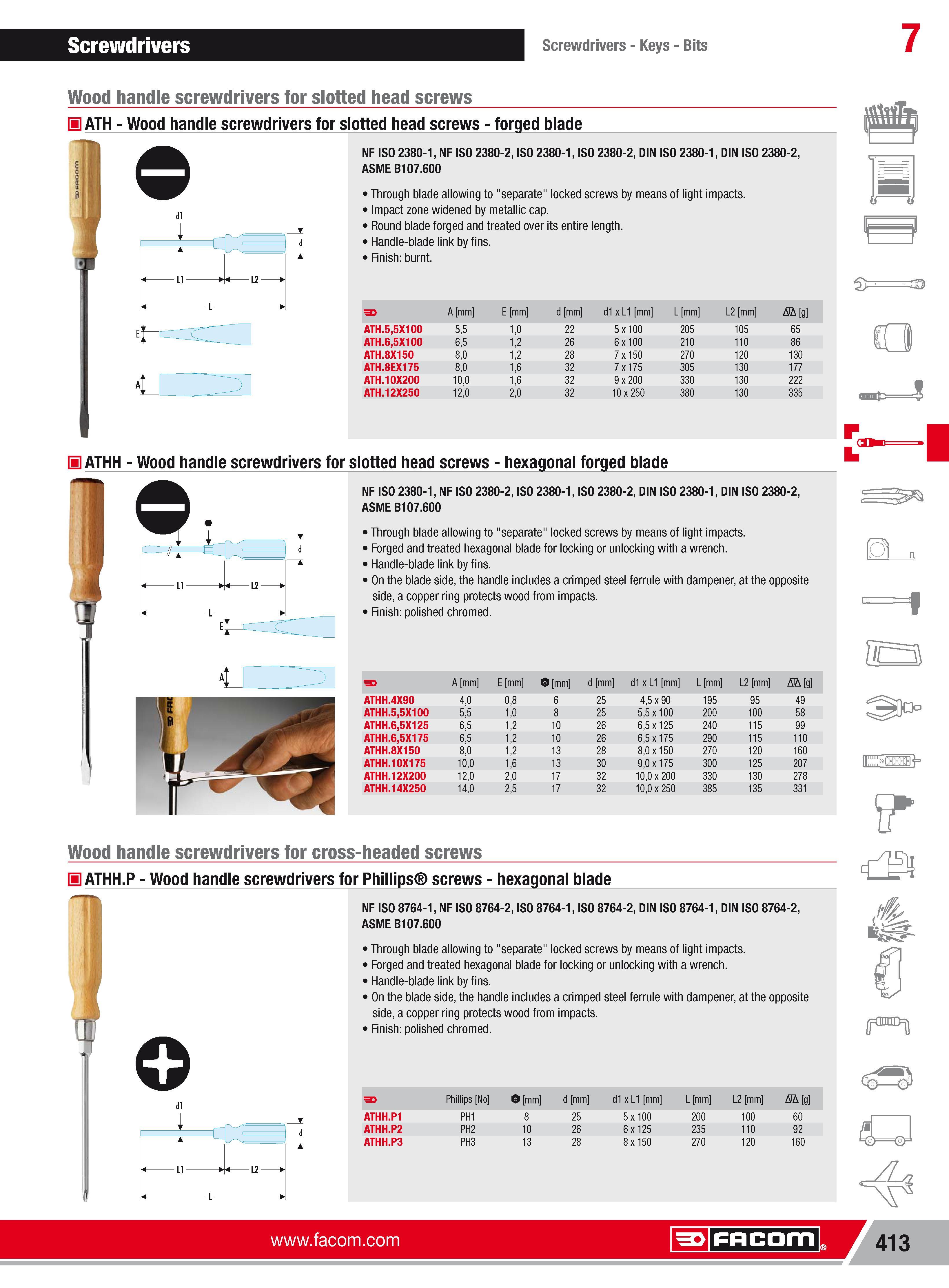

439 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.413

Каталог FACOM 2013 Инструмент Оборудование Стр. 413 0439 ENG Lab2u

Screwdrivers Screwdrivers Keys Bits 7 Wood handle screwdrivers for slotted head screws ATH Wood handle screwdrivers for slotted head screws forged blade C L2 NF ISO 2380-1 NF ISO 2380-2 ISO 2380-1 ISO 2380-2 DIN ISO 2380-1 DIN ISO 2380-2 ASME B107.600 Through blade allowing to "separate" locked screws by means of light impacts. Impact zone widened by metallic cap. Round blade forged and treated over its entire length. Handle-blade link by fins. Finish burnt. H ATHH Wood handle screwdrivers for slotted head screws hexagonal forged blade 9 L2 NF ISO 2380-1 NF ISO 2380-2 ISO 2380-1 ISO 2380-2 DIN ISO 2380-1 DIN ISO 2380-2 ASME B107.600 Through blade allowing to "separate" locked screws by means of light impacts. Forged and treated hexagonal blade for locking or unlocking with a wrench. Handle-blade link by fins. On the blade side the handle includes a crimped steel ferrule with dampener at the opposite side a copper ring protects wood from impacts. Finish polished chromed. A mm E mm d mm d1 x L1 mm L mm L2 mm Nh g ATH.55X100 55 10 22 5 x 100 205 105 65 ATH.65X100 65 12 26 6 x 100 210 110 86 ATH.8X150 80 12 28 7 x 150 270 120 130 ATH.8EX175 80 16 32 7 x 175 305 130 177 ATH.10X200 100 16 32 9 x 200 330 130 222 ATH.12X250 120 20 32 10 x 250 380 130 335 3 A mm E mm 0 mm d mm d1 x L1 mm L mm L2 mm Nh g ATHH.4X90 40 08 6 25 45 x 90 195 95 49 ATHH.55X100 55 10 8 25 55 x 100 200 100 58 ATHH.65X125 65 12 10 26 65 x 125 240 115 99 ATHH.65X175 65 12 10 26 65 x 175 290 115 110 ATHH.8X150 80 12 13 28 80 x 150 270 120 160 ATHH.10X175 100 16 13 30 90 x 175 300 125 207 ATHH.12X200 120 20 17 32 100 x 200 330 130 278 ATHH.14X250 140 25 17 32 100 x 250 385 135 331 Wood handle screwdrivers for cross-headed screws ATHH.P Wood handle screwdrivers for Phillips screws hexagonal blade NF ISO 8764-1 NF ISO 8764-2 ISO 8764-1 ISO 8764-2 DIN ISO 8764-1 DIN ISO 8764-2 ASME B107.600 Through blade allowing to "separate" locked screws by means of light impacts. Forged and treated hexagonal blade for locking or unlocking with a wrench. Handle-blade link by fins. On the blade side the handle includes a crimped steel ferrule with dampener at the opposite side a copper ring protects wood from impacts. Finish polished chromed. o L2 ATHH.P1 ATHH.P2 ATHH.P3 Phillips No PH1 PH2 PH3 O mm 8 10 13 d mm 25 26 28 d1 x L1 mm 5 x 100 6 x 125 8 x 150 L mm 200 235 270 L2 mm 100 110 120 Nh g 60 92 160 Facom 413 Facom
