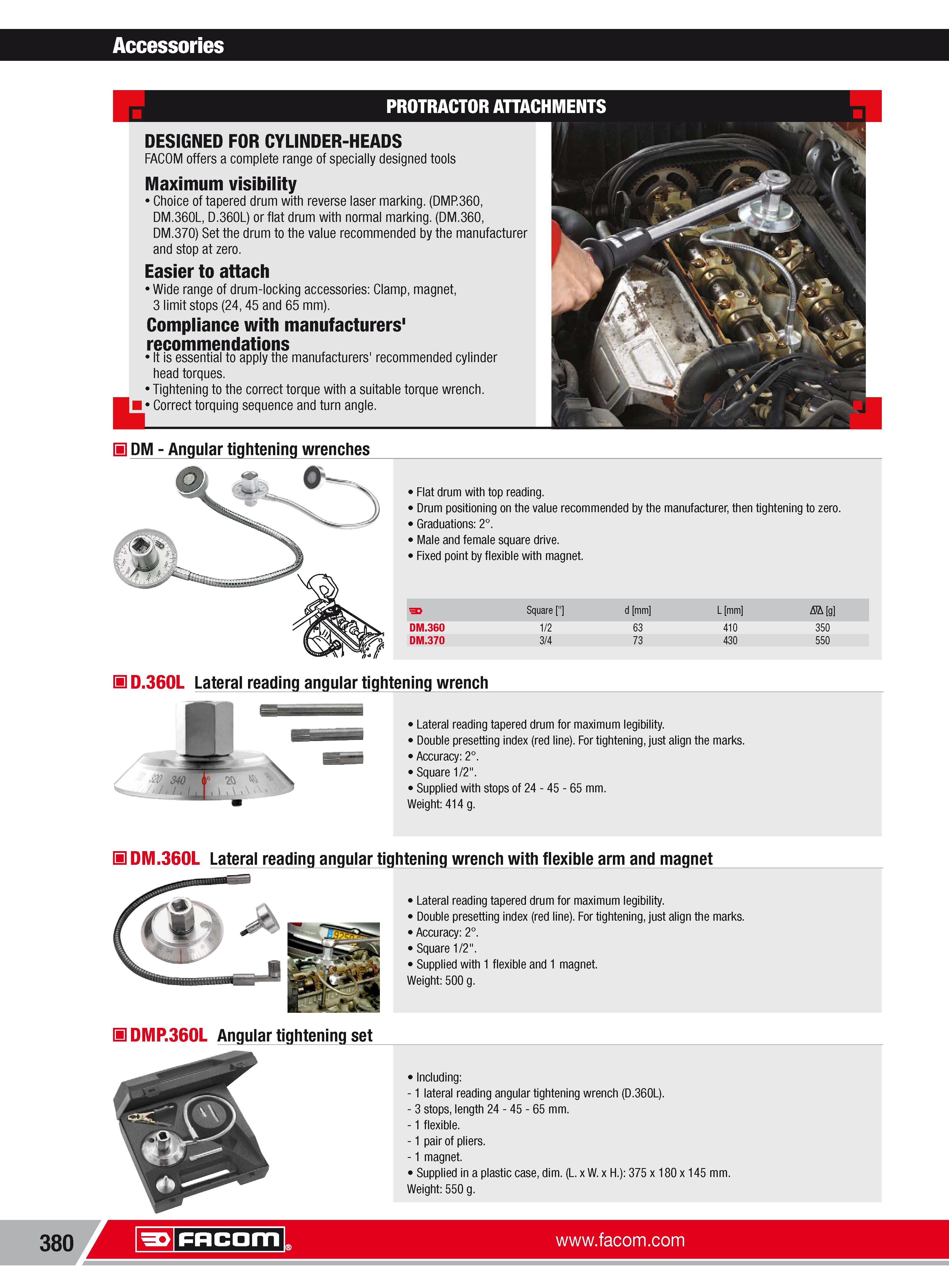

Accessories DESIGNED FOR CYLINDER-HEADS FACOM offers a complete range of specially designed tools Maximum visibility Choice of tapered drum with reverse laser marking. (DMP360 DM.360L D.360L) or flat drum with normal marking. (DM.360 DM.370) Set the drum to the value recommended by the manufacturer and stop at zero. Easier to attach Wide range of drum-locking accessories Clamp magnet 3 limit stops (24 45 and 65 mm). Compliance with manufacturers' recommendations It is essential to apply the manufacturers' recommended cylinder head torques. Tightening to the correct torque with a suitable torque wrench. Correct torquing sequence and turn angle. H DM Angular tightening wrenches Flat drum with top reading. Drum positioning on the value recommended by the manufacturer then tightening to zero. Graduations 2. Male and female square drive. Fixed point by flexible with magnet. 11 D.360L Lateral reading angular tightening wrench Lateral reading tapered drum for maximum legibility. Double presetting index (red line). For tightening just align the marks. Accuracy 2. Square 1 2". Supplied with stops of 24 -45 65 mm. Weight 414 g. H DM.360L Lateral reading angular tightening wrench with flexible arm and magnet 380 Lateral reading tapered drum for maximum legibility. Double presetting index (red line). For tightening just align the marks. Accuracy 2. Square 1 2". Supplied with 1 flexible and 1 magnet. Weight 500 g. H DMP.360L Angular tightening set Including -1 lateral reading angular tightening wrench (D.360L). 3 stops length 24 45 65 mm. -1 flexible. 1 pair of pliers. 1 magnet. Supplied in a plastic case dim. (L. xW.x H.) 375 x 180 x145 mm. Weight 550 g. Facom
