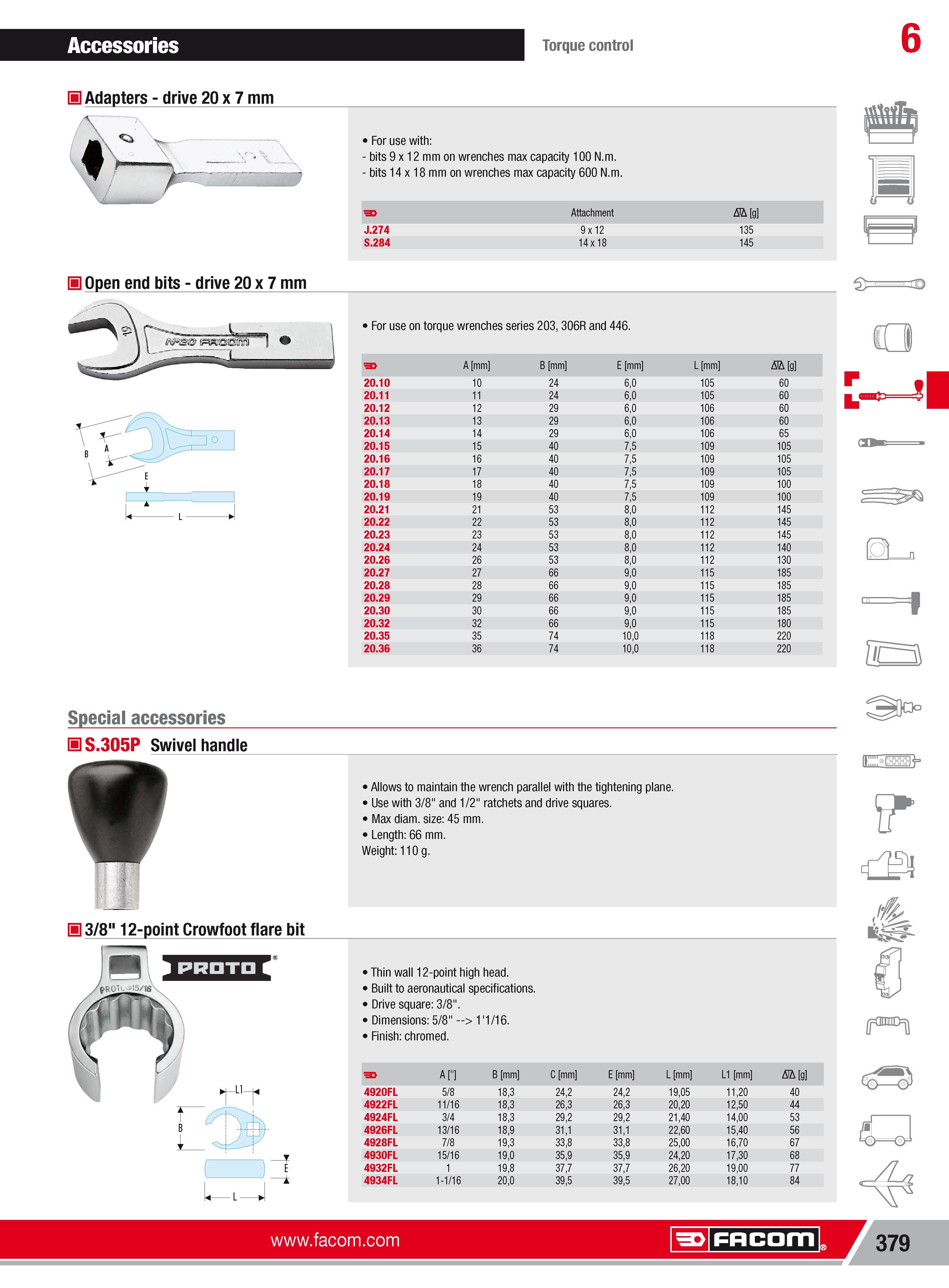

Accessories Torque control 6 H Adapters drive 20 x 7 mm For use with bits 9 x 12 mm on wrenches max capacity 100 N.m. bits 14 x 18 mm on wrenches max capacity 600 N.m. Attachment Nh g J.274 9 x 12 135 S.284 14 x 18 145 H Open end bits drive 20 x 7 mm For use on torque wrenches series 203306R and 446. c 1 Special accessories H S.305P Swivel handle H 3/8" 12-point Crowfoot flare bit Allows to maintain the wrench parallel with the tightening plane. Use with 3/8" and 1/2" ratchets and drive squares. Max diam. size 45 mm. Length 66 mm. Weight 110g. Thin wall 12-point high head. Built to aeronautical specifications. Drive square 3 8". Dimensions 5 8" 1'1 16. Finish chromed. A " B mm C mm E mm L mm L1 mm Nh g 4920FL 5 8 183 242 242 1905 1120 40 4922FL 11 16 183 263 263 2020 1250 44 4924FL 3 4 183 292 292 2140 1400 53 4926FL 13 16 189 311 311 2260 1540 56 4928FL 7 8 193 338 338 2500 1670 67 4930FL 15 16 190 359 359 2420 1730 68 4932FL 1 198 377 377 2620 1900 77 4934FL 1-1 16 200 395 395 2700 1810 84 Facom 379
