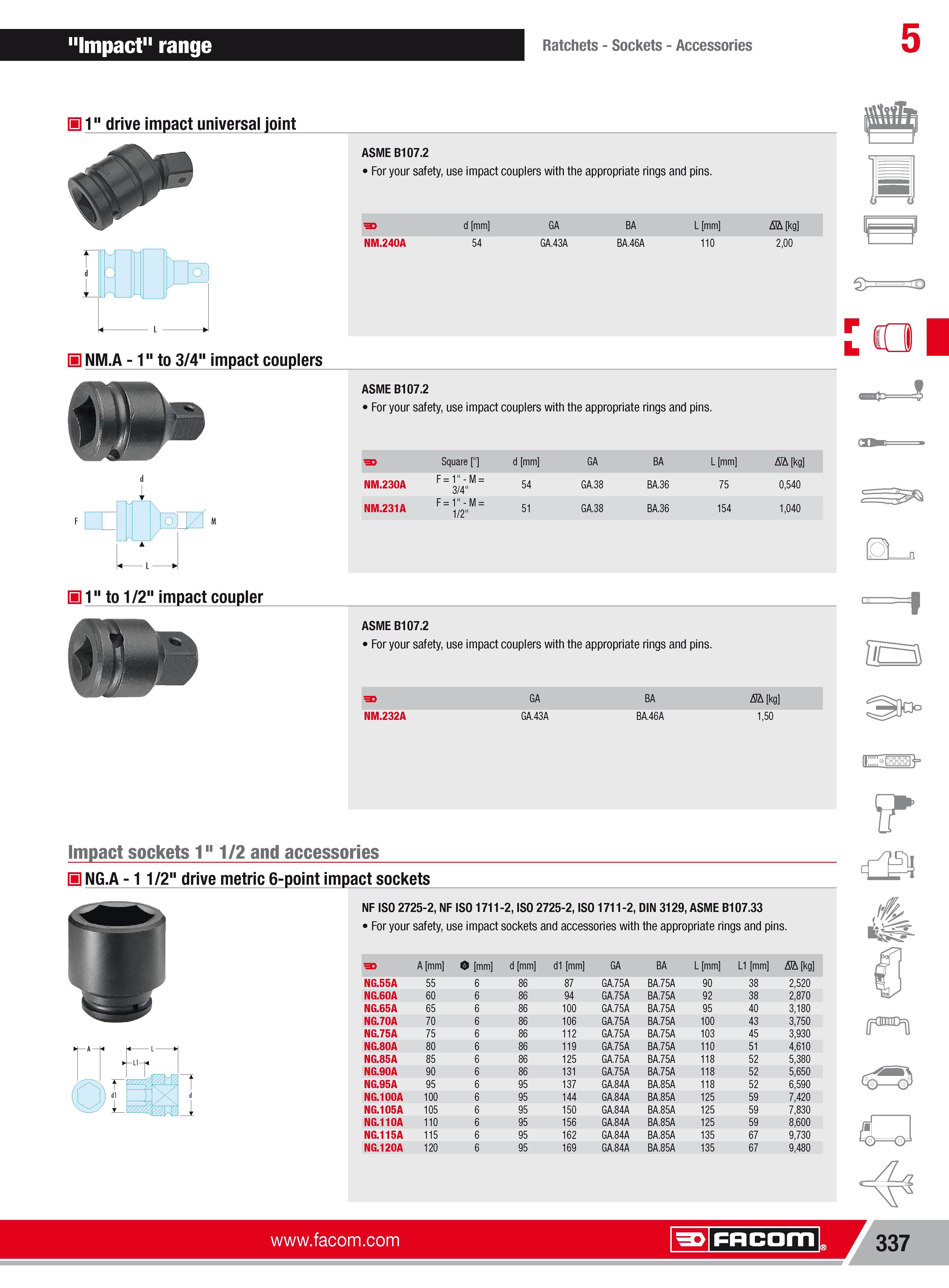

363 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.337

Каталог FACOM 2013 Инструмент Оборудование Стр. 337 0363 ENG Lab2u

"Impact" range Ratchets Sockets Accessories 5 H1" drive impact universal joint ASME B107.2 For your safety use impact couplers with the appropriate rings and pins. 4 d mm GA BA L mm Nh kg 1 NM.240A 54 GA.43A BA.46A 110 200 H NM.A 1" to 3/4" impact couplers i ASME B107.2 For your safety use impact couplers with the appropriate rings and pins. M Square " d mm GA BA L mm Nh kg NM.230A F1"-M 3/4" 54 GA.38 BA.36 75 0540 NM.231A F1"-M 1/2" 51 GA.38 BA.36 154 1040 1" to 1/2" impact coupler ASME B107.2 For your safety use impact couplers with the appropriate rings and pins. GA BA Nh kg 3 NM.232A GA.43A BA.46A 150 Impact sockets 1" 1 2 and accessories H NG.A 1 1/2" drive metric 6-point impact sockets NF ISO 2725-2 NF ISO 1711-2 ISO 2725-2 ISO 1711-2 DIN 3129 ASME B107.33 For your safety use impact sockets and accessories with the appropriate rings and pins. p-r t ZZ Z. dl ) X. k W A mm 0 mm d mm d1 mm GA BA L mm L1 mm Nh kg NG.55A 55 6 86 87 GA.75A BA.75A 90 38 2520 NG.60A 60 6 86 94 GA.75A BA.75A 92 38 2870 NG.65A 65 6 86 100 GA.75A BA.75A 95 40 3180 NG.70A 70 6 86 106 GA.75A BA.75A 100 43 3750 NG.75A 75 6 86 112 GA.75A BA.75A 103 45 3930 NG.80A 80 6 86 119 GA.75A BA.75A 110 51 4610 NG.85A 85 6 86 125 GA.75A BA.75A 118 52 5380 NG.90A 90 6 86 131 GA.75A BA.75A 118 52 5650 NG.95A 95 6 95 137 GA.84A BA.85A 118 52 6590 NG.100A 100 6 95 144 GA.84A BA.85A 125 59 7420 NG.105A 105 6 95 150 GA.84A BA.85A 125 59 7830 NG.110A 110 6 95 156 GA.84A BA.85A 125 59 8600 NG.115A 115 6 95 162 GA.84A BA.85A 135 67 9730 NG.120A 120 6 95 169 GA.84A BA.85A 135 67 9480 Facom 337 Facom
