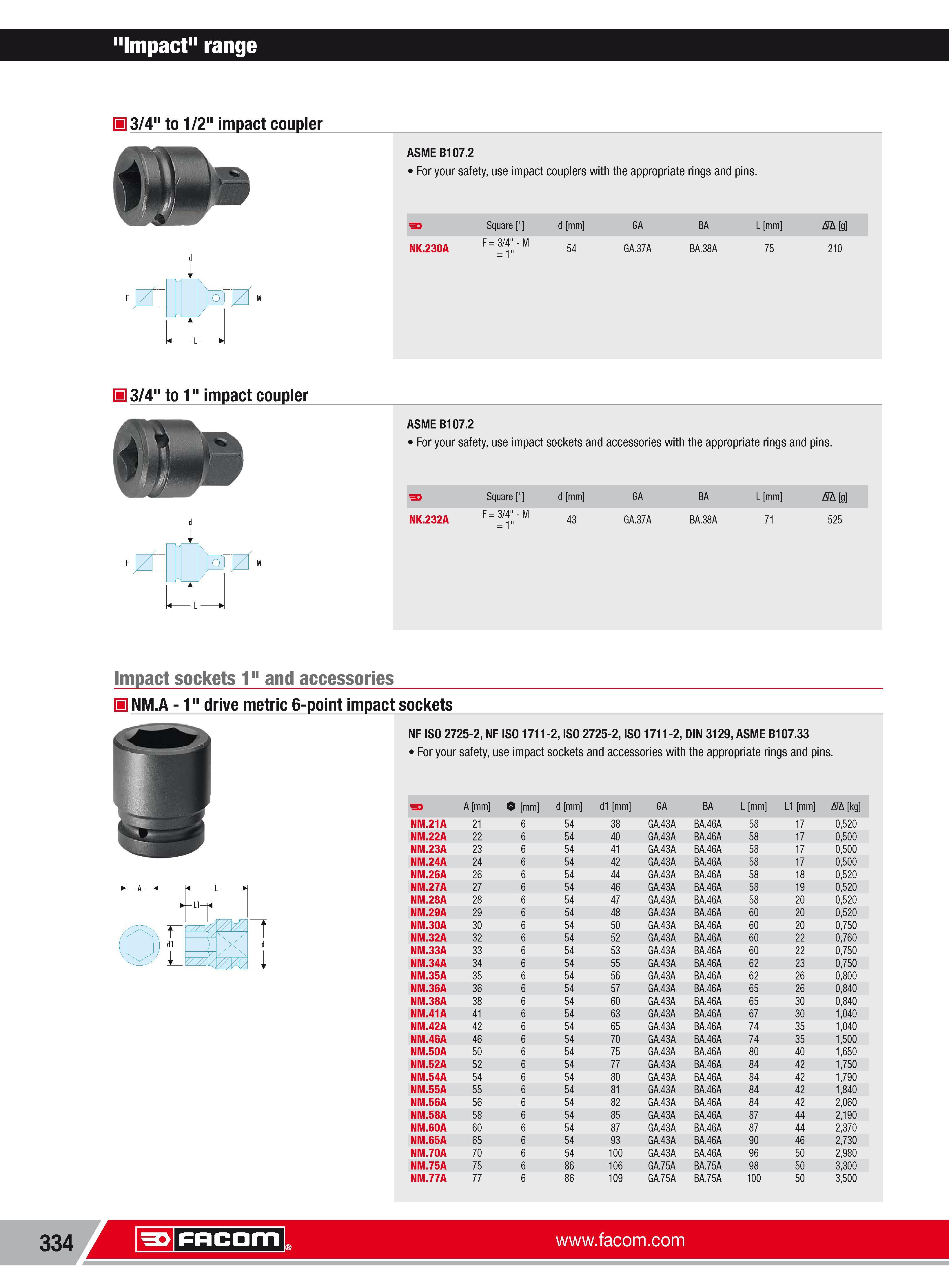

360 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.334

Каталог FACOM 2013 Инструмент Оборудование Стр. 334 0360 ENG Lab2u

"Impact" range 3/4" to 1/2" impact coupler ASME B107.2 For your safety use impact couplers with the appropriate rings and pins. 3 Square " d mm GA BA L mm Nh g NK.230A F3 4-M 54 GA.37A BA.38A 75 210 d 1 H 3/4" to 1" impact coupler ASME B107.2 For your safety use impact sockets and accessories with the appropriate rings and pins. Square " d mm GA BA L mm Nh g NK.232A F3 4' -M 43 GA.37A BA.38A 71 525 Impact sockets 1" and accessories H NM.A 1" drive metric 6-point impact sockets NF ISO 2725-2 NF ISO 1711-2 ISO 2725-2 ISO 1711-2 DIN 3129 ASME B107.33 For your safety use impact sockets and accessories with the appropriate rings and pins. A mm O mm d mm dl mm GA BA L mm L1 mm AIA kg NM.21A 21 6 54 38 GA.43A BA.46A 58 17 0520 NM.22A 22 6 54 40 GA.43A BA.46A 58 17 0500 NM.23A 23 6 54 41 GA.43A BA.46A 58 17 0500 NM.24A 24 6 54 42 GA.43A BA.46A 58 17 0500 NM.26A 26 6 54 44 GA.43A BA.46A 58 18 0520 NM.27A 27 6 54 46 GA.43A BA.46A 58 19 0520 NM.28A 28 6 54 47 GA.43A BA.46A 58 20 0520 NM.29A 29 6 54 48 GA.43A BA.46A 60 20 0520 NM.30A 30 6 54 50 GA.43A BA.46A 60 20 0750 NM.32A 32 6 54 52 GA.43A BA.46A 60 22 0760 NM.33A 33 6 54 53 GA.43A BA.46A 60 22 0750 NM.34A 34 6 54 55 GA.43A BA.46A 62 23 0750 NM.35A 35 6 54 56 GA.43A BA.46A 62 26 0800 NM.36A 36 6 54 57 GA.43A BA.46A 65 26 0840 NM.38A 38 6 54 60 GA.43A BA.46A 65 30 0840 NM.41A 41 6 54 63 GA.43A BA.46A 67 30 1040 NM.42A 42 6 54 65 GA.43A BA.46A 74 35 1040 NM.46A 46 6 54 70 GA.43A BA.46A 74 35 1500 NM.50A 50 6 54 75 GA.43A BA.46A 80 40 1650 NM.52A 52 6 54 77 GA.43A BA.46A 84 42 1750 NM.54A 54 6 54 80 GA.43A BA.46A 84 42 1790 NM.55A 55 6 54 81 GA.43A BA.46A 84 42 1840 NM.56A 56 6 54 82 GA.43A BA.46A 84 42 2060 NM.58A 58 6 54 85 GA.43A BA.46A 87 44 2190 NM.60A 60 6 54 87 GA.43A BA.46A 87 44 2370 NM.65A 65 6 54 93 GA.43A BA.46A 90 46 2730 NM.70A 70 6 54 100 GA.43A BA.46A 96 50 2980 NM.75A 75 6 86 106 GA.75A BA.75A 98 50 3300 NM.77A 77 6 86 109 GA.75A BA.75A 100 50 3500 334 Facom
