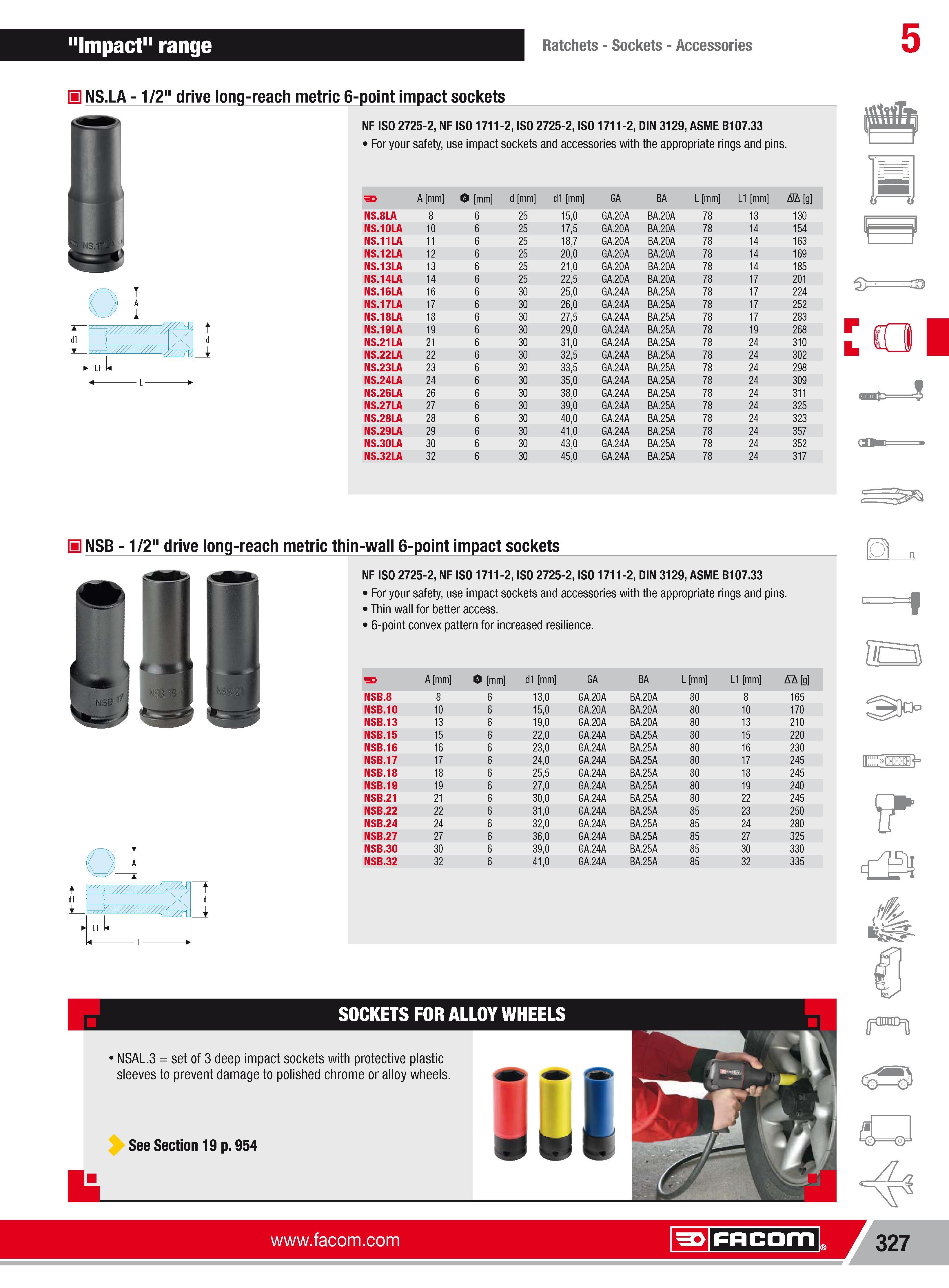

353 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.327

Каталог FACOM 2013 Инструмент Оборудование Стр. 327 0353 ENG Lab2u

"Impact" range Ratchets Sockets Accessories 5 H NS.LA 1/2" drive long-reach metric 6-point impact sockets t m NF ISO 2725-2 NF ISO 1711-2 ISO 2725-2 ISO 1711-2 DIN 3129 ASME B107.33 For your safety use impact sockets and accessories with the appropriate rings and pins. A mm 0 mm d mm d1 mm GA BA L mm L1 mm NA g NS.8LA 8 6 25 150 GA.20A BA.20A 78 13 130 NS.10LA 10 6 25 175 GA.20A BA.20A 78 14 154 NS.11LA 11 6 25 187 GA.20A BA.20A 78 14 163 NS.12LA 12 6 25 200 GA.20A BA.20A 78 14 169 NS.13LA 13 6 25 210 GA.20A BA.20A 78 14 185 NS.14LA 14 6 25 225 GA.20A BA.20A 78 17 201 NS.16LA 16 6 30 250 GA.24A BA.25A 78 17 224 NS.17LA 17 6 30 260 GA.24A BA.25A 78 17 252 NS.18LA 18 6 30 275 GA.24A BA.25A 78 17 283 NS.19LA 19 6 30 290 GA.24A BA.25A 78 19 268 NS.21LA 21 6 30 310 GA.24A BA.25A 78 24 310 NS.22LA 22 6 30 325 GA.24A BA.25A 78 24 302 NS.23LA 23 6 30 335 GA.24A BA.25A 78 24 298 NS.24LA 24 6 30 350 GA.24A BA.25A 78 24 309 NS.26LA 26 6 30 380 GA.24A BA.25A 78 24 311 NS.27LA 27 6 30 390 GA.24A BA.25A 78 24 325 NS.28LA 28 6 30 400 GA.24A BA.25A 78 24 323 NS.29LA 29 6 30 410 GA.24A BA.25A 78 24 357 NS.30LA 30 6 30 430 GA.24A BA.25A 78 24 352 NS.32LA 32 6 30 450 GA.24A BA.25A 78 24 317 H NSB 1/2" drive long-reach metric thin-wall 6-point impact sockets NF ISO 2725-2 NF ISO 1711-2 ISO 2725-2 ISO 1711-2 DIN 3129 ASME B107.33 For your safety use impact sockets and accessories with the appropriate rings and pins. Thin wall for better access. 6-point convex pattern for increased resilience. SOCKETS FOR ALLOY WHEELS NSAL.3 set of 3 deep impact sockets with protective plastic sleeves to prevent damage to polished chrome or alloy wheels. See Section 19 p. 954 327 Facom
