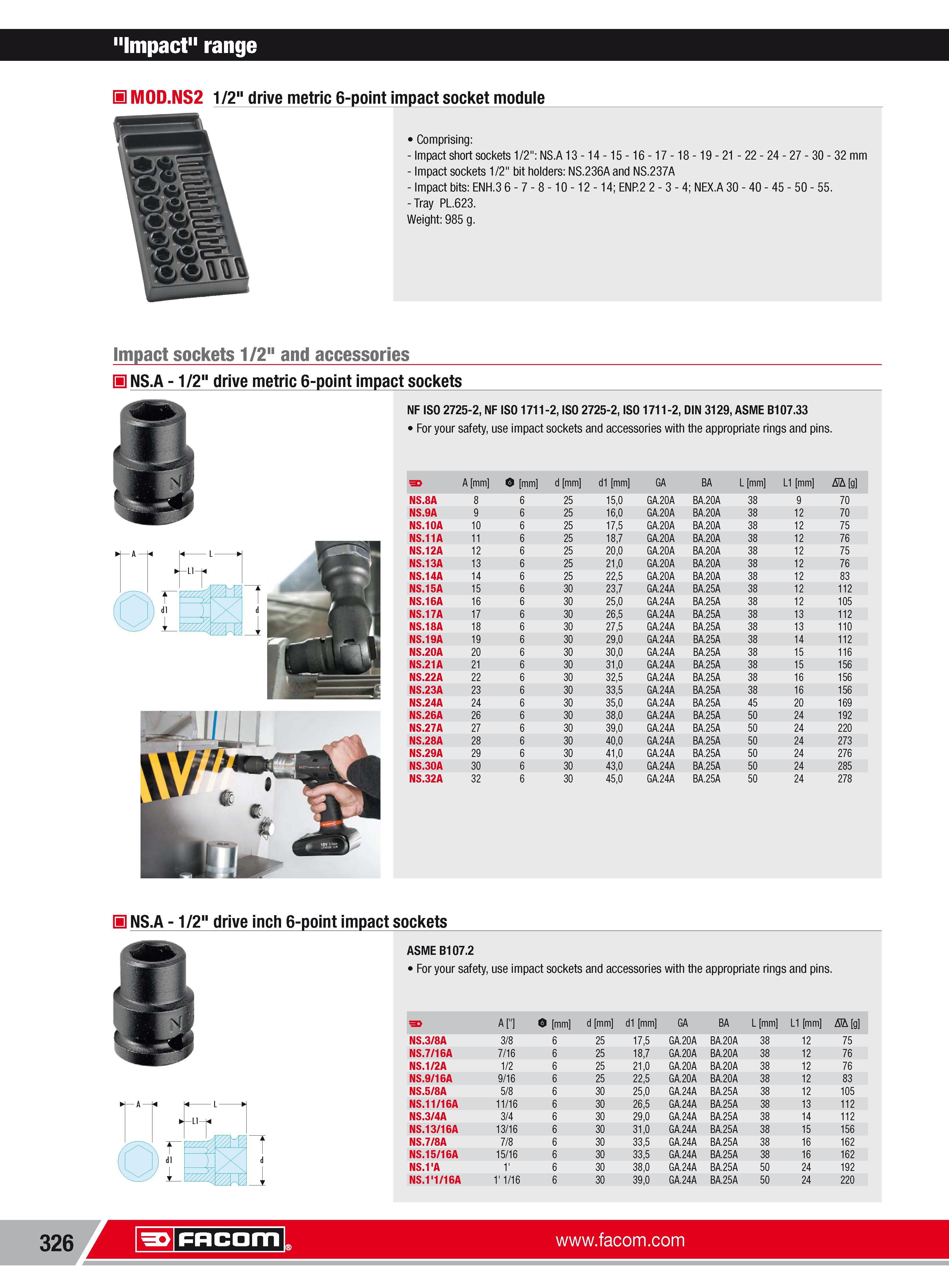

"Impact" range H MOD.NS2 1/2" drive metric 6-point impact socket module Comprising Impact short sockets 1/2" NS.A13 14 15 16 17 18 19 21 22 24 27 30 32 mm Impact sockets 1/2" bit holders NS.236Aand NS.237A Impact bits ENH.3 6-7-8-10-12-14; ENP.2 2-3-4; NEX.A 30-40- 45- 50- 55. -Tray PL.623. Weight 985 g. Impact sockets 1/2" and accessories H NS.A 1/2" drive metric 6-point impact sockets NF ISO 2725-2 NF ISO 1711-2 ISO 2725-2 ISO 1711-2 DIN 3129 ASME B107.33 For your safety use impact sockets and accessories with the appropriate rings and pins. 3 A mm 0 mm d mm d1 mm GA BA L mm L1 mm Nh g NS.8A 8 6 25 150 GA.20A BA.20A 38 9 70 NS.9A 9 6 25 160 GA.20A BA.20A 38 12 70 NS.10A 10 6 25 175 GA.20A BA.20A 38 12 75 NS.11A 11 6 25 187 GA.20A BA.20A 38 12 76 NS.12A 12 6 25 200 GA.20A BA.20A 38 12 75 NS.13A 13 6 25 210 GA.20A BA.20A 38 12 76 NS.14A 14 6 25 225 GA.20A BA.20A 38 12 83 NS.15A 15 6 30 237 GA.24A BA.25A 38 12 112 NS.16A 16 6 30 250 GA.24A BA.25A 38 12 105 NS.17A 17 6 30 265 GA.24A BA.25A 38 13 112 NS.18A 18 6 30 275 GA.24A BA.25A 38 13 110 NS.19A 19 6 30 290 GA.24A BA.25A 38 14 112 NS.20A 20 6 30 300 GA.24A BA.25A 38 15 116 NS.21A 21 6 30 310 GA.24A BA.25A 38 15 156 NS.22A 22 6 30 325 GA.24A BA.25A 38 16 156 NS.23A 23 6 30 335 GA.24A BA.25A 38 16 156 NS.24A 24 6 30 350 GA.24A BA.25A 45 20 169 NS.26A 26 6 30 380 GA.24A BA.25A 50 24 192 NS.27A 27 6 30 390 GA.24A BA.25A 50 24 220 NS.28A 28 6 30 400 GA.24A BA.25A 50 24 273 NS.29A 29 6 30 410 GA.24A BA.25A 50 24 276 NS.30A 30 6 30 430 GA.24A BA.25A 50 24 285 NS.32A 32 6 30 450 GA.24A BA.25A 50 24 278 H NS.A 1/2" drive inch 6-point impact sockets ASME B107.2 For your safety use impact sockets and accessories with the appropriate rings and pins. A " 0 mm d mm d1 mm GA BA L mm L1 mm Nh g NS.3 8A 3 8 6 25 175 GA.20A BA.20A 38 12 75 NS.7 16A 7 16 6 25 187 GA.20A BA.20A 38 12 76 NS.1 2A 1 2 6 25 210 GA.20A BA.20A 38 12 76 NS.9 16A 9 16 6 25 225 GA.20A BA.20A 38 12 83 NS.5 8A 5 8 6 30 250 GA.24A BA.25A 38 12 105 NS.11 16A 11 16 6 30 265 GA.24A BA.25A 38 13 112 NS.3 4A 3 4 6 30 290 GA.24A BA.25A 38 14 112 NS.13 16A 13 16 6 30 310 GA.24A BA.25A 38 15 156 NS.7 8A 7 8 6 30 335 GA.24A BA.25A 38 16 162 NS.15 16A 15 16 6 30 335 GA.24A BA.25A 38 16 162 NS.1'A 1' 6 30 380 GA.24A BA.25A 50 24 192 NS.1'1 16A 1' 1 16 6 30 390 GA.24A BA.25A 50 24 220 326 Facom
