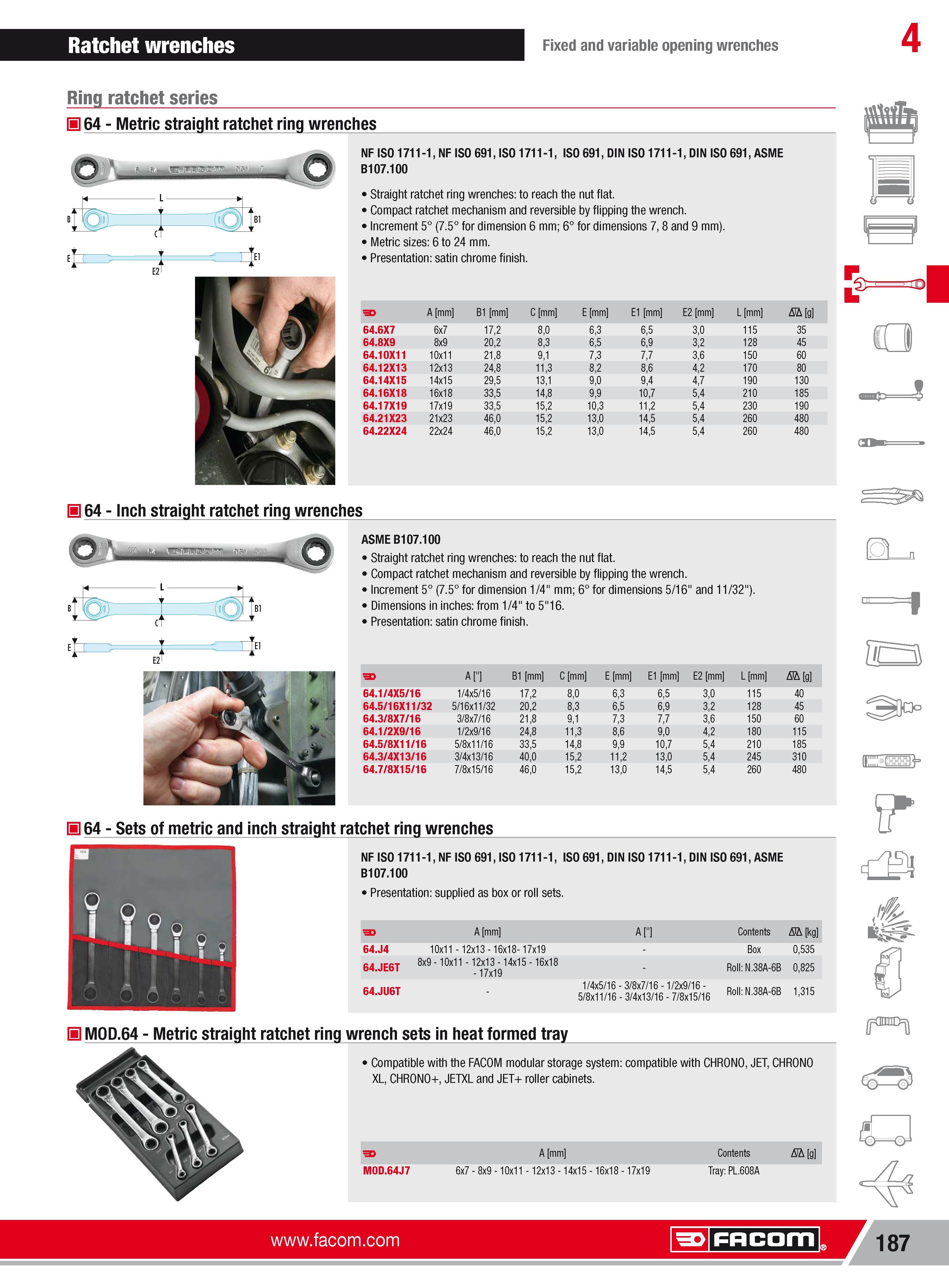

213 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.187

Каталог FACOM 2013 Инструмент Оборудование Стр. 187 0213 ENG Lab2u

Ratchet wrenches Fixed and variable opening wrenches 4 Ring ratchet series 64 Metric straight ratchet ring wrenches NF ISO 1711-1 NF ISO 691 ISO 1711-1 ISO 691 DIN ISO 1711-1 DIN ISO 691 ASME B107.100 Straight ratchet ring wrenches to reach the nut flat. Compact ratchet mechanism and reversible by flipping the wrench. Increment 5 (7.5 for dimension 6 mm; 6 for dimensions 78 and 9 mm). Metric sizes 6 to 24 mm. Presentation satin chrome finish. 64.6X7 64.8X9 64.10X11 64.12X13 64.14X15 64.16X18 64.17X19 64.21X23 64.22X24 A mm 6x7 8x9 10x11 12x13 14x15 16x18 17x19 21x23 22x24 B1 mm 17.2 20.2 218 248 29.5 33.5 33.5 46.0 46.0 C mm 80 8.3 9.1 11.3 13.1 148 15.2 15.2 15.2 E mm 6.3 65 7.3 82 9.0 99 10.3 13.0 13.0 E1 mm 6.5 69 7.7 8.6 94 10.7 112 14.5 14.5 E2 mm 30 3.2 3.6 4.2 4.7 5.4 5.4 5.4 5.4 L mm 115 128 150 170 190 210 230 260 260 Aft g 35 45 60 80 130 185 190 480 480 i 0 64 Inch straight ratchet ring wrenches ASME B107.100 Straight ratchet ring wrenches to reach the nut flat. Compact ratchet mechanism and reversible by flipping the wrench. Increment 5 (7.5 for dimension 1/4" mm; 6 for dimensions 5/16" and 11 32") Dimensions in inches from 1/4" to 5"16. Presentation satin chrome finish. 64.1 4X5 16 64.5 16X11 32 64.3 8X7 16 64.1 2X9 16 64.5 8X11 16 64.3 4X13 16 64.7 8X15 16 A " 1 4x5 16 5 16x11 32 3 8x7 16 1 2x9 16 5 8x11 16 3 4x13 16 7 8x15 16 B1 mm C mm E mm E1 mm E2 mm L mm Nh g 17.2 20.2 218 248 335 40.0 46.0 80 8.3 91 11.3 148 15.2 15.2 6.3 6.5 7.3 8.6 99 112 130 6.5 69 7.7 9.0 10.7 13.0 14.5 30 3.2 36 4.2 5.4 5.4 5.4 115 128 150 180 210 245 260 40 45 60 115 185 310 480 64 Sets of metric and inch straight ratchet ring wrenches NF ISO 1711-1 NF ISO 691 ISO 1711-1 ISO 691 DIN ISO 1711-1 DIN ISO 691 ASME B107.100 Presentation supplied as box or roll sets. A mm A " Contents NA kg 64.J4 10x11 12x13 16x18- 17x19 Box 0535 64.JE6T 8x9-10x11-12x13-14x15-16x18 17x19 Roll N.38A-6B 0825 64.JU6T 1 4x5 16 3 8x7 16 1 2x9 16 -5 8x11 16-3 4x13 16-7 8x15 16 Roll N.38A-6B 1315 H MOD.64 Metric straight ratchet ring wrench sets in heat formed tray Compatible with the FACOM modular storage system compatible with CHRONO JET CHRONO XL CHR0N0+ JETXL and JET+ roller cabinets. A mm Contents M g MOD.64J7 6x7 8x9 10x11 12x13 14x15 16x18 17x19 Tray PL.608A Facom 187 E2 E2 Facom
