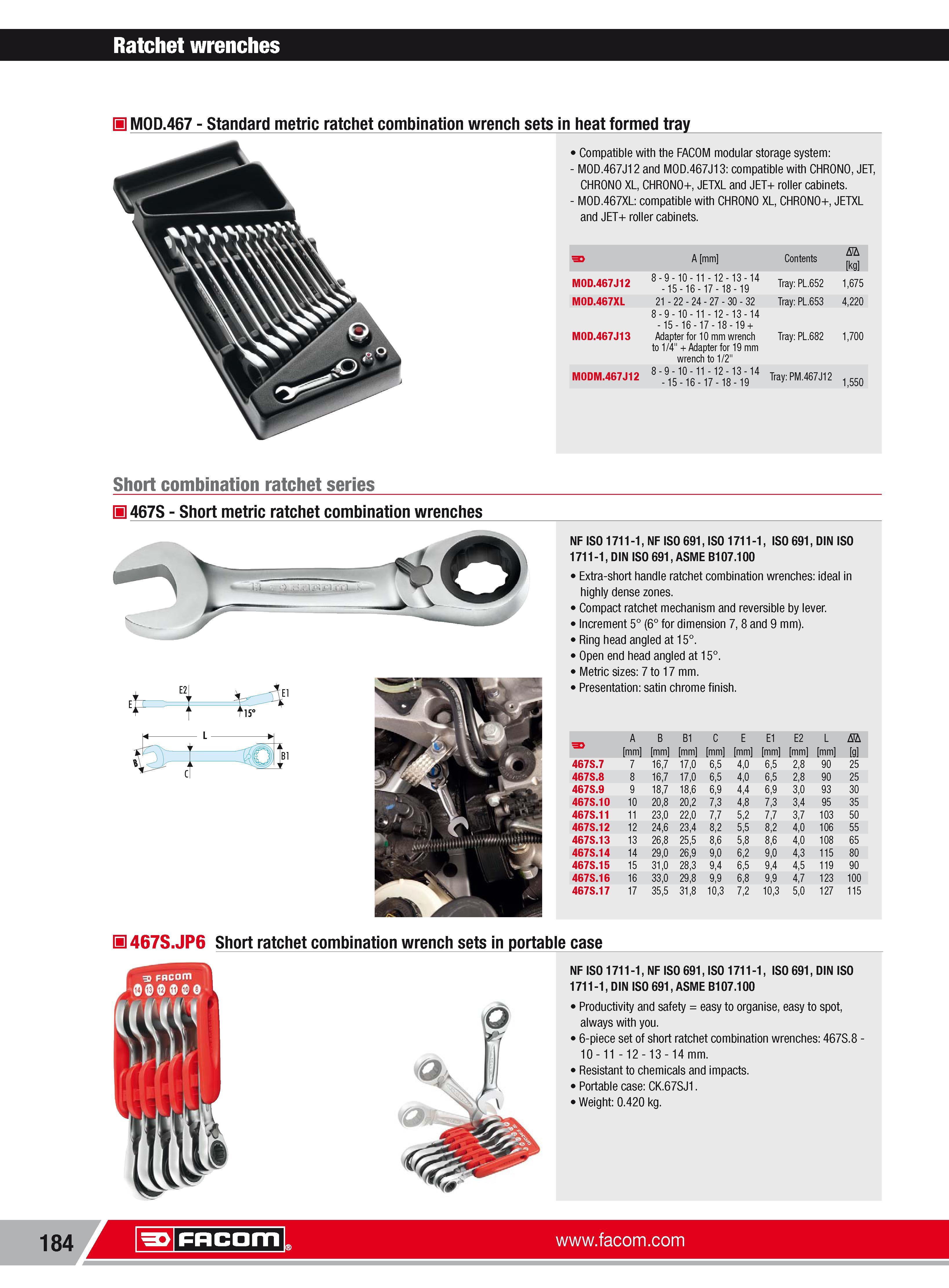

210 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.184

Каталог FACOM 2013 Инструмент Оборудование Стр. 184 0210 ENG Lab2u

Ratchet wrenches H MOD.467 Standard metric ratchet combination wrench sets in heat formed tray Compatible with the FACOM modular storage system M0D.467J12 and M0D.467J13 compatible with CHRONO JET CHRONO XL CHRONO+ JETXL and JET+ roller cabinets. M0D.467XL compatible with CHRONO XL CHRONO+ JETXL and JET+ roller cabinets. A mm Contents Nh kg MOD.467J12 8-9-10-11-12-13-14 15 16 17 18 19 Tray PL.652 1675 MOD.467XL 21 22 24- 27 30 32 Tray PL.653 4220 MOD.467J13 8-9-10-11-12-13-14 -15-16-17-18-19 + Adapter for 10 mm wrench to 1/4" + Adapter for 19 mm wrench to 1/2" Tray PL.682 1700 MODM.467J12 8-9-10-11-12-13-14 15 16 17 18 19 Tray PM.467J12 1550 Short combination ratchet series 467S Short metric ratchet combination wrenches NF ISO 1711-1 NF ISO 691 ISO 1711-1 ISO 691 DIN ISO 1711-1 DIN ISO 691 ASME B107.100 Extra-short handle ratchet combination wrenches ideal in highly dense zones. Compact ratchet mechanism and reversible by lever. Increment 5 (6 for dimension 7 8 and 9 mm). Ring head angled at 15. Open end head angled at 15. Metric sizes 7to17 mm. Presentation satin chrome finish. A B B1 C E E1 E2 L Nh mm mm mm mm mm mm mm mm g 4675.7 7 167 170 65 40 65 28 90 25 4675.8 8 167 170 65 40 65 28 90 25 4675.9 9 187 186 69 44 69 30 93 30 4675.10 10 208 202 73 48 73 34 95 35 4675.11 11 230 220 77 52 77 37 103 50 4675.12 12 246 234 82 55 82 40 106 55 4675.13 13 268 255 86 58 86 40 108 65 4675.14 14 290 269 90 62 90 43 115 80 4675.15 15 310 283 94 65 94 45 119 90 4675.16 16 330 298 99 68 99 47 123 100 4675.17 17 355 318 103 72 103 50 127 115 H467S.JP6 Short ratchet combination wrench sets in portable case NF ISO 1711-1 NF ISO 691 ISO 1711-1 ISO 691 DIN ISO 1711-1 DIN ISO 691 ASME B107.100 Productivity and safety easy to organise easy to spot always with you. 6-piece set of short ratchet combination wrenches 467S.8 -10-11 -12-13-14 mm. Resistant to chemicals and impacts. Portable case CK.67SJ1. Weight 0.420 kg. 184 Facom
