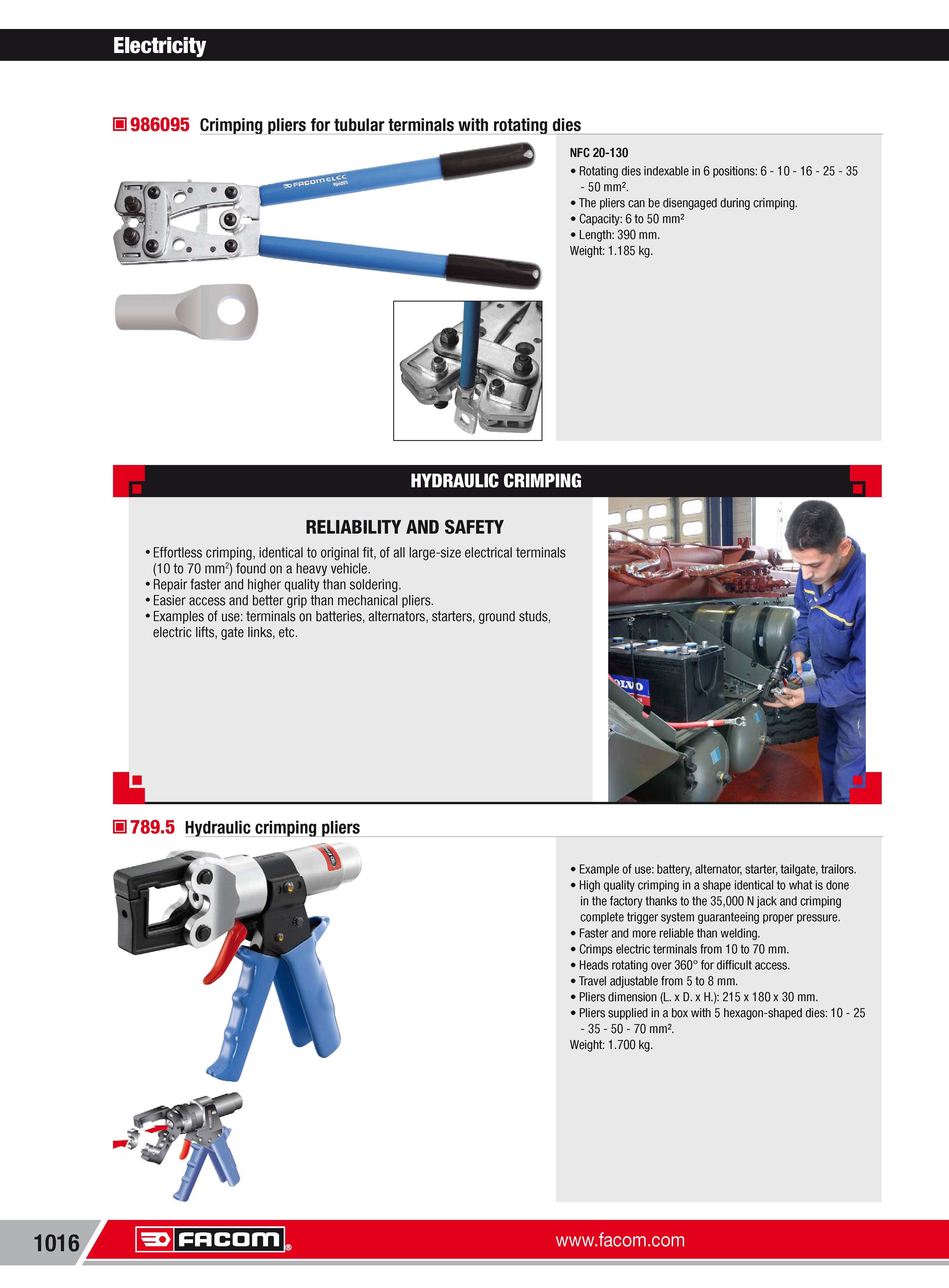

Crimping pliers 986095 for tubular terminals with rotating dies NFC 20-130 Rotating dies indexable in 6 positions 6-10-16 50 mm2. The pliers can be disengaged during crimping. Capacity 6 to 50 mm2 Length 390 mm. Weight 1.185 kg. 25-35 HYDRAULIC CRIMPING RELIABILITY AND SAFETY Effortless crimping identical to original fit of all large-size electrical terminals (10 to 70 mm2) found on a heavy vehicle. Repair faster and higher quality than soldering. Easier access and better grip than mechanical pliers. Examples of use terminals on batteries alternators starters ground studs electric lifts gate links etc. H 789.5 Hydraulic crimping pliers Example of use battery alternator starter tailgate trailors. High quality crimping in a shape identical to what is done in the factory thanks to the 35000 N jack and crimping complete trigger system guaranteeing proper pressure. Faster and more reliable than welding. Crimps electric terminals from 10to70 mm. Heads rotating over 360 for difficult access. Travel adjustable from 5to8 mm. Pliers dimension (L. xD.x H.) 215x180x30 mm. Pliers supplied in a box with 5 hexagon-shaped dies 10-25 35- 50- 70 mm2. Weight 1.700 kg. 1016 Facom Electricity H
