1039 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.1013

Каталог FACOM 2013 Инструмент Оборудование Стр. 1013 1039 ENG Lab2u

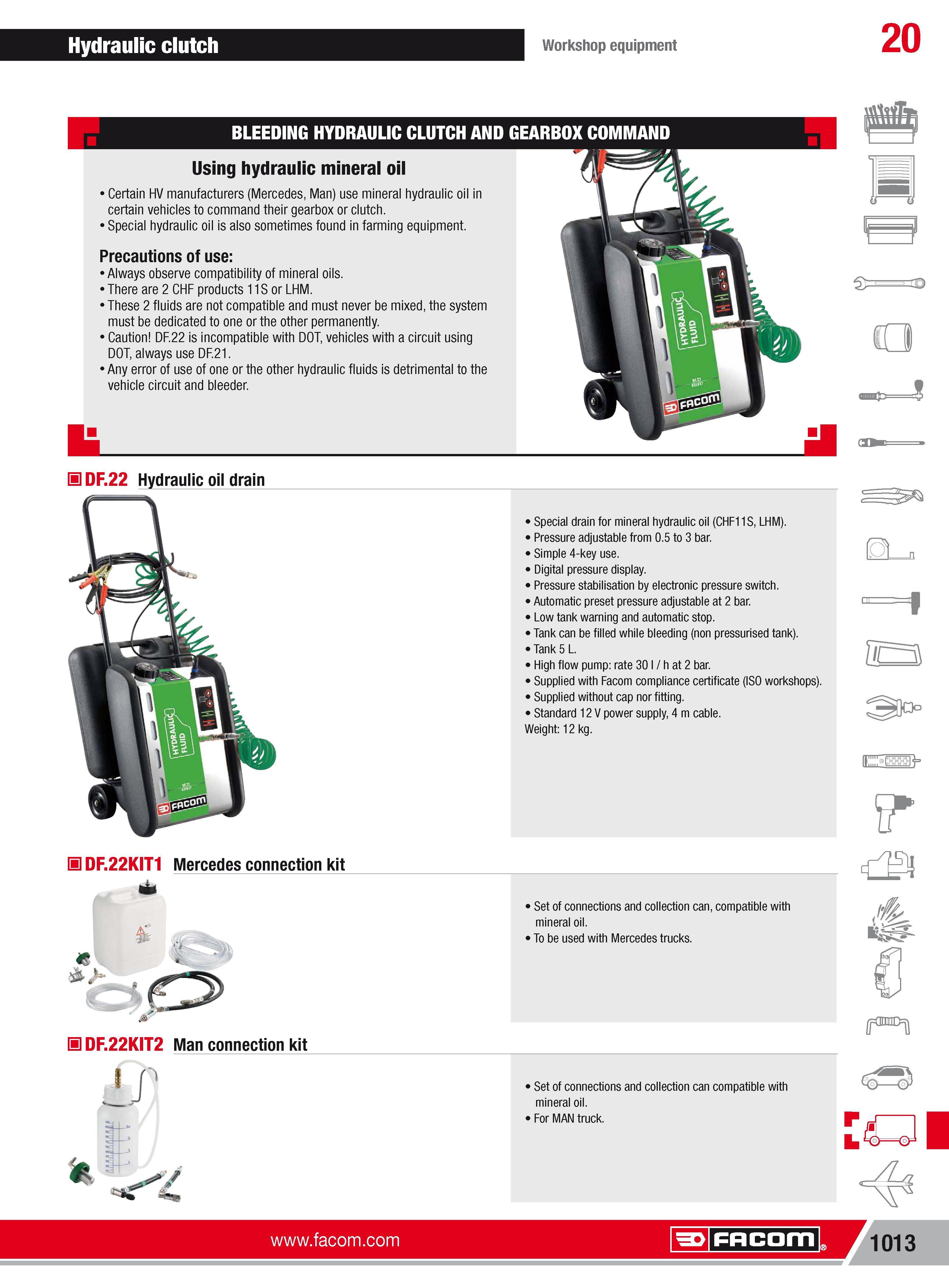

Hydraulic oil drain DF.22 Special drain for mineral hydraulic oil (CHF11S LHM). Pressure adjustable from 0.5 to 3 bar. Simple 4-key use. Digital pressure display. Pressure stabilisation by electronic pressure switch. Automatic preset pressure adjustable at 2 bar. Low tank warning and automatic stop. Tank can be filled while bleeding (non pressurised tank). Tank 5 L. High flow pump rate 30l hat2 bar. Supplied with Facom compliance certificate (ISO workshops). Supplied without cap nor fitting. Standard 12 V power supply 4 m cable. Weight 12 kg. c H DF.22KIT1 Mercedes connection kit H DF.22KIT2 Man connection kit Set of connections and collection can compatible with mineral oil. To be used with Mercedes trucks. Set of connections and collection can compatible with mineral oil. For MAN truck. Facom 1013 Facom Hydraulic clutch Workshop equipment 20 BLEEDING HYDRAULIC CLUTCH AND GEARBOX COMMAND Using hydraulic mineral oil Certain HV manufacturers (Mercedes Man) use mineral hydraulic oil in certain vehicles to command their gearbox or clutch. Special hydraulic oil is also sometimes found in farming equipment. Precautions of use Always observe compatibility of mineral oils. There are 2 CHF products 11Sor LHM. These 2 fluids are not compatible and must never be mixed the system must be dedicated to one or the other permanently. Caution DF.22 is incompatible with DOT vehicles with a circuit using DOT always use DF.21. Any error of use of one or the other hydraulic fluids is detrimental to the vehicle circuit and bleeder. H
