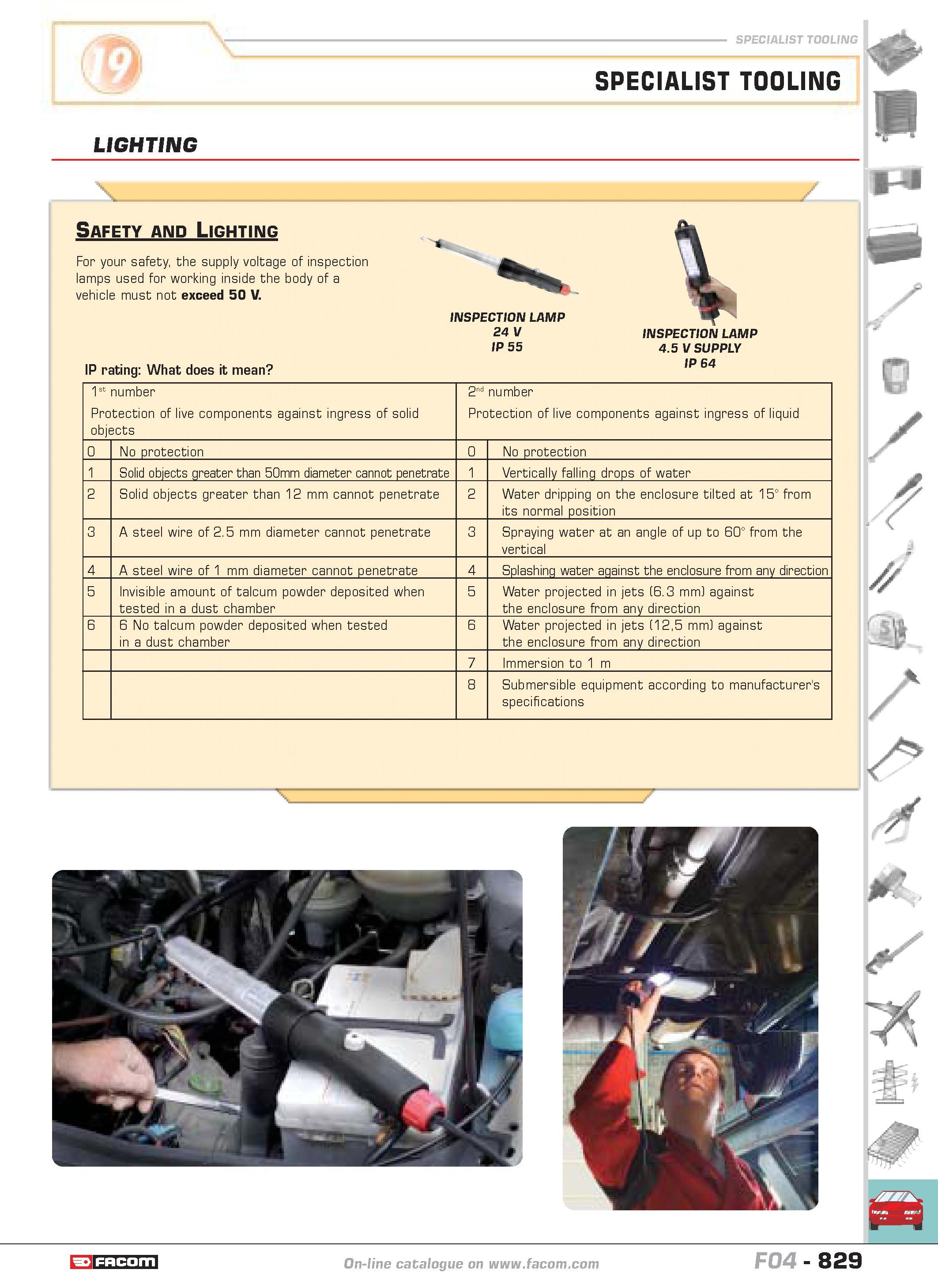

SPECIALIST TOOLING SPECIALIST TOOLING LIGHTING Safety and Lighting For your safety the supply voltage of inspection lamps used for working inside the body of a vehicle must not exceed 50 V. IP rating What does it mean INSPECTION LAMP 24 V IP 55 INSPECTION LAMP 4.5 V SUPPLY IP 64 1st number Protection of live components against ingress of solid objects 2nd number Protection of live components against ingress of liquid 0 No protection 0 No protection 1 Solid objects greater than 50mm diameter cannot penetrate 1 Vertically falling drops of water 2 Solid objects greater than 12 mm cannot penetrate 2 Water dripping on the enclosure tilted at 15 from its normal position 3 A steel wire of 2.5 mm diameter cannot penetrate 3 Spraying water at an angle of up to 60 from the vertical 4 A steel wire of 1 mm diameter cannot penetrate 4 Splashing water against the enclosure from any direction 5 Invisible amount of talcum powder deposited when tested in a dust chamber 5 Water projected in jets (6.3 mm) against the enclosure from any direction 6 6 No talcum powder deposited when tested in a dust chamber 6 Water projected in jets (125 mm) against the enclosure from any direction 7 Immersion to 1 m 8 Submersible equipment according to manufacturer's specifications x t ld:M lnl catalogue FACOM F05 829
