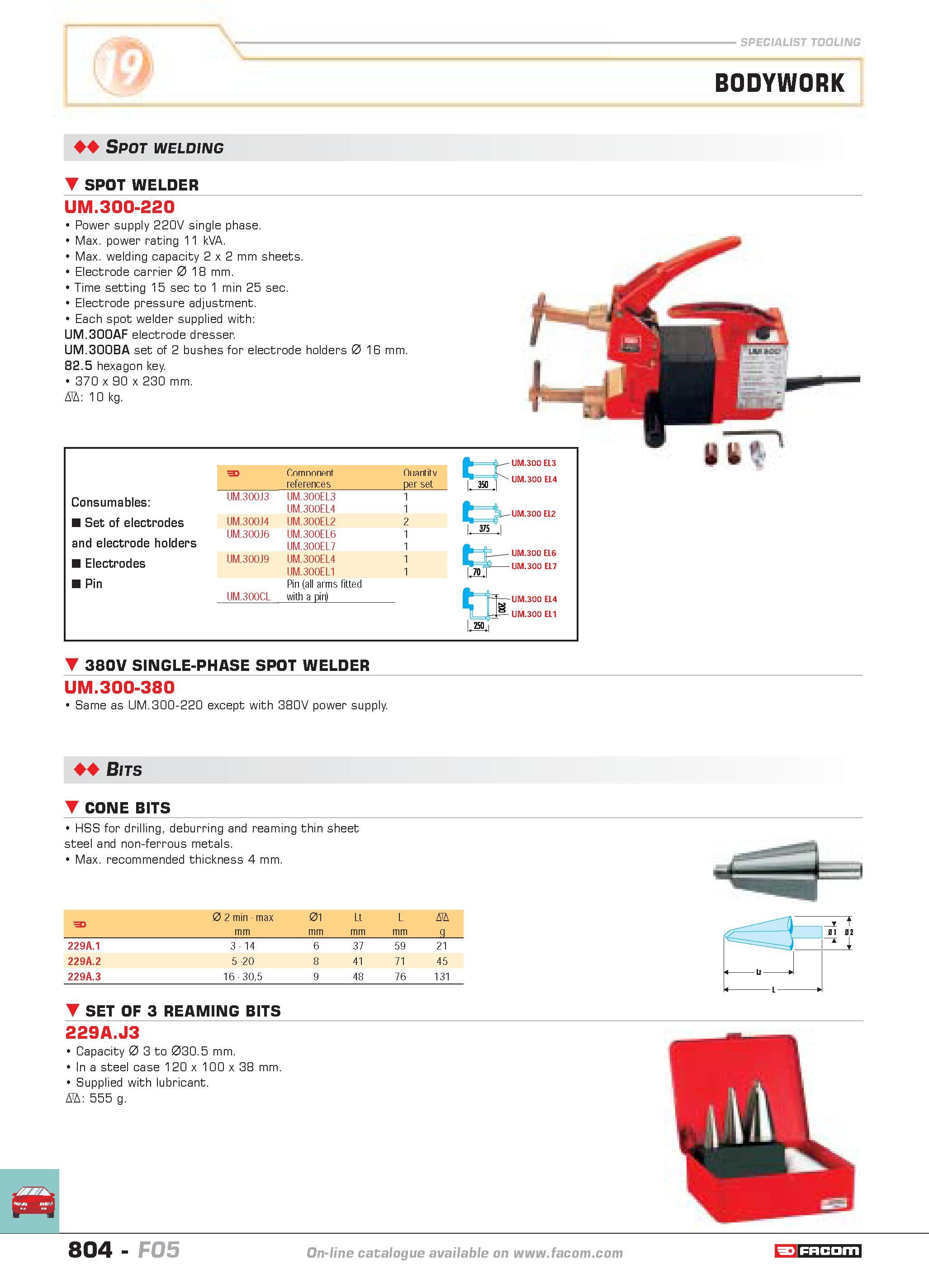

SPECIALIST TOOLING BODYWORK Spot welding SPOT WELDER UM.300-220 Power supply 220V single phase. Max. power rating 11 kVA. Max. welding capacity 2 x 2 mm sheets. Electrode carrier 0 18 mm. Time setting 15 sec to 1 min 25 sec. Electrode pressure adjustment. Each spot welder supplied with UM.300AF electrode dresser. UM.300BA set of 2 bushes for electrode holders 0 16 mm. 82.5 hexagon key. 370 x 90 x 230 mm. D 10 kg. Consumables Set of electrodes and electrode holders Electrodes Pin F Component references Quantity per set UM.300J3 UM.300EL3 1 UM.300EL4 1 UM.300J4 UM.300EL2 2 UM.300J6 UM.300EL6 1 UM.300EL7 1 UM.300J9 UM.300EL4 1 UM.300EL1 1 Pin (all arms fitted UM.300CL with a pin) UM.300 EL3 UM.300 EL4 UM.300 EL6 UM.300 EL7 UM.300 EL4 UM.300 EL1 u it r UM.300 EL2 380V SINGLE-PHASE SPOT WELDER UM.300-380 Same as UM.300-220 except with 380V power supply. Bits cone bits HSS for drilling deburring and reaming thin sheet steel and non-ferrous metals. Max. recommended thickness 4 mm. F 0 2 min max mm 01 mm Lt mm L mm D g 229A.1 3 14 6 37 59 21 229A.2 5 -20 8 41 71 45 229A.3 16 305 9 48 76 131 set OF 3 reaming bits 229A.J3 Capacity 0 3 to 030.5 mm. In a steel case 120 x 100 x 38 mm. Supplied with lubricant. D 555 g. 804 catalogue FACOM F05
