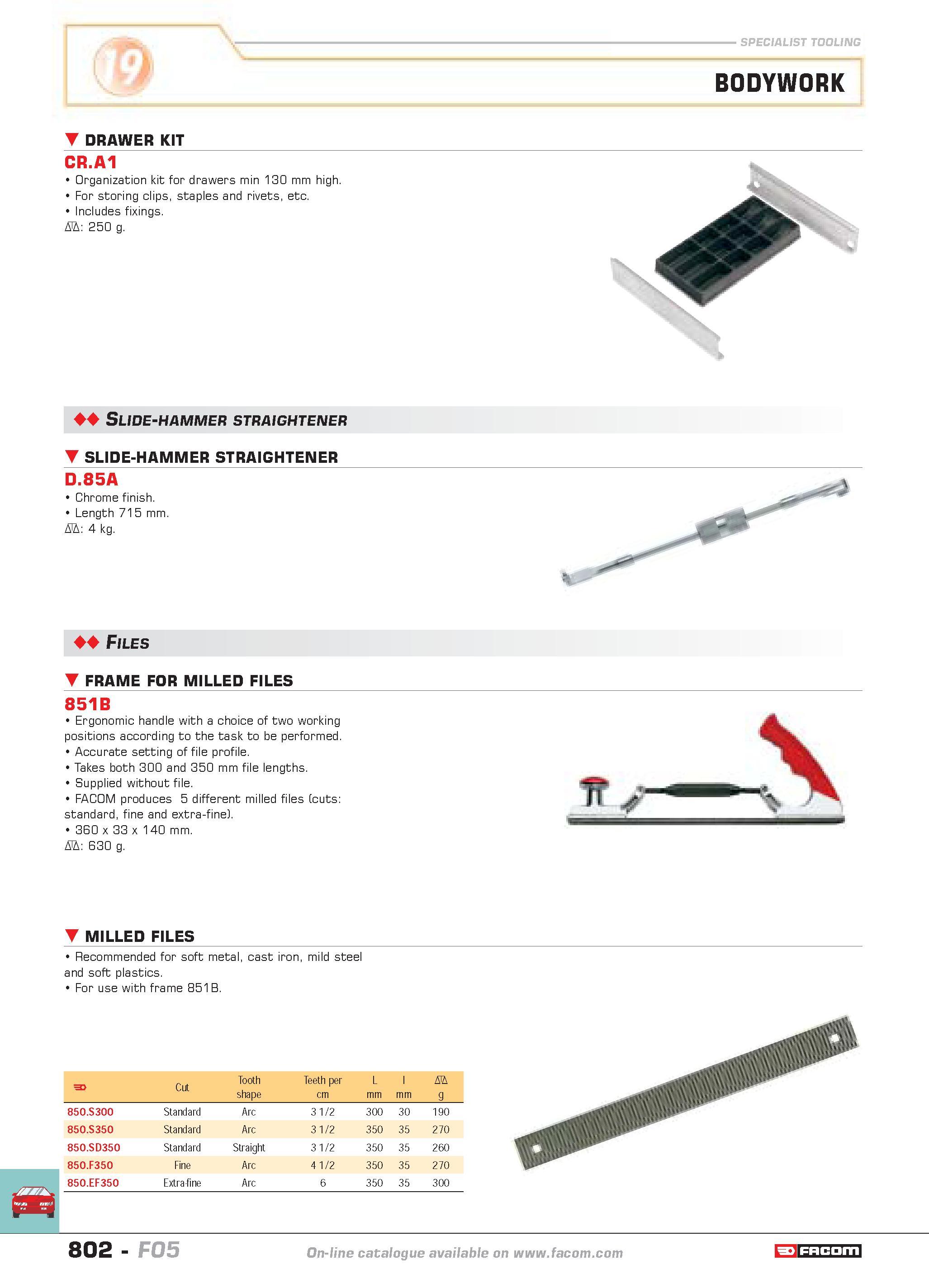

SPECIALIST TOOLING BODYWORK DRAWER KIT CR.A1 Organization kit for drawers min 130 mm high For storing clips staples and rivets etc. Includes fixings. D 250 g. Slide-hammer straightener SLIDE-HAMMER STRAIGHTENER D.85A Chrome finish. Length 715 mm. D 4 kg. Files FRAME FOR MILLED FILES 851B Ergonomic handle with a choice of two working positions according to the task to be performed. Accurate setting of file profile. Takes both 300 and 350 mm file lengths. Supplied without file. FACOM produces 5 different milled files (cuts standard fine and extra-fine). 360 x 33 x 140 mm. D 630 g. MILLED FILES Recommended for soft metal cast iron mild steel and soft plastics. For use with frame 851B. F Cut Tooth shape Teeth per cm L mm l mm D g 850.S300 Standard Arc 3 1 2 300 30 190 850.S350 Standard Arc 3 1 2 350 35 270 850.SD350 Standard Straight 3 1 2 350 35 260 850.F350 Fine Arc 4 1 2 350 35 270 850.EF350 Extra-fine Arc 6 350 35 300 802 catalogue FACOM F05
