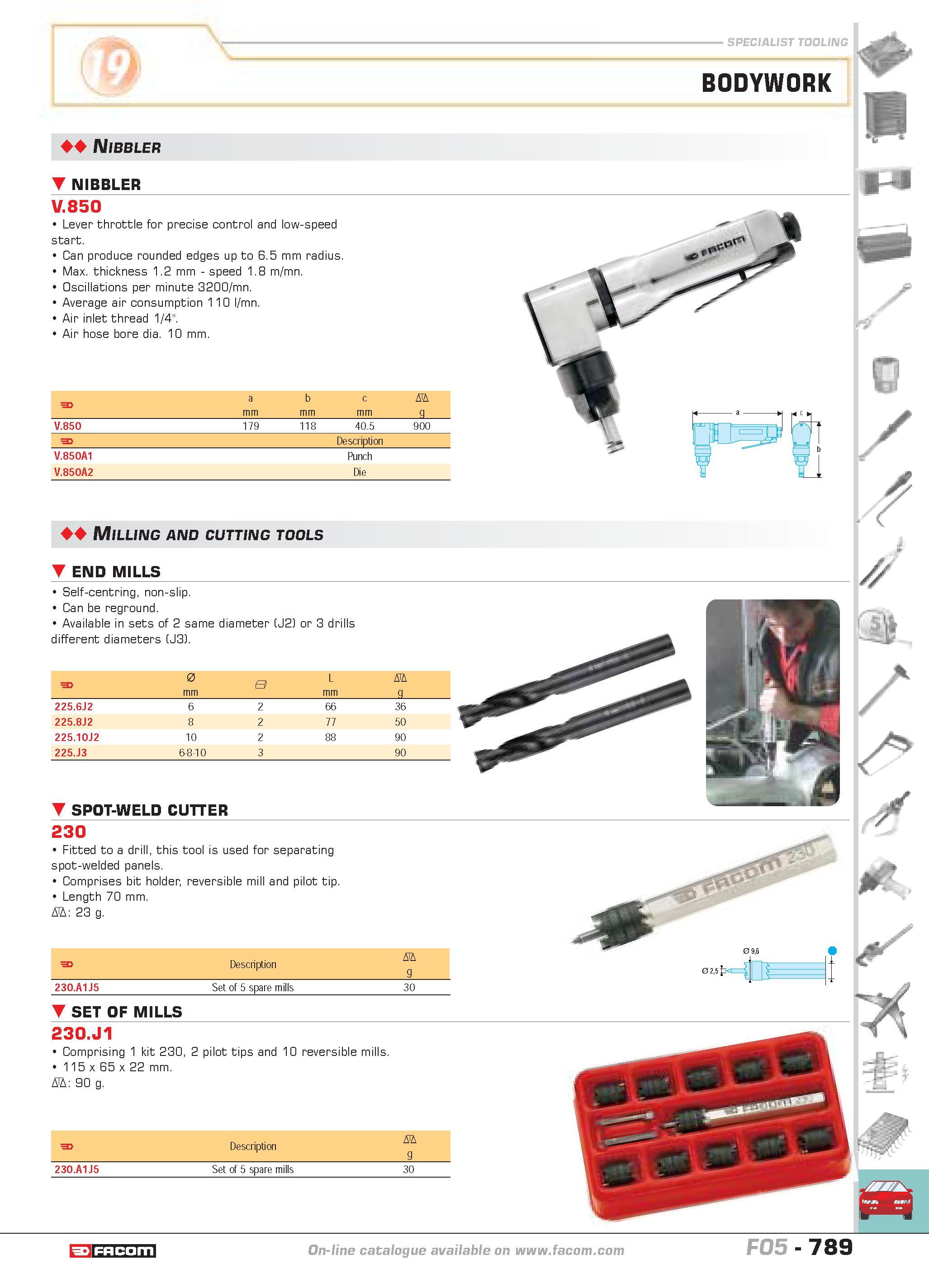

SPECIALIST TOOLING Nibbler NIBBLER BODYWORK V.850 Lever throttle for precise control and low-speed start. Can produce rounded edges up to 6.5 mm radius. Max. thickness 1.2 mm speed 1.8 m mn. Oscillations per minute 3200 mn. Average air consumption 110 l mn. Air inlet thread 1 4". Air hose bore dia. 10 mm. F a mm b mm c mm D g V.850 179 118 40.5 900 F Description V.850A1 Punch V.850A2 Die Milling and cutting tools END MILLS Self-centring non-slip. Can be reground. Available in sets of 2 same diameter (J2) or 3 drills different diameters (J3). F 0 mm t L mm NA g 225.6J2 6 2 66 36 225.8J2 8 2 77 50 225.10J2 10 2 88 90 225.J3 6-8-10 3 90 SPOT-WELD CUTTER 230 Fitted to a drill this tool is used for separating spot-welded panels. Comprises bit holder reversible mill and pilot tip. Length 70 mm. D 23 g. F Description D g 230.A1J5 Set of 5 spare mills 30 SET OF MILLS 230.J1 Comprising 1 kit 230 2 pilot tips and 10 reversible mills. 115 x 65 x 22 mm. D 90 g. F Description g 230.A1J5 Set of 5 spare mills 30 EUHnm On-fine catalogue available on FACOM F05 789
