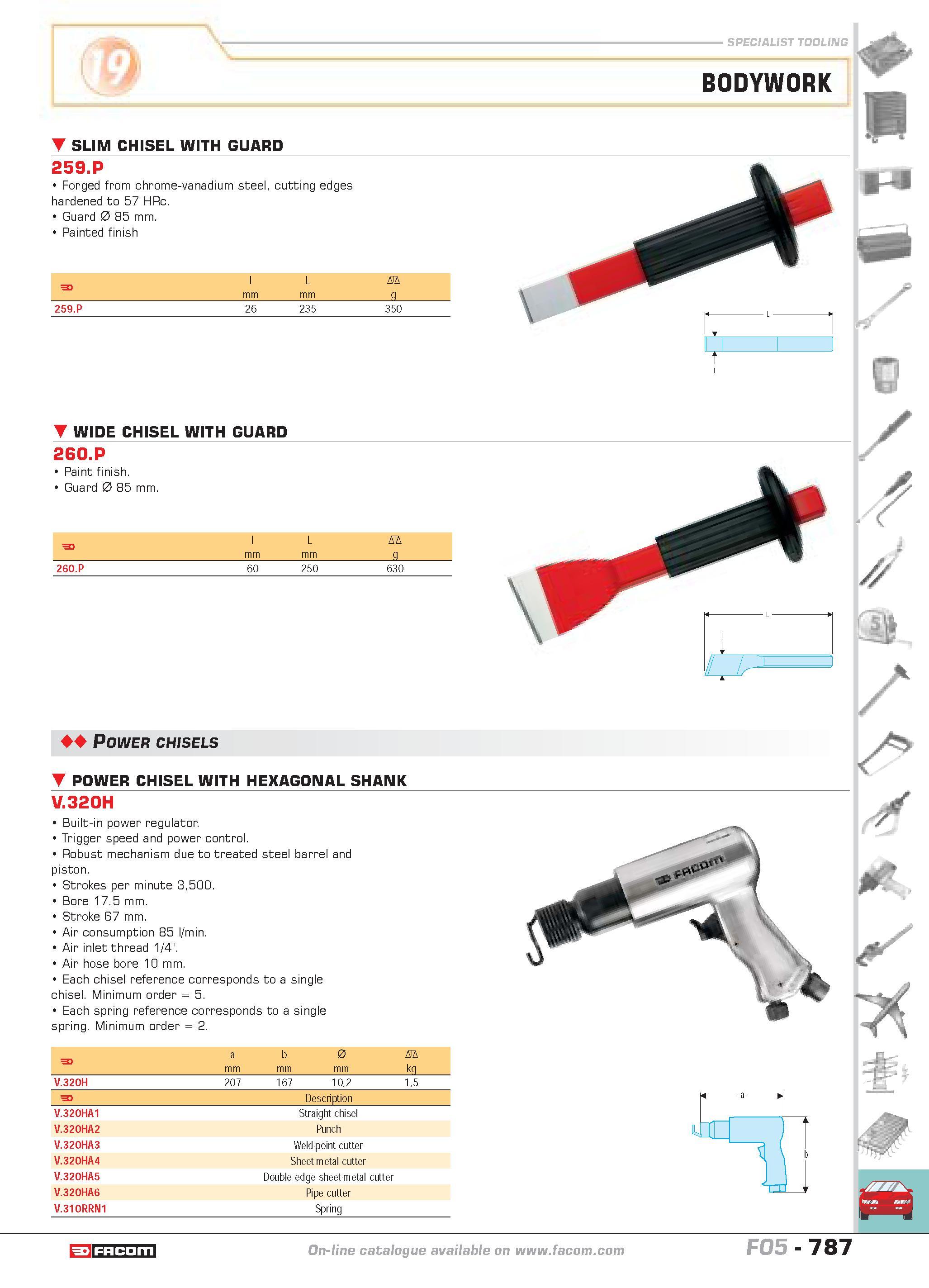

SPECIALIST TOOLING BODYWORK SLIM CHISEL WITH GUARD P 259.P Forged from chrome-vanadium steel cutting edges hardened to 57 HRc. Guard 0 85 mm. Painted finish I L D F mm g 259.P 26 235 350 WIDE CHISEL WITH GUARD 260.P Paint finish. Guard 0 85 mm. L mm Power chisels POWER CHISEL WITH HEXAGONAL SHANK V.320H Built-in power regulator. Trigger speed and power control. Robust mechanism due to treated steel barrel and piston. Strokes per minute 3500. Bore 17.5 mm. Stroke 67 mm. Air consumption 85 l min. Air inlet thread 1 4". Air hose bore 10 mm. Each chisel reference corresponds to a single chisel. Minimum order 5. Each spring reference corresponds to a single spring. Minimum order 2. F a b 0 D mm kg V.320H 207 167 102 15 F Description V.320HA1 Straight chisel V.320HA2 Punch V.320HA3 Weld-point cutter V.320HA4 Sheet-metal cutter V.320HA5 Double edge sheet-metal cutter V.320HA6 Pipe cutter V.310RRN1 Spring D F mm g 60 250 630 catalogue FACOM F05 787
