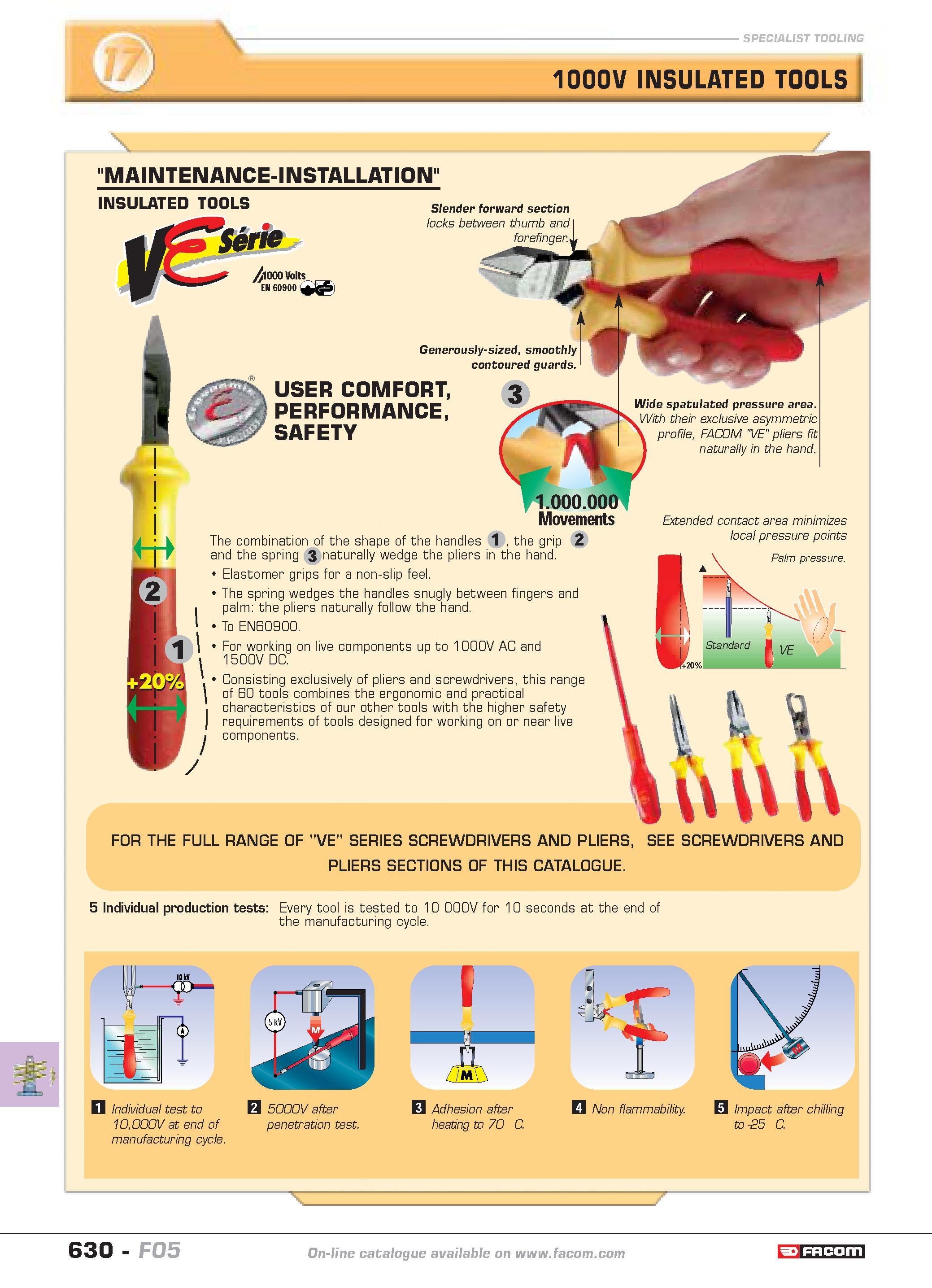

SPECIALIST TOOLING 1000V INSULATED TOOLS "MAINTENANCE-INSTALLATION" INSULATED TOOLS jfil000 Volts EN 60900 Slender forward section locks between thumb and forefinger.- USER COMFORT PERFORMANCE SAFETY Generously-sized smoothly contoured guards. Wide spatulated pressure area. With their exclusive asymmetric profile FACOM "VE" pliers fit naturally in the hand. Extended contact area minimizes local pressure points Palm pressure. kkj j Standard I VE 20% .000.00 Movements The combination of the shape of the handles 1 the grip 2 and the spring 3 naturally wedge the pliers in the hand. Elastomer grips for a non-slip feel. The spring wedges the handles snugly between fingers and palm the pliers naturally follow the hand. To ENB0900. For working on live components up to 1000V AC and 1500V DC. Consisting exclusively of pliers and screwdrivers this range of 60 tools combines the ergonomic and practical characteristics of our other tools with the higher safety requirements of tools designed for working on or near live components. FOR THE FULL RANGE OF "VE" SERIES SCREWDRIVERS AND PLIERS SEE SCREWDRIVERS AND PLIERS SECTIONS OF THIS CATALOGUE. 5 Individual production tests Every tool is tested to 10 000V for 10 seconds at the end of the manufacturing cycle. 630 catalogue FACOM F05
