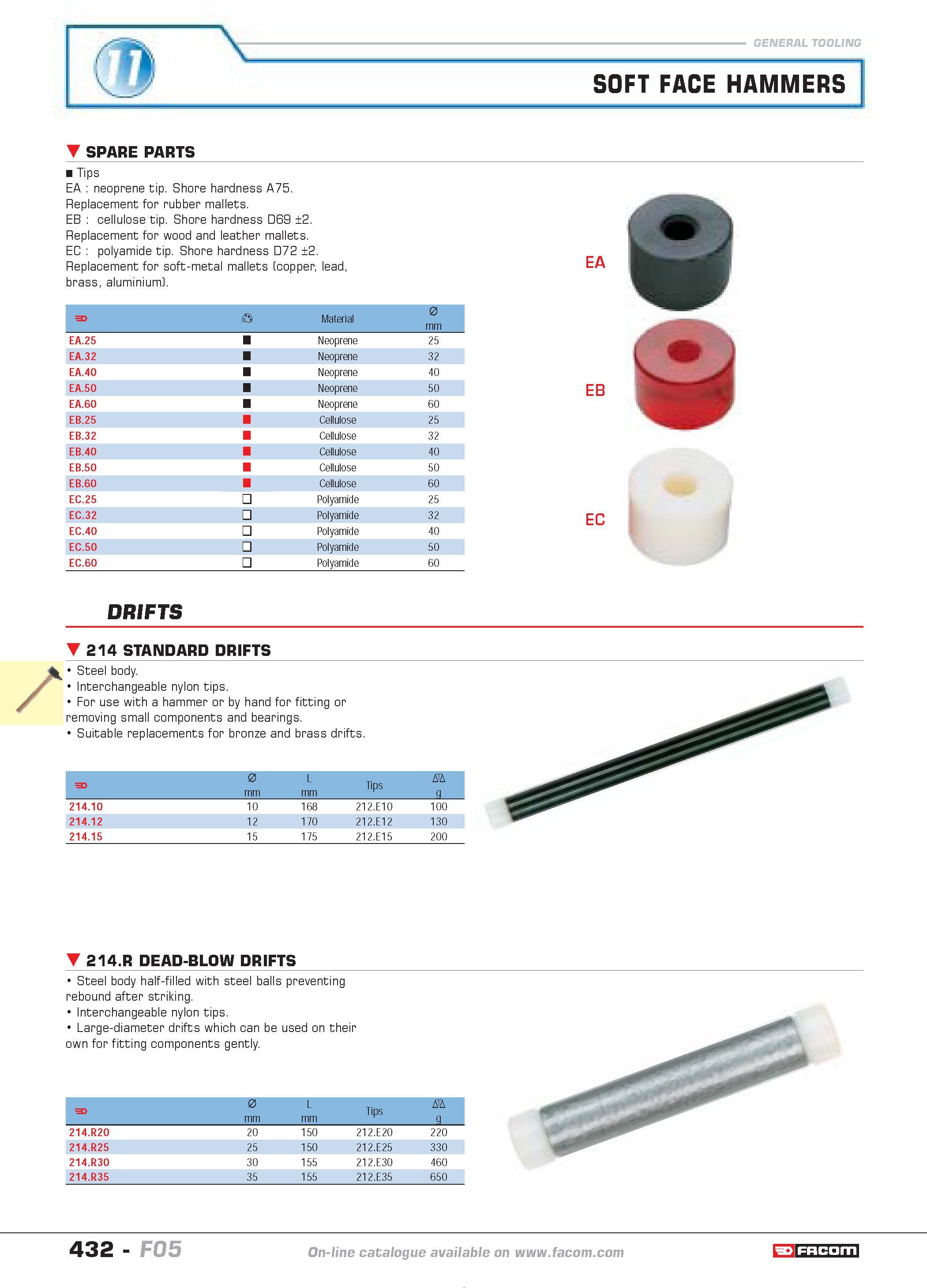

SOFT FACE HAMMERS SPARE PARTS Tips EA neoprene tip. Shore hardness A75. Replacement for rubber mallets. EB cellulose tip. Shore hardness D69 2. Replacement for wood and leather mallets. EC polyamide tip. Shore hardness D72 2. Replacement for soft-metal mallets (copper lead brass aluminium). F j Material 0 mm EA.25 Neoprene 25 EA.32 Neoprene 32 EA.40 Neoprene 40 EA.50 Neoprene 50 EA.60 Neoprene 60 EB.25 Cellulose 25 EB.32 Cellulose 32 EB.40 Cellulose 40 EB.50 Cellulose 50 EB.60 Cellulose 60 EC.25 Polyamide 25 EC.32 Polyamide 32 EC.40 Polyamide 40 EC.50 Polyamide 50 EC.60 Polyamide 60 EA EB EC DRIFTS 214 STANDARD DRIFTS Steel body Interchangeable nylon tips. For use with a hammer or by hand for fitting or removing small components and bearings. Suitable replacements for bronze and brass drifts. F 0 mm L mm Tips D g 214.10 10 168 212.E10 100 214.12 12 170 212.E12 130 214.15 15 175 212.E15 200 214.R DEAD-BLOW DRIFTS Steel body half-filled with steel balls preventing rebound after striking. Interchangeable nylon tips. Large-diameter drifts which can be used on their own for fitting components gently F 0 mm L mm Tips D g 214.R20 20 150 212.E20 220 214.R25 25 150 212.E25 330 214.R30 30 155 212.E30 460 214.R35 35 155 212.E35 650 432 catalogue FACOM F05
