Слесарно-монтажный ручной инструмент / Hand tools FACOM | Каталог FACOM 2005 Профессиональный ручной инструмент (Всего 899 стр.) |
|||||
427 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.430 |
|||||

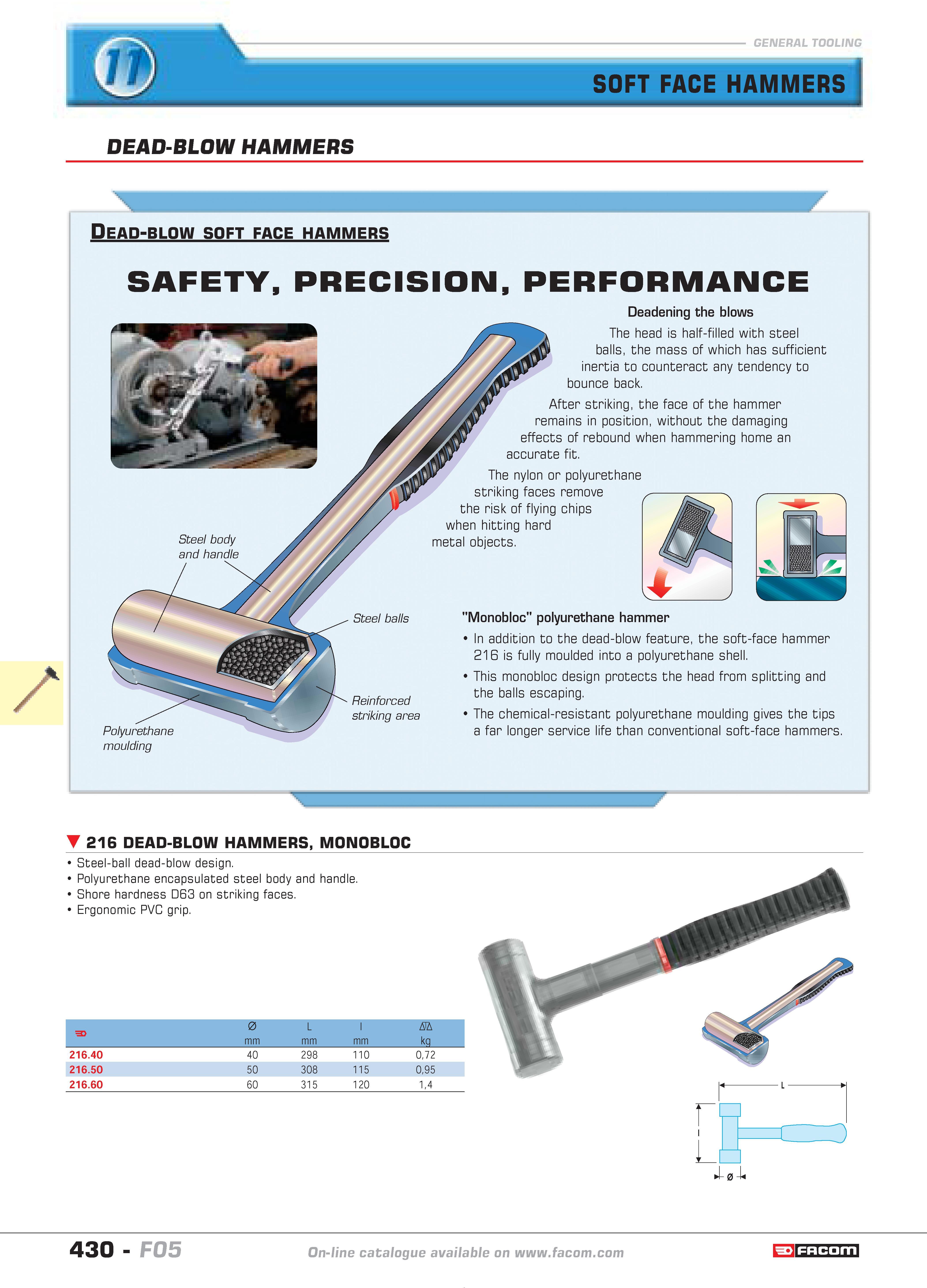

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 430 0427 ENG Lab2u SOFT FACE HAMMERS DEAD-BLOW HAMMERS H r.. Dead-blow soft face hammers SAFETY PRECISION PERFORMANCE Deadening the blows The head is half-filled with steel balls the mass of which has sufficient w inertia to counteract any tendency to bounce back. After striking the face of the hammer remains in position without the damaging effects of rebound when hammering home an accurate fit. The nylon or polyurethane striking faces remove the risk of flying chips when hitting hard metal objects. Reinforced striking area Polyurethane moulding "Monobloc" polyurethane hammer In addition to the dead-blow feature the soft-face hammer 216 is fully moulded into a polyurethane shell. This monobloc design protects the head from splitting and the balls escaping. The chemical-resistant polyurethane moulding gives the tips a far longer service life than conventional soft-face hammers. 216 DEAD-BLOW HAMMERS MONOBLOC Steel-ball dead-blow design. Polyurethane encapsulated steel body and handle. Shore hardness D63 on striking faces. Ergonomic PVC grip. 0 L 1 D F mm kg 216.40 40 298 110 072 216.50 50 308 115 095 216.60 60 315 120 14 430 catalogue FACOM F05 d I 4 I I |
|||||
