350 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.353

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 353 0350 ENG Lab2u

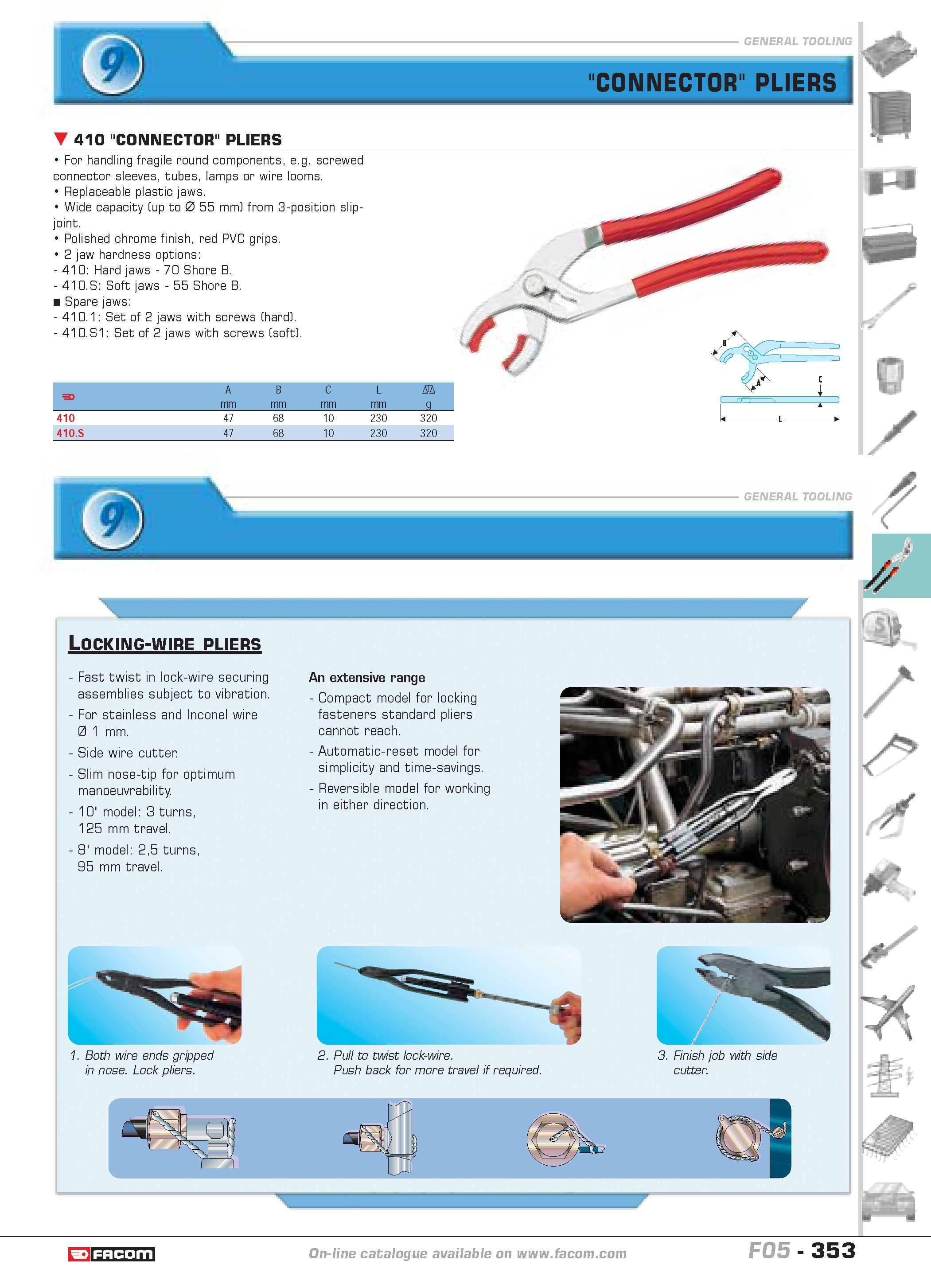

CONNECTOR" PLIERS 410 "CONNECTOR" PLIERS For handling fragile round components e.g. screwed connector sleeves tubes lamps or wire looms. Replaceable plastic jaws. Wide capacity (up to 0 55 mm) from 3-position slip-joint. Polished chrome finish red PVC grips. 2 jaw hardness options 410 Hard jaws 70 Shore B. 410.S Soft jaws 55 Shore B. Spare jaws 410.1 Set of 2 jaws with screws (hard). 410.S1 Set of 2 jaws with screws (soft). F A B C D mm g 410 47 68 10 230 320 410.S 47 68 10 230 320 Locking-wire pliers r Fast twist in lock-wire securing assemblies subject to vibration. For stainless and Inconel wire 0 1 mm. Side wire cutter. Slim nose-tip for optimum manoeuvrability. 10" model 3 turns 125 mm travel. 8" model 25 turns 95 mm travel. An extensive range Compact model for locking fasteners standard pliers cannot reach. Automatic-reset model for simplicity and time-savings. Reversible model for working in either direction. 1. Both wire ends gripped in nose. Lock pliers. 2. Pull to twist lock-wire. Push back for more travel if required. 3. Finish job with side cutter. I d M catalogue FACOM F05 353
