347 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.350

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 350 0347 ENG Lab2u

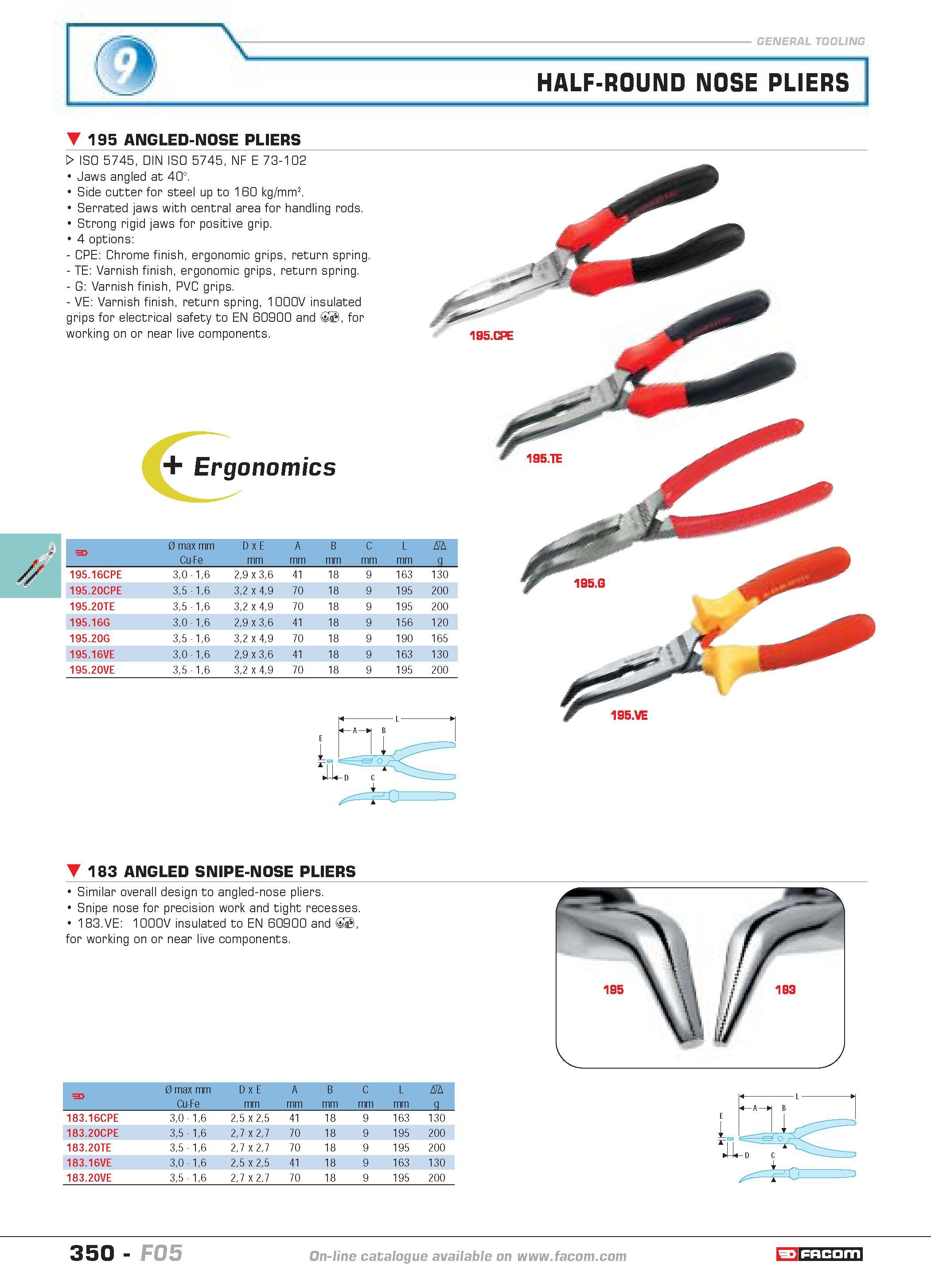

HALF-ROUND NOSE PLIERS 195 ANGLED-NOSE PLIERS W ISO 5745 DIN ISO 5745 NF E 73-102 Jaws angled at 40. Side cutter for steel up to 160 kg mm2. Serrated jaws with central area for handling rods. Strong rigid jaws for positive grip. 4 options CPE Chrome finish ergonomic grips return spring. TE Varnish finish ergonomic grips return spring. G Varnish finish PVC grips. VE Varnish finish return spring 1000V insulated grips for electrical safety to EN 60900 and A for working on or near live components. Ergonomics m 0 max mm D x E A B C L D Cu-Fe mm g 195.16CPE 30 16 29 36 41 18 9 163 130 195.20CPE 35 16 32 49 70 18 9 195 200 195.20TE 35 16 32 49 70 18 9 195 200 195.16G 30 16 29 36 41 18 9 156 120 195.20G 35 16 32 49 70 18 9 190 165 195.16VE 30 16 29 36 41 18 9 163 130 195.20VE 35 16 32 49 70 18 9 195 200 183 ANGLED SNIPE-NOSE PLIERS Similar overall design to angled-nose pliers. Snipe nose for precision work and tight recesses. 183.VE 1000V insulated to EN 60900 and A for working on or near live components. 0 max mm D x E A B C L D Cu-Fe mm g 183.16CPE 30 16 25 x 25 41 18 9 163 130 183.20CPE 35 16 27 x 27 70 18 9 195 200 183.20TE 35 16 27 x 27 70 18 9 195 200 183.16VE 30 16 25 x 25 41 18 9 163 130 183.20VE 35 16 27 x 27 70 18 9 195 200 350 catalogue FACOM F05
