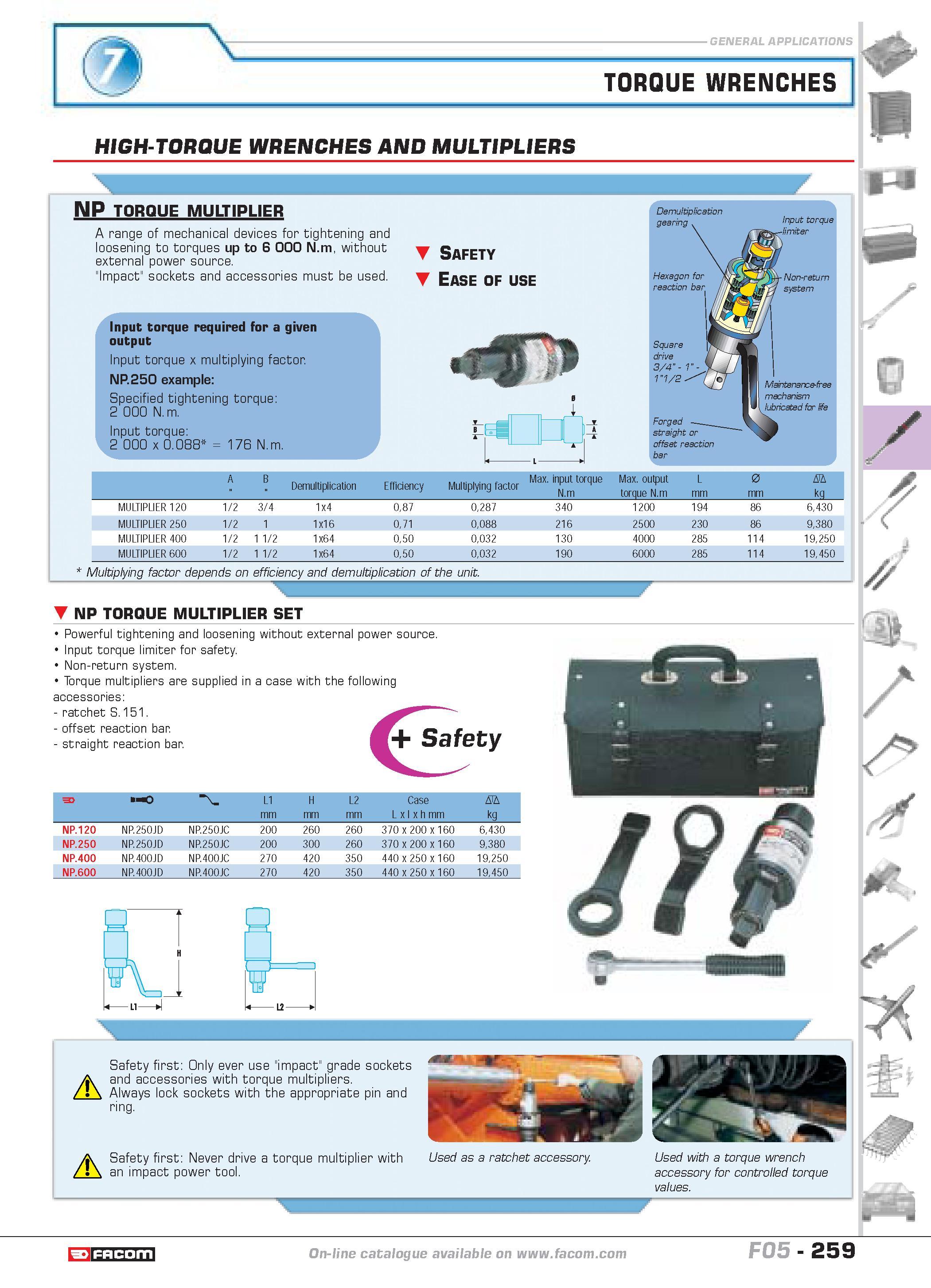

TORQUE WRENCHES v HIGH-TORQUE WRENCHES AND MULTIPLIERS n NP TORQUE MULTIPLIER A range of mechanical devices for tightening and loosening to torques up to 6 000 N.m without external power source. "Impact" sockets and accessories must be used. Input torque required for a given output Input torque x multiplying factor. NP.250 example Specified tightening torque 2 000 N.m. Safety Ease of use Demultiplication gearing Hexagon for reaction bar Input torque 2 000 x 0.088 176 N.m. Square drive 3/4" -V'1 2 Forged straight or offset reaction bar Input torque limiter Non-return system Maintenance-free mechanism lubricated for life u Multiplying factor depends on efficiency and demuitipiication of the unit. NP TORQUE MULTIPLIER SET Powerful tightening and loosening without external power source Input torque limiter for safety. Non-return system. Torque multipliers are supplied in a case with the following accessories ratchet S.151. offset reaction bar straight reaction bar. Safety F m M L1 H L2 Case D mm L x l x h mm kg NP.120 NP.250JD NP.250JC 200 260 260 370 x 200 x 160 6430 NP.250 NP.250JD NP.250JC 200 300 260 370 x 200 x 160 9380 NP.400 NP.400JD NP.400JC 270 420 350 440 x 250 x 160 19250 NP.600 NP.400JD NP.400JC 270 420 350 440 x 250 x 160 19450 P a A A Safety first Only ever use "impact" grade sockets and accessories with torque multipliers. Always lock sockets with the appropriate pin and ring. Safety first Never drive a torque multiplier with an impact power tool. A B Demultiplication Efficiency Multiplying factor Max. input torque N.m Max. output torque N.m L mm 0 mm D kg MULTIPLIER 120 1 2 3 4 1x4 087 0287 340 1200 194 86 6430 MULTIPLIER 250 1 2 1x16 071 0088 216 2500 230 86 9380 MULTIPLIER 400 1 2 1 1 2 1x64 050 0032 130 4000 285 114 19250 MULTIPLIER 600 1 2 1 1 2 1x64 050 0032 190 6000 285 114 19450 w catalogue FACOM F05 259
