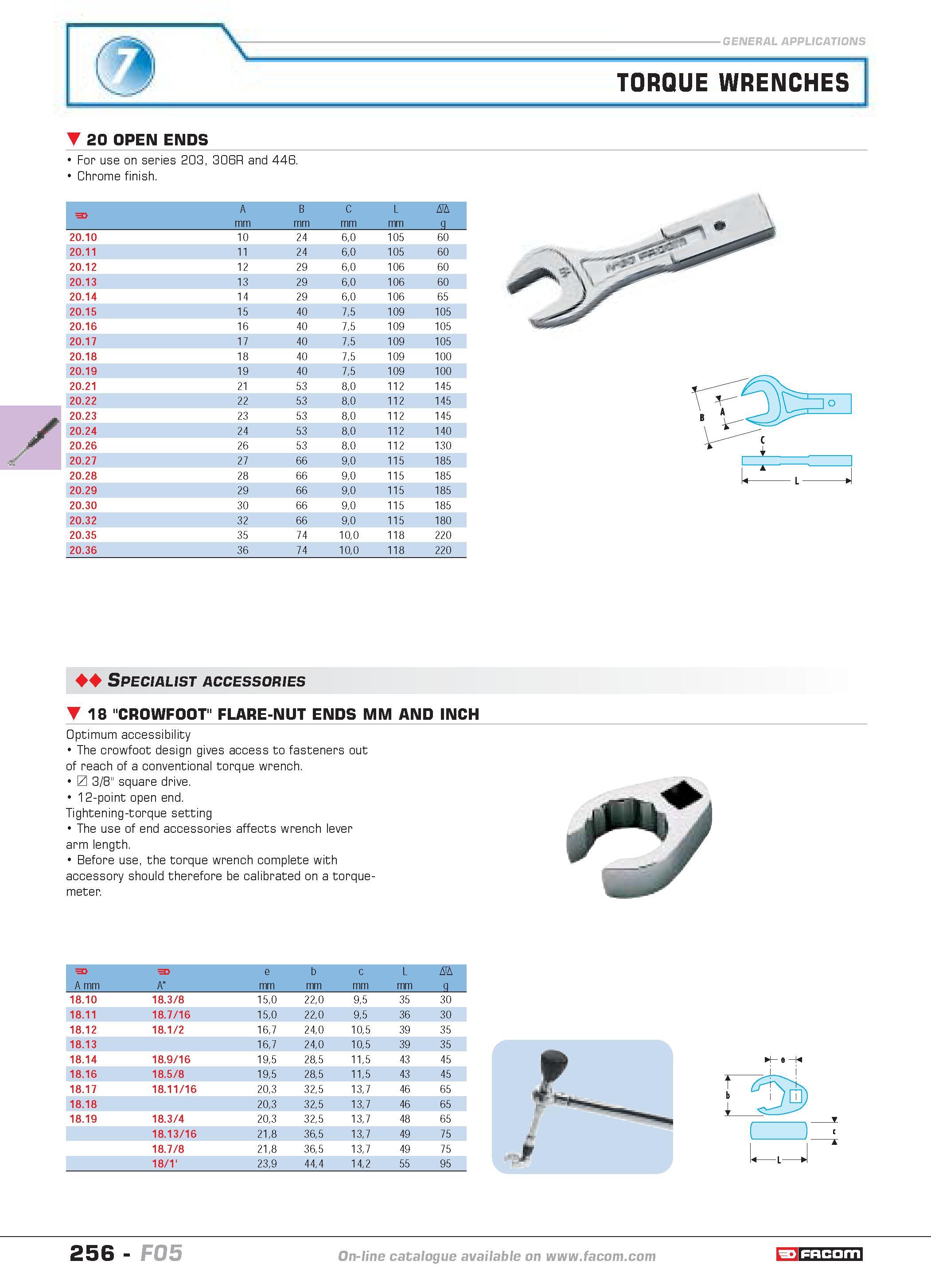

TORQUE WRENCHES 20 OPEN ENDS For use on series 203 306R and 446. Chrome finish. F A mm B mm C mm D g 20.10 10 24 60 105 60 20.11 11 24 60 105 60 20.12 12 29 60 106 60 20.13 13 29 60 106 60 20.14 14 29 60 106 65 20.15 15 40 75 109 105 20.16 16 40 75 109 105 20.17 17 40 75 109 105 20.18 18 40 75 109 100 20.19 19 40 75 109 100 20.21 21 53 80 112 145 20.22 22 53 80 112 145 20.23 23 53 80 112 145 20.24 24 53 80 112 140 20.26 26 53 80 112 130 20.27 27 66 90 115 185 20.28 28 66 90 115 185 20.29 29 66 90 115 185 20.30 30 66 90 115 185 20.32 32 66 90 115 180 20.35 35 74 100 118 220 20.36 36 74 100 118 220 44 Specialist accessories 18 "CROWFOOT" FLARE-NUT ENDS MM AND INCH Optimum accessibility The crowfoot design gives access to fasteners out of reach of a conventional torque wrench. L 3/8" square drive. 12-point open end. Tightening-torque setting The use of end accessories affects wrench lever arm length. Before use the torque wrench complete with accessory should therefore be calibrated on a torque- meter F F e b c L D A mm A" mm g 18.10 18.3 8 150 220 95 35 30 18.11 18.7 16 150 220 95 36 30 18.12 18.1 2 167 240 105 39 35 18.13 167 240 105 39 35 18.14 18.9 16 195 285 115 43 45 18.16 18.5 8 195 285 115 43 45 18.17 18.11 16 203 325 137 46 65 18.18 203 325 137 46 65 18.19 18.3 4 203 325 137 48 65 18.13 16 218 365 137 49 75 18.7 8 218 365 137 49 75 18 1' 239 444 142 55 95 256 catalogue FACOM F05
