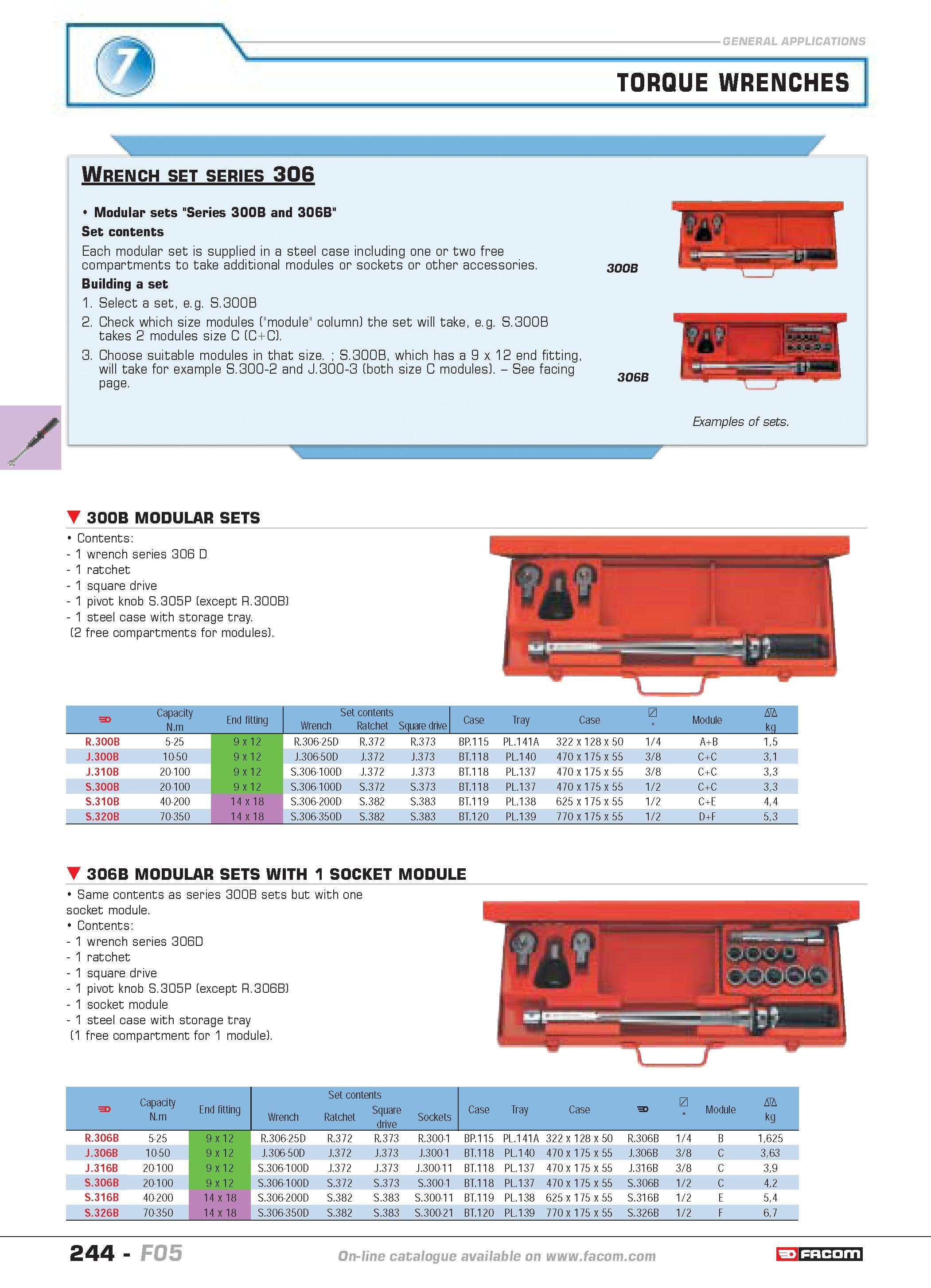

TORQUE WRENCHES Wrench set series 306 Modular sets "Series 300B and 306B" Set contents Each modular set is supplied in a steel case including one or two free compartments to take additional modules or sockets or other accessories. Building a set 1. Select a set e.g. S.300B 2. Check which size modules ("module" column) the set will take e.g. S.300B takes 2 modules size C (C+C). 3. Choose suitable modules in that size. S.300B which has a 9 x 12 end fitting will take for example S.300-2 and J.300-3 (both size C modules). See facing page. 300B 306B Examples of sets. 300B MODULAR SETS Contents 1 wrench series 306 D 1 ratchet 1 square drive 1 pivot knob S.305P (except R.300B 1 steel case with storage tray. (2 free compartments for modules). F Capacity N.m End fitting Set contents Wrench Ratchet Square drive Case Tray Case L Module D kg R.300B 5-25 9 x 12 R.306-25D R.372 R.373 BP. 115 PL.141A 322 x 128 x 50 1 4 A+B 15 J.300B 10-50 9 x 12 J.306-50D J.372 J.373 BT.118 PL.140 470 x 175 x 55 3 8 C+C 31 J.310B 20-100 9 x 12 S.306-100D J.372 J.373 BT.118 PL.137 470 x 175 x 55 3 8 C+C 33 S.300B 20-100 9 x 12 S.306-100D S.372 S.373 BT.118 PL.137 470 x 175 x 55 1 2 C+C 33 S.310B 40-200 14 18 S.306-200D S.382 S.383 BT.119 PL.138 625 x 175 x 55 1 2 C+E 44 S.320B 70-350 14 18 S.306-350D S.382 S.383 BT.120 PL.139 770 x 175 x 55 1 2 D+F 53 306B MODULAR SETS WITH 1 SOCKET MODULE Same contents as series 300B sets but with one socket module. Contents 1 wrench series 306D 1 ratchet 1 square drive 1 pivot knob S.305P (except R.306B) 1 socket module 1 steel case with storage tray (1 free compartment for 1 module). Capacity N.m Set contents L D kg F End fitting Wrench Ratchet Square drive Sockets Case Tray Case F Module R.306B 5-25 9 x 12 R.306-25D R.372 R.373 R.300-1 BP. 115 PL.141A 322 x 128 x 50 R.306B 1 4 B 1625 J.306B 10-50 9 x 12 J.306-50D J.372 J.373 J.300-1 BT. 18 PL.140 470 x 175 x 55 J.306B 3 8 C 363 J.316B 20-100 9 x 12 S.306-100D J.372 J.373 J.300-11 BT. 18 PL.137 470 x 175 x 55 J.316B 3 8 C 39 S.306B 20-100 9 x 12 S.306-100D S.372 S.373 S.300-1 BT. 18 PL.137 470 x 175 x 55 S.306B 1 2 C 42 S.316B 40-200 14 18 S.306-200D S.382 S.383 S.300-11 BT. 19 PL.138 625 x 175 x 55 S.316B 1 2 E 54 S.326B 70-350 14 18 S.306-350D S.382 S.383 S.300-21 BT. 20 PL.139 770 x 175 x 55 S.326B 1 2 F 67 244 catalogue FACOM F05
