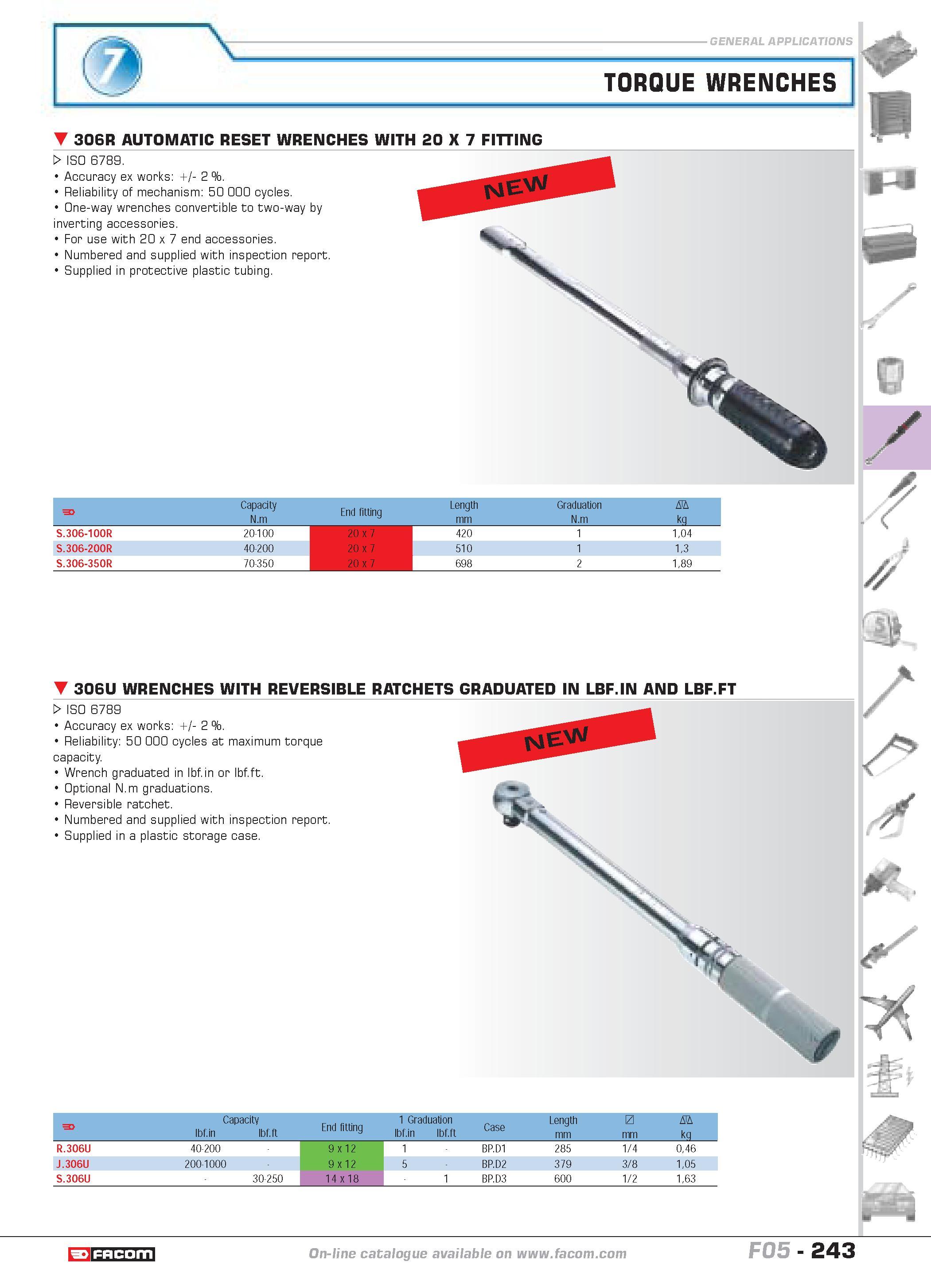

9 TORQUE WRENCHES 306R AUTOMATIC RESET WRENCHES WITH 20 X 7 FITTING W ISO 6789. Accuracy ex works 2 %. Reliability of mechanism 50 000 cycles. One-way wrenches convertible to two-way by inverting accessories. For use with 20 x 7 end accessories. Numbered and supplied with inspection report. Supplied in protective plastic tubing. F Capacity N.m End fitting Length mm Graduation D N.m kg S.306-100R 20-100 20 x 7 420 1 104 S.306-200R 40-200 20 x 7 510 1 13 S.306-350R 70-350 20 x 7 698 2 189 306U WRENCHES WITH REVERSIBLE RATCHETS GRADUATED IN LBF.IN AND LBF.FT W ISO 6789 Accuracy ex works 2 %. Reliability 50 000 cycles at maximum torque capacity. Wrench graduated in lbf.in or lbf.ft. Optional N.m graduations. Reversible ratchet. Numbered and supplied with inspection report. Supplied in a plastic storage case. F Capacity lbf.in lbf.ft End fitting 1 Graduation lbf.in lbf.ft Case Length mm L mm D kg R.306U 40-200 9 x 12 1 BP.D1 285 1 4 046 J.306U 200-1000 9 x 12 5 BP.D2 379 3 8 105 S.306U 30-250 14 18 1 BP.D3 600 1 2 163 catalogue FACOM F05 243 vV o 1
