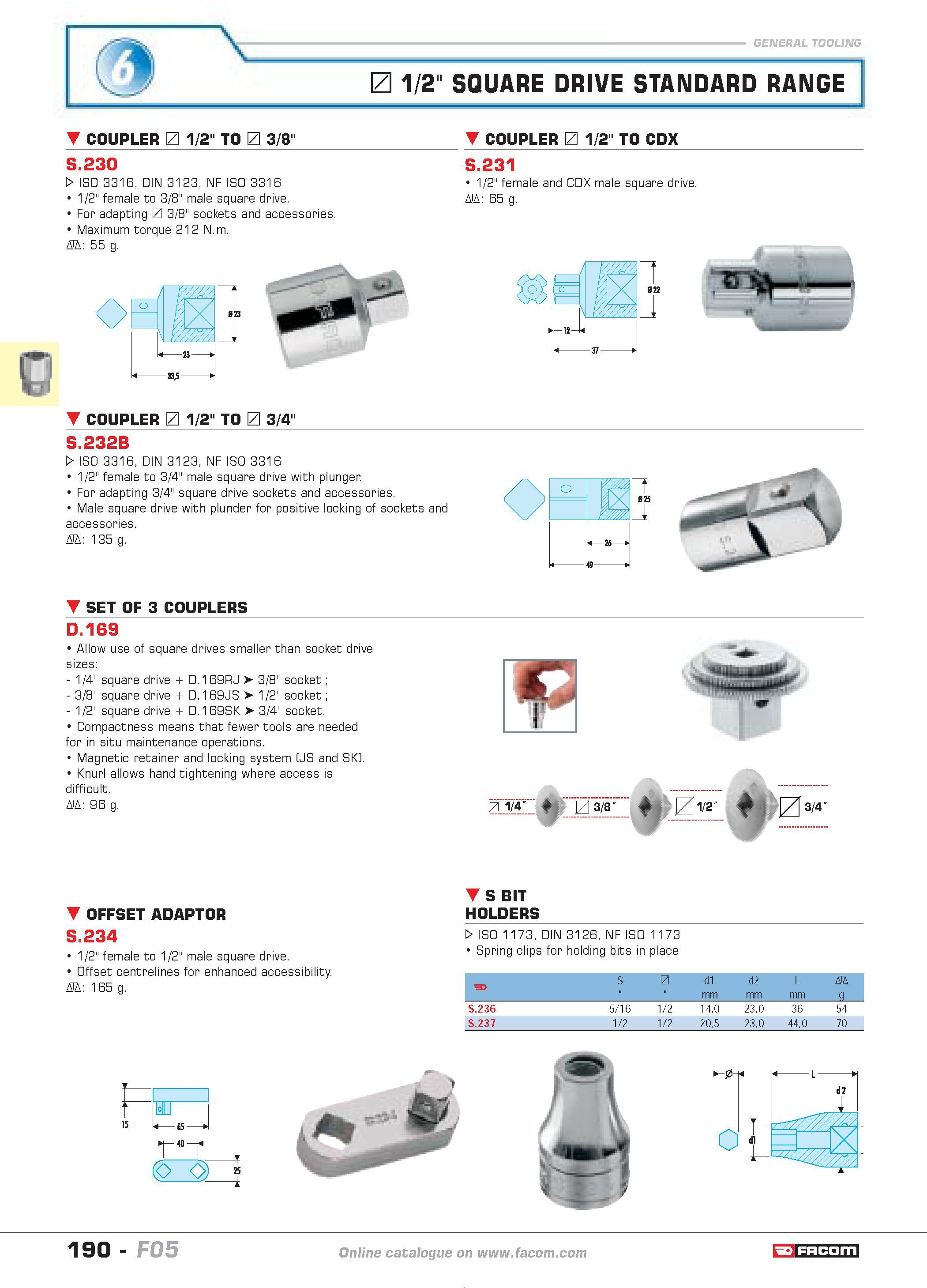

1/2" SQUARE DRIVE STANDARD RANGE COUPLER 1/2" TO L 3/8" COUPLER 1/2" TO CDX S.230 W ISO 3316 DIN 3123 NF ISO 3316 1/2" female to 3/8" male square drive For adapting L 3/8" sockets and accessories Maximum torque 212 N.m D 55 g. S.231 1/2" female and CDX male square drive D 65 g. G COUPLER 1/2" TO 3/4" S.232B W ISO 3316 DIN 3123 NF ISO 3316 1/2" female to 3/4" male square drive with plunger For adapting 3/4" square drive sockets and accessories Male square drive with plunder for positive locking of sockets and accessories D 135 g o iff 26 SET OF 3 COUPLERS D.169 Allow use of square drives smaller than socket drive sizes 1/4" square drive D169RJ Q 3/8" socket; 3/8" square drive D169JS Q 1/2" socket; 1/2" square drive D169SK Q 3/4" socket Compactness means that fewer tools are needed for in situ maintenance operations Magnetic retainer and locking system (JS and SK) Knurl allows hand tightening where access is difficult D 96 g 0 1 4 3 8' JZli g' 0w OFFSET ADAPTOR S BIT HOLDERS S.234 1/2" female to 1/2" male square drive Offset centrelines for enhanced accessibility D 165 g W ISO 1173 DIN 3126 NF ISO 1173 Spring clips for holding bits in place F S L dl mm d2 mm L mm D g S.236 5 16 1 2 140 230 36 54 S.237 1 2 1 2 205 230 440 70 lU 4 65 J (5 5 O dl 1- L d2 j TrT77Z 190 catalogue FACOM F05
