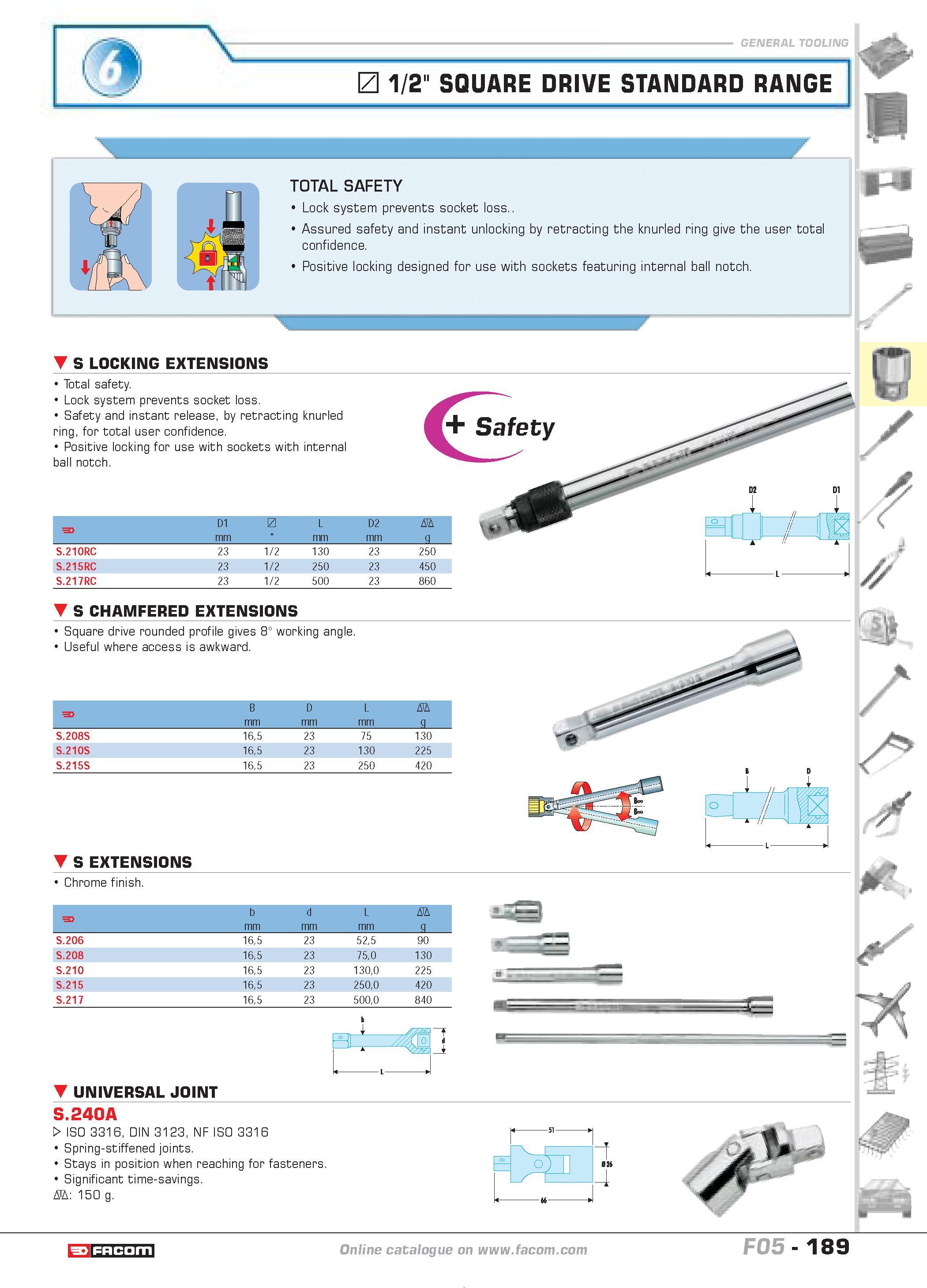

1/2" SQUARE DRIVE STANDARD RANGE TOTAL SAFETY Lock system prevents socket loss.. Assured safety and instant unlocking by retracting the knurled ring give the user total confidence. Positive locking designed for use with sockets featuring internal ball notch. S LOCKING EXTENSIONS Total safety. Lock system prevents socket loss. Safety and instant release by retracting knurled ring for total user confidence. Positive locking for use with sockets with internal ball notch. D1 L L D2 D F mm g S.210RC 23 1 2 130 23 250 S.215RC 23 1 2 250 23 450 S.217RC 23 1 2 500 23 860 S CHAMFERED EXTENSIONS Square drive rounded profile gives 8 working angle. Useful where access is awkward. B D L D mm g S.208S 165 23 75 130 S.210S 165 23 130 225 S.215S 165 23 250 420 S EXTENSIONS Chrome finish. F b mm d mm L mm D g S.206 165 23 525 90 S.208 165 23 750 130 S.210 165 23 1300 225 S.215 165 23 2500 420 S.217 165 23 5000 840 UNIVERSAL JOINT S.240A W ISO 3316 DIN 3123 NF ISO 3316 Spring-stiffened joints. Stays in position when reaching for fasteners. Significant time-savings. D 150 g. catalogue FACOM F05-189 I V V 93 t. i
