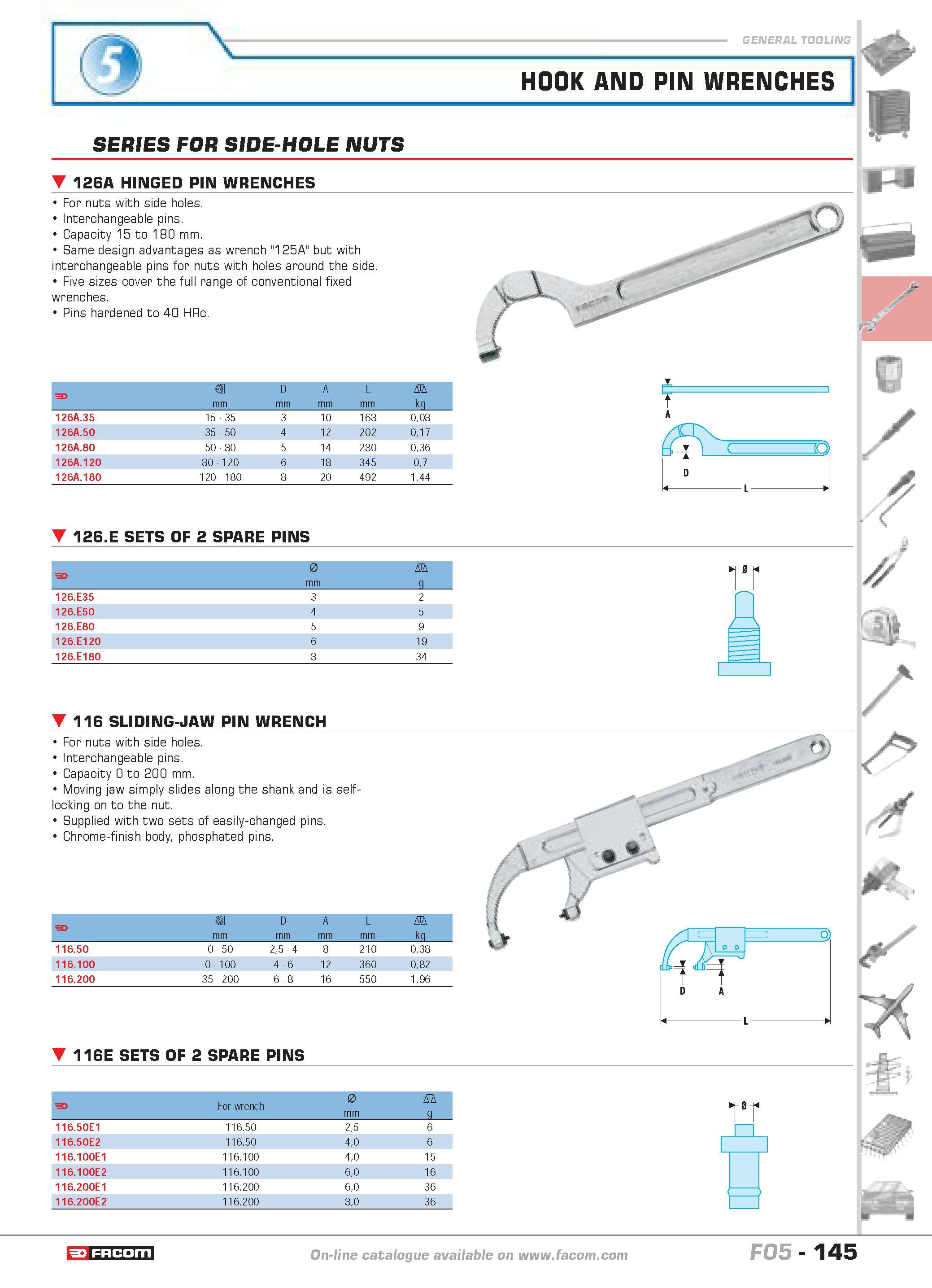

HOOK AND PIN WRENCHES SERIES FOR SIDE-HOLE NUTS 126A HINGED PIN WRENCHES For nuts with side holes. Interchangeable pins. Capacity 15 to 180 mm. Same design advantages as wrench "125A" but with interchangeable pins for nuts with holes around the side. Five sizes cover the full range of conventional fixed wrenches. Pins hardened to 40 HRc. F ( mm D A mm L mm D kq 126A.35 15 35 3 10 168 008 126A.50 35 50 4 12 202 017 126A.80 50 80 5 14 280 036 126A.120 80 120 6 18 345 07 126A.180 120 180 8 20 492 144 126.E SETS OF 2 SPARE PINS F 0 mm D q 126.E35 3 2 126.E50 4 5 126.E80 5 9 126.E120 6 19 126.E180 8 34 116 SLIDING-JAW PIN WRENCH For nuts with side holes. Interchangeable pins. Capacity 0 to 200 mm. Moving jaw simply slides along the shank and is selflocking on to the nut. Supplied with two sets of easily-changed pins. Chrome-finish body phosphated pins. ( D A L D F mm kq 116.50 0 50 25 4 8 210 038 116.100 0 100 4 6 12 360 082 116.200 35 200 8 6 16 550 196 116E SETS OF 2 SPARE PINS F For wrench 0 mm D q 116.50E1 116.50 25 6 116.50E2 116.50 40 6 116.100E1 116.100 40 15 116.100E2 116.100 60 16 116.200E1 116.200 60 36 116.200E2 116.200 80 36 catalogue FACOM F05-145
