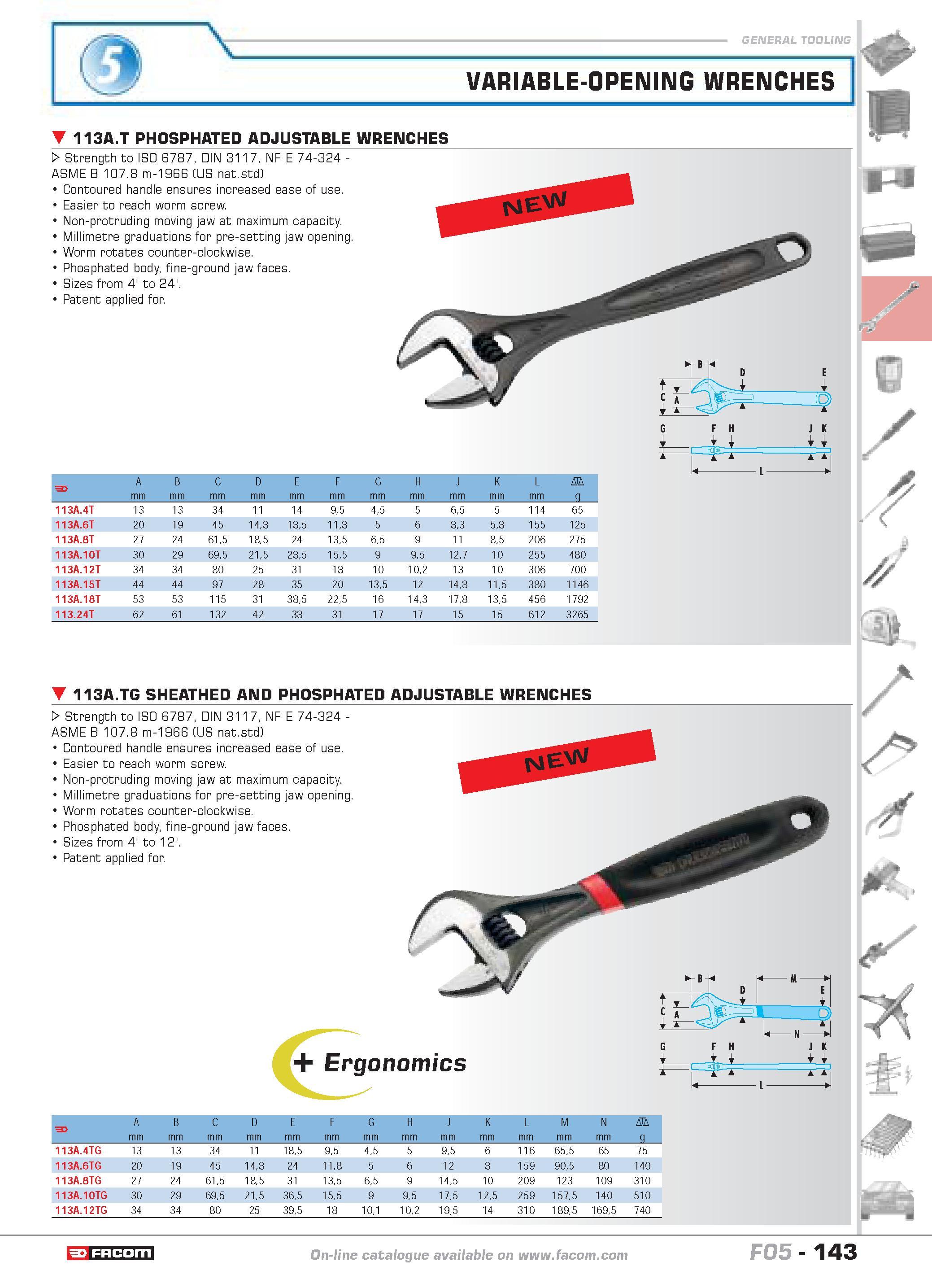

VARIABLE-OPENING WRENCHES ll 113A.T PHOSPHATED ADJUSTABLE WRENCHES W Strength to ISO 6787 DIN 3117 NF E 74-324 -ASME B 107.8 m-1966 (US nat.std Contoured handle ensures increased ease of use. Easier to reach worm screw. Non-protruding moving jaw at maximum capacity Millimetre graduations for pre-setting jaw opening. Worm rotates counter-clockwise. Phosphated body fine-ground jaw faces. Sizes from 4" to 24". Patent applied for. F A mm B mm C mm D mm E mm F mm G mm H mm J mm K mm L mm D q 113A.4T 13 13 34 11 14 95 45 5 65 5 114 65 113A.6T 20 19 45 148 185 118 5 6 83 58 155 125 113A.8T 27 24 615 185 24 135 65 9 11 85 206 275 113A.10T 30 29 695 215 285 155 9 95 127 10 255 480 113A.12T 34 34 80 25 31 18 10 102 13 10 306 700 113A.15T 44 44 97 28 35 20 135 12 148 115 380 1146 113A.18T 53 53 115 31 385 225 16 143 178 135 456 1792 113.24T 62 61 132 42 38 31 17 17 15 15 612 3265 113A.TG SHEATHED AND PHOSPHATED ADJUSTABLE WRENCHES W Strength to ISO 6787 DIN 3117 NF E 74-324 -ASME B 107.8 m-1966 (US nat.std Contoured handle ensures increased ease of use. Easier to reach worm screw. Non-protruding moving jaw at maximum capacity Millimetre graduations for pre-setting jaw opening. Worm rotates counter-clockwise. Phosphated body fine-ground jaw faces. Sizes from 4" to 12". Patent applied for. Ergonomics F A mm B mm C mm D mm E mm F mm G mm H mm J mm K mm L mm M mm N mm D q 113A.4TG 13 13 34 11 185 95 45 5 95 6 116 655 65 75 113A.6TG 20 19 45 148 24 118 5 6 12 8 159 905 80 140 113A.8TG 27 24 615 185 31 135 65 9 145 10 209 123 109 310 113A.10TG 30 29 695 215 365 155 9 95 175 125 259 1575 140 510 113A.12TG 34 34 80 25 395 18 101 102 195 14 310 1895 1695 740 catalogue FACOM F05-143
