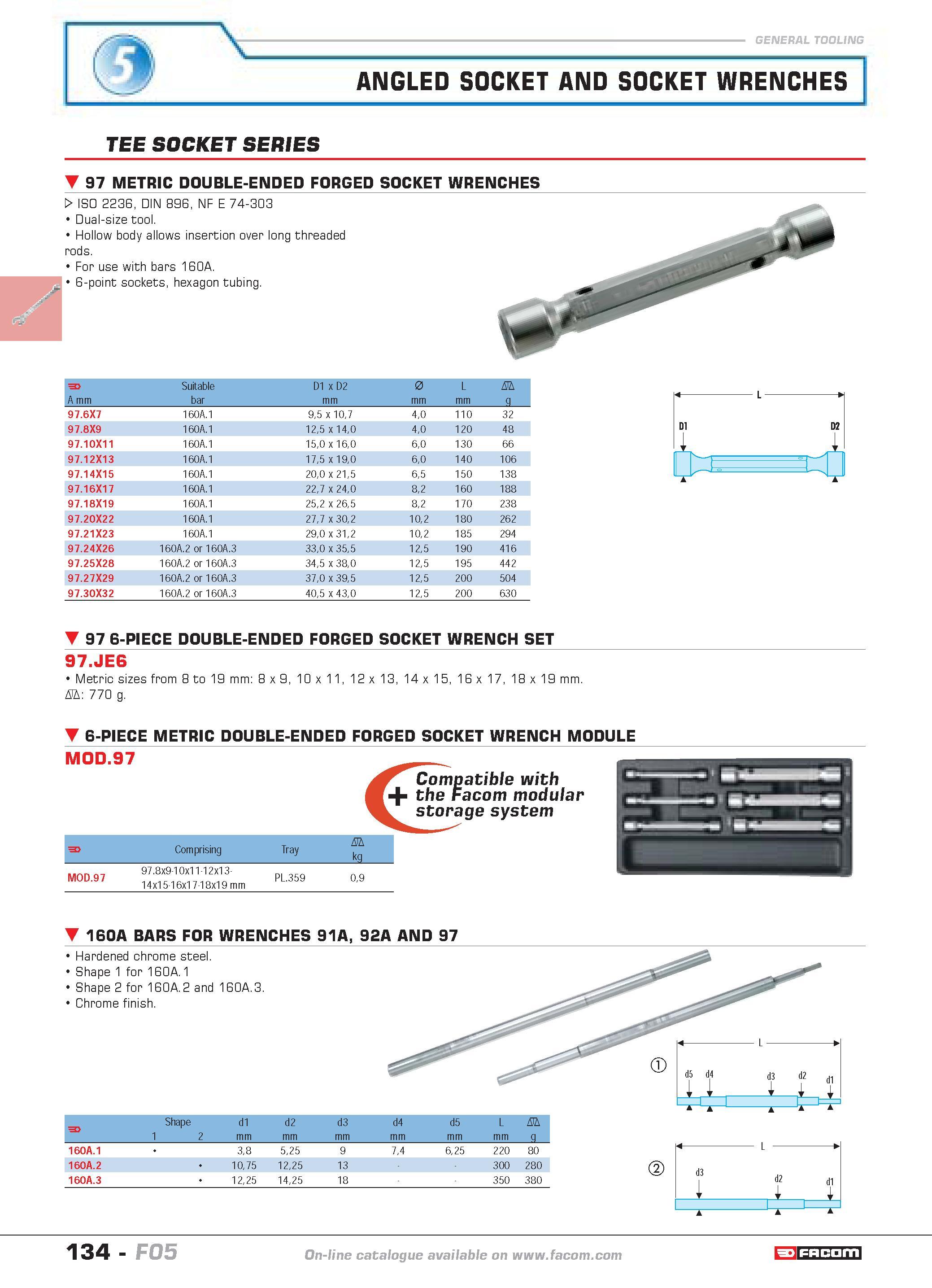

ANGLED SOCKET AND SOCKET WRENCHES TEE SOCKET SERIES 97 METRIC DOUBLE-ENDED FORGED SOCKET WRENCHES W ISO 2236 DIN 896 NF E 74-303 Dual-size tool. Hollow body allows insertion over long threaded rods. For use with bars 160A. 6-point sockets hexagon tubing. F A mm Suitable bar D1 x D2 mm 0 mm D g 97.6X7 160A.1 95 x 107 40 110 32 97.8X9 160A.1 125 x 140 40 120 48 97.10X11 160A.1 150 x 160 60 130 66 97.12X13 160A.1 175 x 190 60 140 106 97.14X15 160A.1 200 x 215 65 150 138 97.16X17 160A.1 227 x 240 82 160 188 97.18X19 160A.1 252 x 265 82 170 238 97.20X22 160A.1 277 x 302 102 180 262 97.21X23 160A.1 290 x 312 102 185 294 97.24X26 160A.2 or 160A.3 330 x 355 125 190 416 97.25X28 160A.2 or 160A.3 345 x 380 125 195 442 97.27X29 160A.2 or 160A.3 370 x 395 125 200 504 97.30X32 160A.2 or 160A.3 405 x 430 125 200 630 97 6-PIECE DOUBLE-ENDED FORGED SOCKET WRENCH SET 97.JE6 Metric sizes from 8 to 19 mm 8 x 9 10 x 11 12 x 13 14 x 15 16 x 17 18 x 19 mm. D 770 g. 6-PIECE METRIC DOUBLE-ENDED FORGED SOCKET WRENCH MODULE MOD.97 Compatible mith the Facom modular storage system F Comprising Tray D kg MOD.97 97.8x9-10x11-12x13- PL.359 14x15-16x17-18x19 mm 09 160A BARS FOR WRENCHES 91A 92A AND 97 Hardened chrome steel. 1 Shape 1 for 160A.1 1 Shape 2 for 160A.2 and 160A.3. Chrome finish. d5 d4 d3 d2 I 1 1 1 F Shape d1 d2 d3 d4 d5 L D 1 2 mm g 160A.1 38 525 9 74 625 220 80 160A.2 1075 1225 13 300 280 160A.3 1225 1425 18 350 380 L d3 d2 d1 i I 1 1 :ii 134 F05 catalogue catalogue FACOM F05
