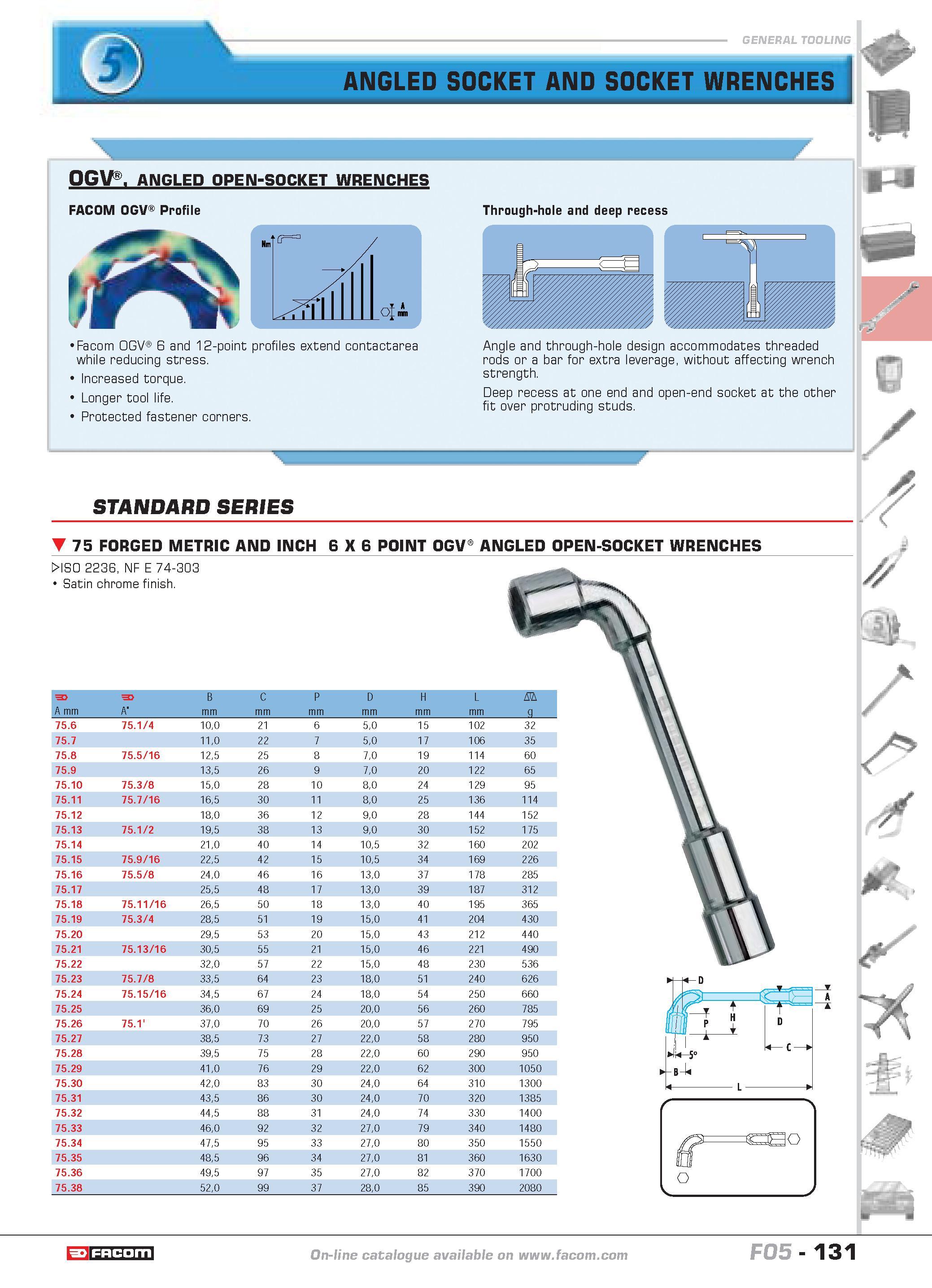

ANGLED SOCKET AND SOCKET WRENCHES OGV ANGLED OPEN-SOCKET WRENCHES FACOM OGV Profile Through-hole and deep recess Facom OGV 6 and 12-point profiles extend contactarea while reducing stress. Increased torque. Longer tool life. Protected fastener corners. Angle and through-hole design accommodates threaded rods or a bar for extra leverage without affecting wrench strength. Deep recess at one end and open-end socket at the other fit over protruding studs. STANDARD SERIES 75 FORGED METRIC AND INCH 6 X 6 POINT OGV0 ANGLED OPEN-SOCKET WRENCHES WISO 2236 NF E 74-303 Satin chrome finish. F A mm F A' B mm C mm P mm D mm H mm L mm D g 75.6 75.1 4 100 21 6 50 15 102 32 75.7 110 22 7 50 17 106 35 75.8 75.5 16 125 25 8 70 19 114 60 75.9 135 26 9 70 20 122 65 75.10 75.3 8 150 28 10 80 24 129 95 75.11 75.7 16 165 30 11 80 25 136 114 75.12 180 36 12 90 28 144 152 75.13 75.1 2 195 38 13 90 30 152 175 75.14 210 40 14 105 32 160 202 75.15 75.9 16 225 42 15 105 34 169 226 75.16 75.5 8 240 46 16 130 37 178 285 75.17 255 48 17 130 39 187 312 75.18 75.11 16 265 50 18 130 40 195 365 75.19 75.3 4 285 51 19 150 41 204 430 75.20 295 53 20 150 43 212 440 75.21 75.13 16 305 55 21 150 46 221 490 75.22 320 57 22 150 48 230 536 75.23 75.7 8 335 64 23 180 51 240 626 75.24 75.15 16 345 67 24 180 54 250 660 75.25 360 69 25 200 56 260 785 75.26 75.1' 370 70 26 200 57 270 795 75.27 385 73 27 220 58 280 950 75.28 395 75 28 220 60 290 950 75.29 410 76 29 220 62 300 1050 75.30 420 83 30 240 64 310 1300 75.31 435 86 30 240 70 320 1385 75.32 445 88 31 240 74 330 1400 75.33 460 92 32 270 79 340 1480 75.34 475 95 33 270 80 350 1550 75.35 485 96 34 270 81 360 1630 75.36 495 97 35 270 82 370 1700 75.38 520 99 37 280 85 390 2080 C catalogue FACOM F05- 131
