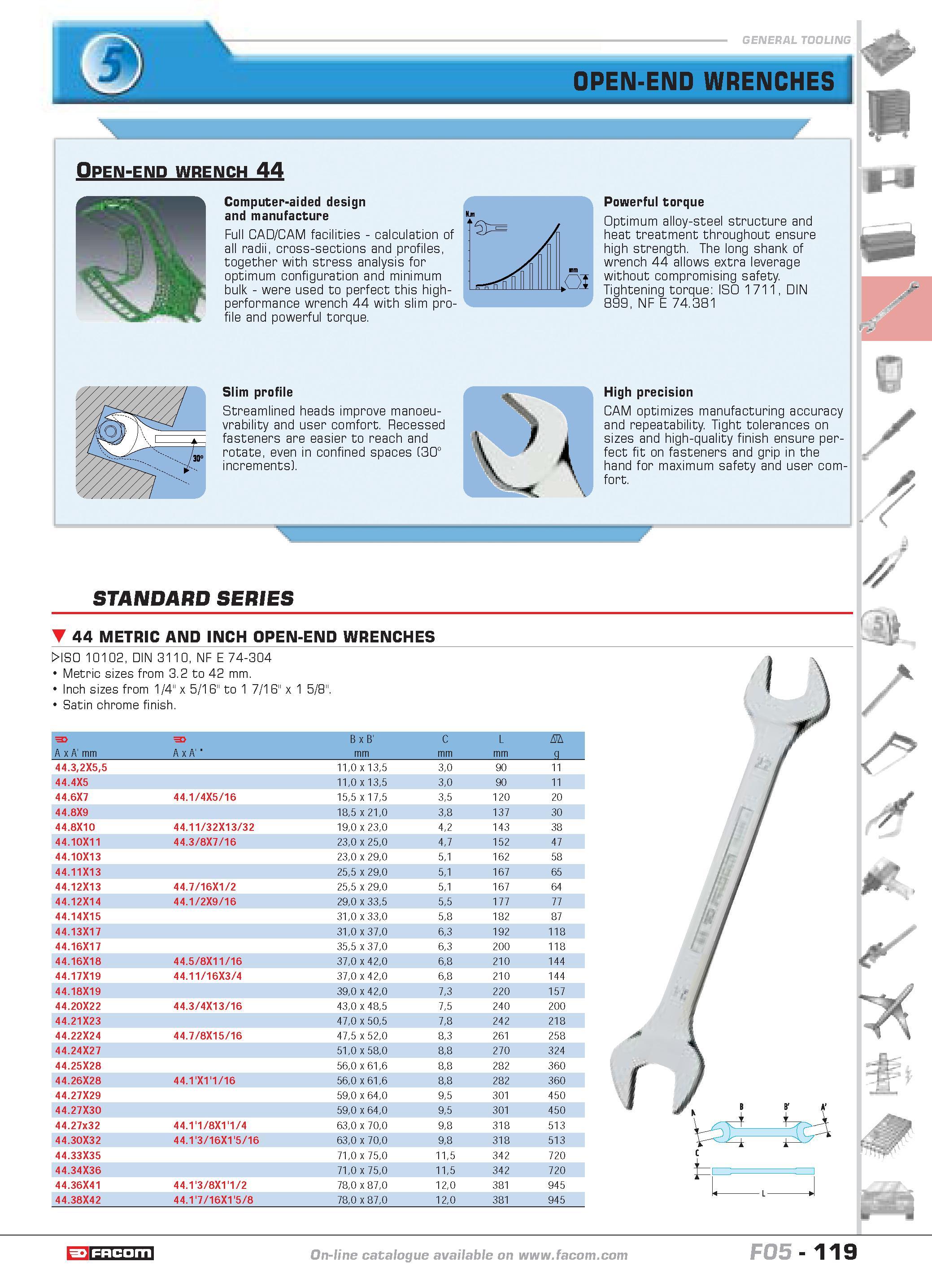

OPEN-END WRENCHES Open-end wrench 44 Computer-aided design and manufacture Full CAD CAM facilities calculation of all radii cross-sections and profiles together with stress analysis for optimum configuration and minimum bulk were used to perfect this high-performance wrench 44 with slim profile and powerful torque. Slim profile Streamlined heads improve manoeuvrability and user comfort. Recessed fasteners are easier to reach and rotate even in confined spaces (30 increments). Powerful torque Optimum alloy-steel structure and heat treatment throughout ensure high strength. The long shank of wrench 44 allows extra leverage without compromising safety Tightening torque ISO 1711 DIN 899 NF E 74.381 High precision CAM optimizes manufacturing accuracy and repeatability Tight tolerances on sizes and high-quality finish ensure perfect fit on fasteners and grip in the hand for maximum safety and user comfort. w STANDARD SERIES C f 44 METRIC AND INCH OPEN-END WRENCHES WISO 10102 DIN 3110 NF E 74-304 Metric sizes from 3.2 to 42 mm. Inch sizes from 1/4" x 5 16" to 1 7 16" x 1 5 8". Satin chrome finish. F A x A' mm F A x A' B x B' mm C mm L mm D g 44.32X55 110 x 135 30 90 11 44.4X5 110 x 135 30 90 11 44.6X7 44.1 4X5 16 155 x 175 35 120 20 44.8X9 185 x 210 38 137 30 44.8X10 44.11 32X13 32 190 x 230 42 143 38 44.10X11 44.3 8X7 16 230 x 250 47 152 47 44.10X13 230 x 290 51 162 58 44.11X13 255 x 290 51 167 65 44.12X13 44.7 16X1 2 255 x 290 51 167 64 44.12X14 44.1 2X9 16 290 x 335 55 177 77 44.14X15 310 x 330 58 182 87 44.13X17 310 x 370 63 192 118 44.16X17 355 x 370 63 200 118 44.16X18 44.5 8X11 16 370 x 420 68 210 144 44.17X19 44.11 16X3 4 370 x 420 68 210 144 44.18X19 390 x 420 73 220 157 44.20X22 44.3 4X13 16 430 x 485 75 240 200 44.21X23 470 x 505 78 242 218 44.22X24 44.7 8X15 16 475 x 520 83 261 258 44.24X27 510 x 580 88 270 324 44.25X28 560 x 616 88 282 360 44.26X28 44.1'X1'1 16 560 x 616 88 282 360 44.27X29 590 x 640 95 301 450 44.27X30 590 x 640 95 301 450 44.27x32 44.1'1 8X1'1 4 630 x 700 98 318 513 44.30X32 44.1'3 16X1'5 16 630 x 700 98 318 513 44.33X35 710 x 750 115 342 720 44.34X36 710 x 750 115 342 720 44.36X41 44.1'3 8X1'1 2 780 x 870 120 381 945 44.38X42 44.1'7 16X1'5 8 780 x 870 120 381 945 catalogue FACOM F05-119
