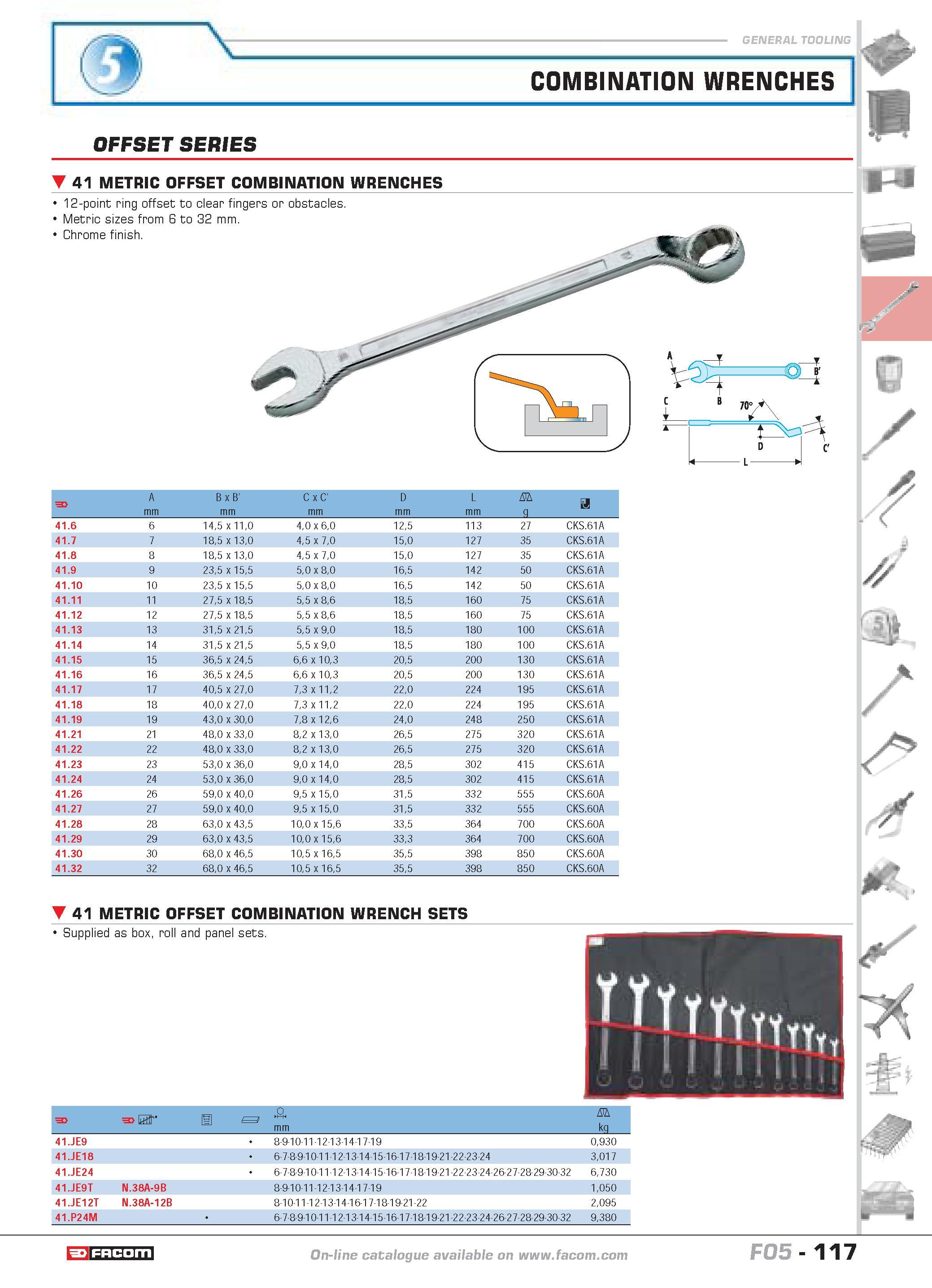

COMBINATION WRENCHES OFFSET SERIES 41 METRIC OFFSET COMBINATION WRENCHES 12-point ring offset to clear fingers or obstacles. Metric sizes from 6 to 32 mm. Chrome finish. F A mm B x B' mm C x C' mm D mm L mm D g k 41.6 6 145 x 110 40 x 60 125 113 27 CKS.61A 41.7 7 185 x 130 45 x 70 150 127 35 CKS.61A 41.8 8 185 x 130 45 x 70 150 127 35 CKS.61A 41.9 9 235 x 155 50 x 80 165 142 50 CKS.61A 41.10 10 235 x 155 50 x 80 165 142 50 CKS.61A 41.11 11 275 x 185 55 x 86 185 160 75 CKS.61A 41.12 12 275 x 185 55 x 86 185 160 75 CKS.61A 41.13 13 315 x 215 55 x 90 185 180 100 CKS.61A 41.14 14 315 x 215 55 x 90 185 180 100 CKS.61A 41.15 15 365 x 245 66 x 103 205 200 130 CKS.61A 41.16 16 365 x 245 66 x 103 205 200 130 CKS.61A 41.17 17 405 x 270 73 x 112 220 224 195 CKS.61A 41.18 18 400 x 270 73 x 112 220 224 195 CKS.61A 41.19 19 430 x 300 78 x 126 240 248 250 CKS.61A 41.21 21 480 x 330 82 x 130 265 275 320 CKS.61A 41.22 22 480 x 330 82 x 130 265 275 320 CKS.61A 41.23 23 530 x 360 90 x 140 285 302 415 CKS.61A 41.24 24 530 x 360 90 x 140 285 302 415 CKS.61A 41.26 26 590 x 400 95 x 150 315 332 555 CKS.60A 41.27 27 590 x 400 95 x 150 315 332 555 CKS.60A 41.28 28 630 x 435 100 x 156 335 364 700 CKS.60A 41.29 29 630 x 435 100 x 156 333 364 700 CKS.60A 41.30 30 680 x 465 105 x 165 355 398 850 CKS.60A 41.32 32 680 x 465 105 x 165 355 398 850 CKS.60A 41 METRIC OFFSET COMBINATION WRENCH SETS Supplied as box roll and panel sets. mm Hit F U' 3 mm 8-9-10-11-12-13-14-17-19 6-7-8-9-10-11-12-13-14-15-16-17-18-19-21-22-23-24 8-9-10-11-12-13-14-17-19 JE12T P24M D A 6-7-8-9-10-11-12-13-14-15-16-17-18-19-21-22-23-24-26-27-28-29-30-32 6730 8-10-11-12-13-14-16-17-18-19-21-22 6-7-8-9-10-11-12-13-14-15-16-17-18-19-21-22-23-24-26-27-28-29-30-32 2095 9380 F 41.JE9 0930 3.01 N.38A-9B N.38A-12B Fll d 1 -M m catalogue FACOM F05-117
