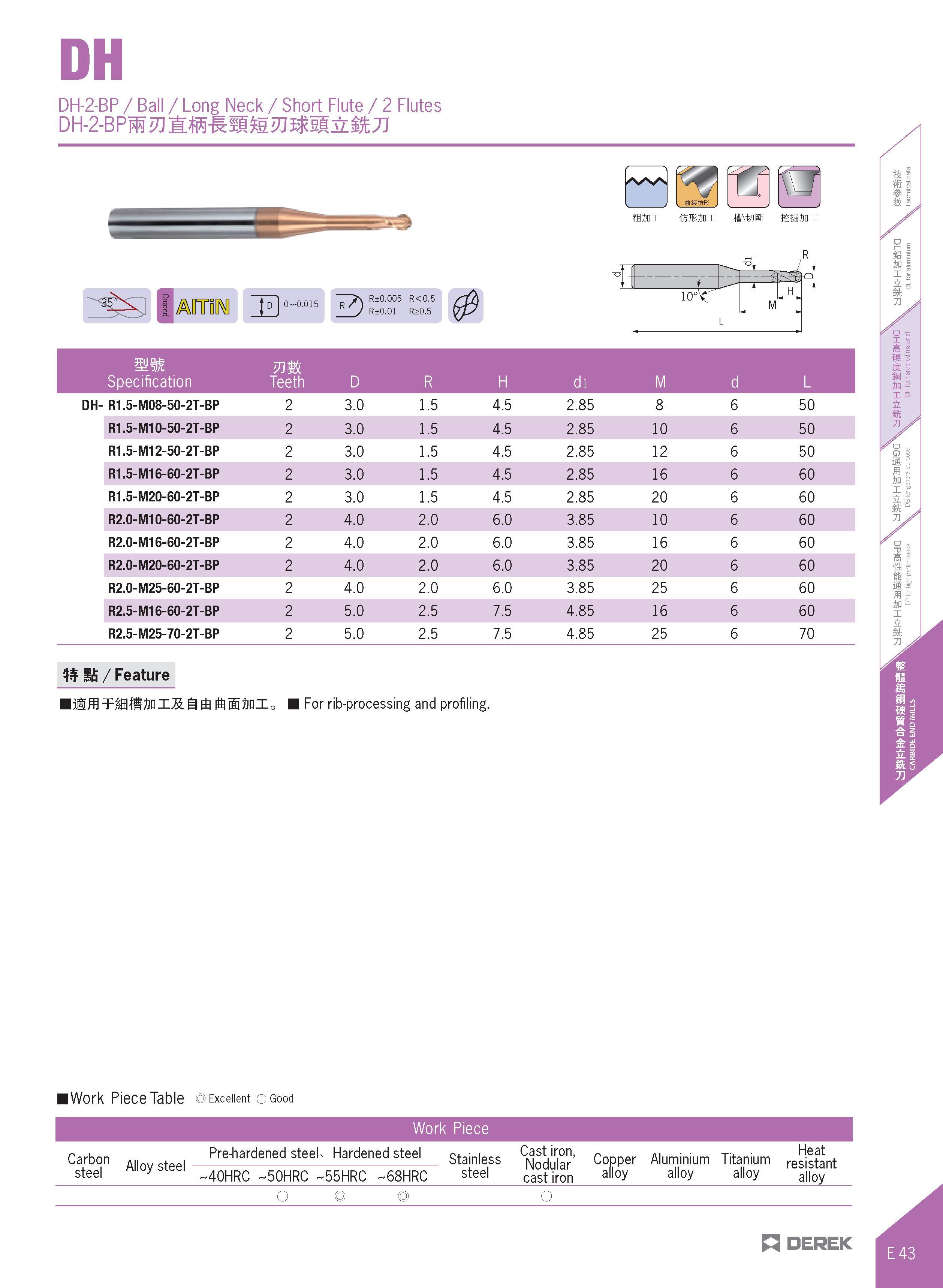

DH-2-BP / Ball / Long Neck / Short Flute / 2 Flutes Mm mmi- tSSJrai 33 77) R±0.005 R<0.5 R±0.01 R>0.5 mm Specification mm Teeth D R H di d L DH- R1.5-M08-50-2T-BP 2 3.0 1.5 4.5 2.85 8 6 50 R1.5-M10-50-2T-BP 2 3.0 1.5 4.5 2.85 10 6 50 R1.5-M12-50-2T-BP 2 3.0 1.5 4.5 2.85 12 6 50 R1.5-M16-60-2T-BP 2 3.0 1.5 4.5 2.85 16 6 60 R1.5-M20-60-2T-BP 2 3.0 1.5 4.5 2.85 20 6 60 R2.0-M10-60-2T-BP 2 4.0 2.0 6.0 3.85 10 6 60 R2.0-M16-60-2T-BP 2 4.0 2.0 6.0 3.85 16 6 60 R2.0-M20-60-2T-BP 2 4.0 2.0 6.0 3.85 20 6 60 R2.0-M25-60-2T-BP 2 4.0 2.0 6.0 3.85 25 6 60 R2.5-M16-60-2T-BP 2 5.0 2.5 7.5 4.85 16 6 60 R2.5-M25-70-2T-BP 2 5.0 2.5 7.5 4.85 25 6 70 S IS / Feature fi Ani0 For rib-processing and profiling. iWork Piece Table 0 Excellent o Good j Work Piece f CjS" Alio, steel Pre-hardened steeU Hardened steel Stainless Cast iron, Nodular cast iron Copper Aluminium Titanium Heat resistant alloy -40HRC -50HRC -55HRC -68HRC steel alloy alloy alloy o O n DEREK
