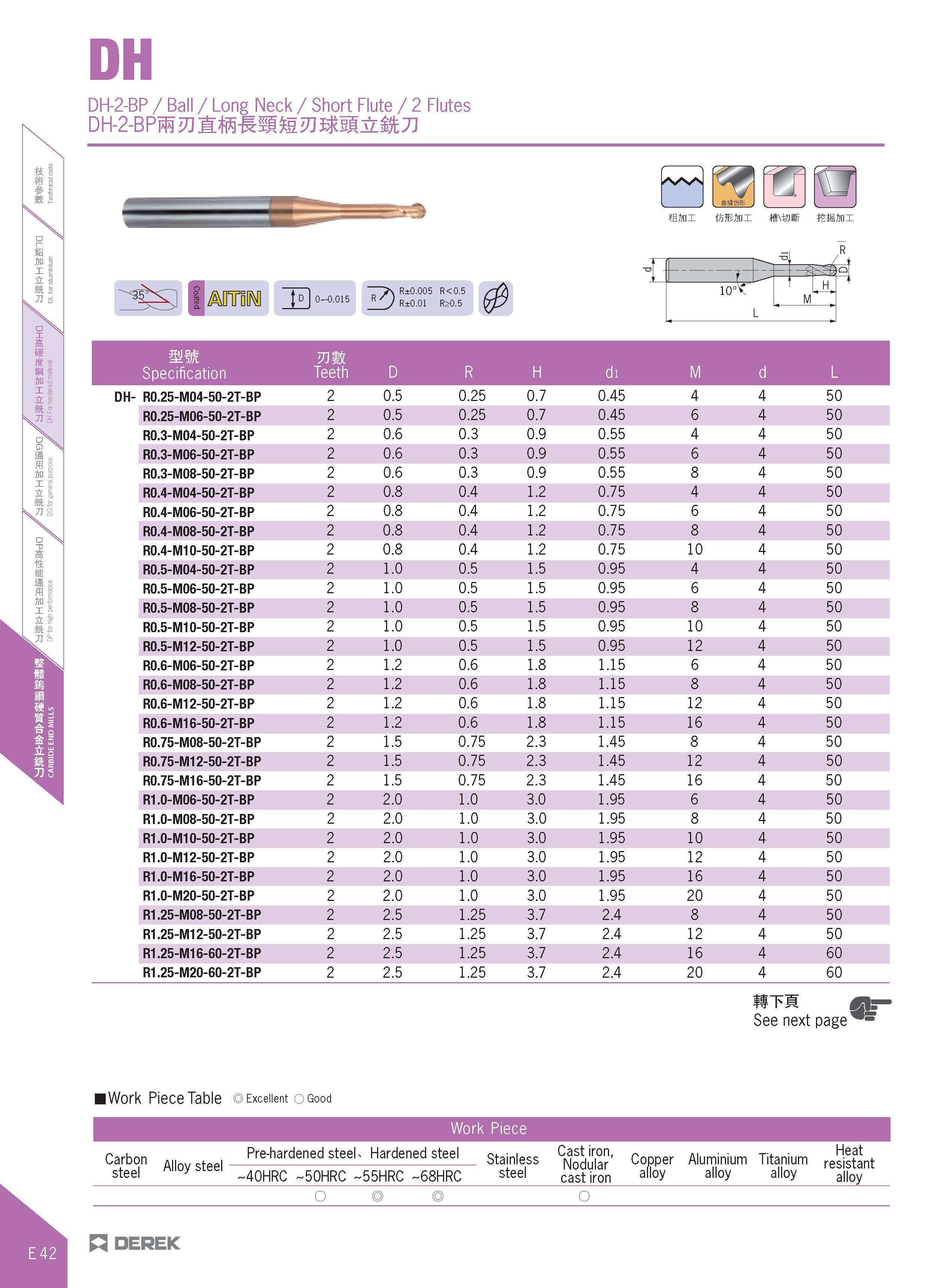

DH-2-BP / Ball / Long Neck / Short Flute / 2 Flutes FSIfSTO Mm mmi- tSSJrai MYM 77) R±0.005 R<0.5 R±0.01 R>0.5 10 £ MW Specification mm Teeth D R H di d L DH- R0.25-M04-50-2T-BP 2 0.5 0.25 0.7 0.45 4 4 50 R0.25-M06-50-2T-BP 2 0.5 0.25 0.7 0.45 6 4 50 R0.3-M04-50-2T-BP 2 0.6 0.3 0.9 0.55 4 4 50 R0.3-M06-50-2T-BP 2 0.6 0.3 0.9 0.55 6 4 50 R0.3-M08-50-2T-BP 2 0.6 0.3 0.9 0.55 8 4 50 R0.4-M04-50-2T-BP 2 0.8 0.4 1.2 0.75 4 4 50 R0.4-M06-50-2T-BP 2 0.8 0.4 1.2 0.75 6 4 50 R0.4-M08-50-2T-BP 2 0.8 0.4 1.2 0.75 8 4 50 R0.4-M10-50-2T-BP 2 0.8 0.4 1.2 0.75 10 4 50 R0.5-M04-50-2T-BP 2 1.0 0.5 1.5 0.95 4 4 50 R0.5-M06-50-2T-BP 2 1.0 0.5 1.5 0.95 6 4 50 R0.5-M08-50-2T-BP 2 1.0 0.5 1.5 0.95 8 4 50 R0.5-M10-50-2T-BP 2 1.0 0.5 1.5 0.95 10 4 50 R0.5-M12-50-2T-BP 2 1.0 0.5 1.5 0.95 12 4 50 R0.6-M06-50-2T-BP 2 1.2 0.6 1.8 1.15 6 4 50 R0.6-M08-50-2T-BP 2 1.2 0.6 1.8 1.15 8 4 50 R0.6-M12-50-2T-BP 2 1.2 0.6 1.8 1.15 12 4 50 R0.6-M16-50-2T-BP 2 1.2 0.6 1.8 1.15 16 4 50 R0.75-M08-50-2T-BP 2 1.5 0.75 2.3 1.45 8 4 50 R0.75-M12-50-2T-BP 2 1.5 0.75 2.3 1.45 12 4 50 R0.75-M16-50-2T-BP 2 1.5 0.75 2.3 1.45 16 4 50 R1.0-M06-50-2T-BP 2 2.0 1.0 3.0 1.95 6 4 50 R1.0-M08-50-2T-BP 2 2.0 1.0 3.0 1.95 8 4 50 R1.0-M10-50-2T-BP 2 2.0 1.0 3.0 1.95 10 i 4 50 R1.0-M12-50-2T-BP 2 2.0 1.0 3.0 1.95 12 4 50 R1.0-M16-50-2T-BP 2 2.0 1.0 3.0 1.95 16 4 50 R1.0-M20-50-2T-BP 2 2.0 1.0 3.0 1.95 20 i 4 50 R1.25-M08-50-2T-BP 2 2.5 1.25 3.7 2.4 8 4 50 R1.25-M12-50-2T-BP 2 2.5 1.25 3.7 2.4 12 4 50 R1.25-M16-60-2T-BP 2 2.5 1.25 3.7 2.4 16 4 60 R1.25-M20-60-2T-BP 2 2.5 1.25 3.7 2.4 20 i 4 60 See next page 1 I Work Piece Table 0 Excellent o Good j Work Piece f C Alloy steel- Pre-hardened steeU Hardened steel Stainless Cast iron, Nodular cast iron Copper Aluminium Titanium Heat resistant alloy -40HRC -50HRC -55HRC -68HRC steel alloy alloy alloy O O) O n DEREK
